- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ABC Machinery oil expeller machine
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
1970*700*780mm3
-
Weight:
-
680 KG
-
Marketing Type:
-
Factory Direct Sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainess Steel & Carbon Steel
-
Price:
-
Factory price manual oil expeller press
-
Working Principle:
-
Single screw oil expeller machine
-
Applications:
-
All plant seeds or nuts oil production line
-
Advantage:
-
High Efficiency & Superior Quality
-
Supplier Type:
-
Original Equipment Manufacturer
-
Raw material:
-
Mustard seed, coconut, palm kernel and more
-
Model Number:
-
YZS120 manual oil expeller press 180317
-
Certification:
-
ISO9001:2015 CE
Quick Details
-
Max Capacity:
-
6 ton/day
-
Production Capacity:
-
98%-100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ABC Machinery oil expeller machine
-
Voltage:
-
220V/380V/440V
-
Dimension(L*W*H):
-
1970*700*780mm3
-
Weight:
-
680 KG
-
Marketing Type:
-
Factory Direct Sale
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainess Steel & Carbon Steel
-
Price:
-
Factory price manual oil expeller press
-
Working Principle:
-
Single screw oil expeller machine
-
Applications:
-
All plant seeds or nuts oil production line
-
Advantage:
-
High Efficiency & Superior Quality
-
Supplier Type:
-
Original Equipment Manufacturer
-
Raw material:
-
Mustard seed, coconut, palm kernel and more
-
Model Number:
-
YZS120 manual oil expeller press 180317
-
Certification:
-
ISO9001:2015 CE
Cheapest price small hand oil press manual oil expeller press

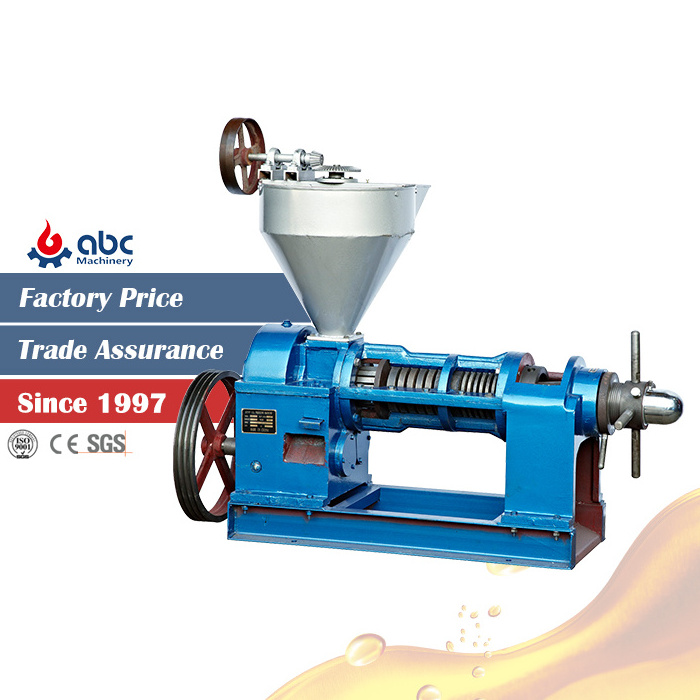

Main structure of manual oil expeller press (YZS120)
YZS120 manual oil expeller press is mainly composed of is a popular type of cold oil press machine, mainly composed of feeder, gearbox, pressing cage and oil receiver. Some manual oil expeller press are equipped with electric motors as required. Pressing chamber is the key part which contains a pressing cage and a screw shaft rotating in the cage. For best oil exepllering outcome, the pressing cage cover and oil drip pan are built with stainless steel.
Functional characteristics of YZS120 manual oil expeller press
Click Now for Catalogs & Factory Price !
Technical data of YZS-120 manual oil expeller press
| Model | Capacity(T/24H) | Power(KW) | Dimensions(MM) | Weight(KG) |
| YZS68 | 0.8-1 | 5.5 | 920*390*750 | 150 |
| YZS85 | 2-3 | 5.5 | 1540*540*620 | 370 |
| YZS90 | 4 | 7.5 | 1540*510*680 | 370 |
| YZS95 | 5 | 7.5 | 1920*550*765 | 480 |
| YZS100 | 4-5 | 11 | 1910*610*765 | 550 |
| YZS105 | 5-7 | 15 | 2140*550*765 | 580 |
| YZS120 | 6 | 15 | 1970*700*780 | 680 |
| YZS128 | 7-9 | 15 | 2010*600*1170 | 685 |
| YZS130 | 9-12 | 18.5 | 2320 *700 *780 | 820 |
| YZS165 | 15-20 | 22-30 | 2290*750*1020 | 1600 |
We offer different manual oil expeller press models to meet customers' requirements. Above is the main technical data and specifications. Here always has one model for you!
Click Now for Catalogs & Factory Price !
Small oil production line with manual oil expeller press
Small oil production line should not require a large space. Depending on the raw material you are using, you will either need a dehullling machine (removing hulls from seeds) or a milling machine. This is because seeds, like sunflower, groundnut, need to be dehulled before being crushed and for right oil extracting.
The cleaning machine is also necessary for remove foreign impurities and a cooker helps in distilling out the liquid oil from its solvent mixture. All the axuliliary equipment is for maximize the final oil output. As the core part of oil production, manual oil expeller press squeezes oil out from nuts or seeds effectively. Get a cost effective and high quality manual oil expeller press is important. Below is the YZS120 manual oil expeller press one of our clients ordered for rapeseeds. It is automatic cold pressed manual oil expeller press.
Click Now for Catalogs & Factory Price !
What is raw material manual oil expeller press can process
YZS series
manual oil expeller press
can process a wide range of plant nuts and seeds to extract high quality crude oil. Those raw materials include groundnut, sesame, almond, walnut, moringa seed, rapeseeds, cottonseeds, prickly pear seed, niger seed, black seeds, soybeans, rice bran, corn germ, mustard seeds, sunflower seeds and more. Compared to other oil pressing machine, our manual oil expeller press ensure efficient oil extracting, and is suitable for both hot and cold pressing. You are welcomed to inquiry the latest price about YZS manual oil expeller press.
Click Now for Catalogs & Factory Price !
Complete turnkey manual oil expeller press processing projects
ABC Machinery is one of world's leading manufacturer and supplier of oil processing machinery as well as related processing plants from
1TPD TO 500TPD
. We support customized services according to the specific OIL making requirements of our clients. We engaged in designing, installing and exporting a range of oil mill plants since 1990, and so far we have successfully set up a great number of oil production lines domestic and overseas. For small scale oil production projects, we suggest adopts our manual oil expeller press since it can achieve the oil production functions of small capacity, but requires low investment cost. If you are interested in
setting up oil production line with manual oil expeller press
, we are your professional partner!
Click Now for Catalogs & Factory Price !
Small mustard manual oil expeller press packing and shipment
This is the packing details of
mustard oil expeller
machine at our factory. Before leaving our factory, the mustard manual oil expeller press you ordered will be strictly inspected to ensure no quality or other problems, then it will be packed with plastic sheet to prevent moisture and plywood cases to protect it during the whole shipement process. Certainly, if you have any requirements about the packing or shipment, we will try our best to meet your needs.
Secrets behind our oil expeller machin price
Click Now for Catalogs & Factory Price !
Customer visits for mustard oil expeller or other expeller machine
If our customers are interested in our products, mustard manual oil expeller press or other manual oil expeller press , we will bring them to our workshops and show them the detailed oil processing technology and manual oil expeller press models. They will check the real machine and we will have face to face communications!
