Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSMFDO-080
-
Product Name:
-

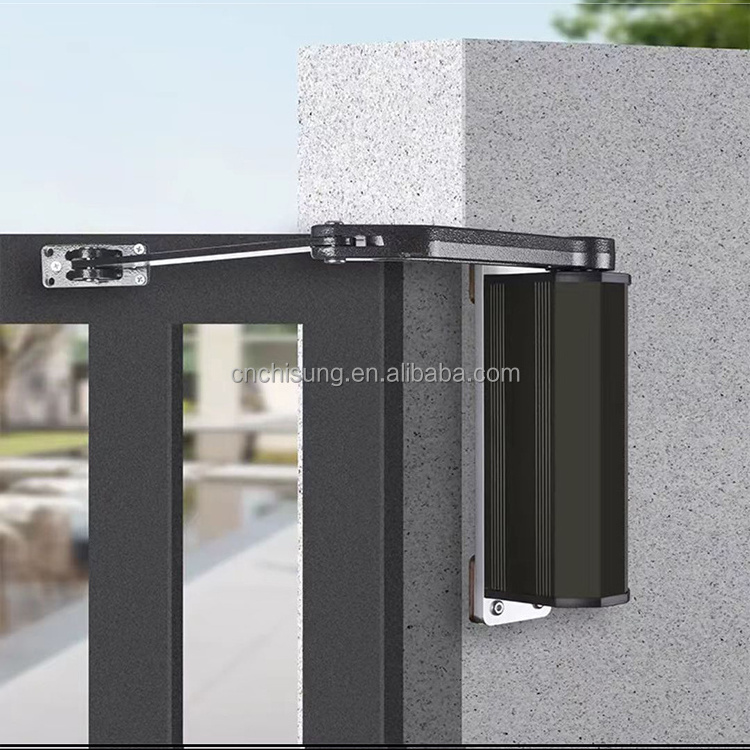

CSSMFDO-080 Side-mounted Flat Door Opener
-
Usage:
-
Swing door :Width≤1600mm,Weight≤250Kg
-
Opening Angle:
-
45-150°
-
Power Requirement:
-
DC24V,7.5A
-
Rated Power:
-
45W
-
Material:
-
Aluminum alloy
-
Color:
-
Black Silver Gray Gold (customizable)
-
Operating ambient temperature:
-
-20~+45℃
-
Remote Control distance:
-
>15m
-
Weight:
-
8.2kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Chisung
-
Model Number:
-
CSSMFDO-080
-
Product Name:
-
CSSMFDO-080 Side-mounted Flat Door Opener
-
Usage:
-
Swing door :Width≤1600mm,Weight≤250Kg
-
Opening Angle:
-
45-150°
-
Power Requirement:
-
DC24V,7.5A
-
Rated Power:
-
45W
-
Material:
-
Aluminum alloy
-
Color:
-
Black Silver Gray Gold (customizable)
-
Operating ambient temperature:
-
-20~+45℃
-
Remote Control distance:
-
>15m
-
Weight:
-
8.2kg
Specification
|
Model
|
CSSMFDO-080
|
|
Power input voltage
|
DC24V-150W
|
|
Motor power
|
45W
|
|
Door lock control voltage output
|
DC12V
|
|
Light control voltage output
|
DC24V
|
|
Remote Control Distance
|
>15m
|
|
Motor speed ratio
|
1:200
|
|
Operating ambient temperature
|
-20~+45℃
|
|
Weight
|
About 8.2KG
|
|
Package Size
|
Length 390mm×width 300mm×thickness 100mm
|
|
Service Period
|
1 Year
|
Product Description
Features
A.Compact
: especially suitable for pedestrian access doors and can be installed on small 8cm wide door posts.
B.Safety
: non-reversible motor, reverse arm, built-in shutdown limit (when using full crank arm).
C.Practical
: The small curved arm is suitable for installation in a variety of special conditions, such as small door posts or very small installation space.
D.Fast
: no waiting, opens or closes in as little as 3 seconds (ideally, 90° with a shortened curved arm).
E.Soft start and soft stop function
protects motor gears to a large extent and extends product life.
Packing List
1.D
oor opener body*1pc
2.Door opener crank arm
*
1set
3.Screw pack
*1
: M8 * 80 expanded wire
*
4pcs;M8 * 18 hex socket screws
*
4pcs;Allen wrench
*
1pc;φ 4.8 * 25 cross dovetail wire
*
25pcs;Slotted screwdriver
*
1pc
4.1: 1 installation sticker
*
1pcs
5.Instructions
*
1pc
6.Test report
*
1pc
7.Warranty card+certificate of conformity
*
1pc
8.Remote control
*
2pcs
9.24V DC power supply
*
1pc
10.Metal surface installation conversion board
*
2pc
11.Warning labels
*
2pcs
12.φ 25 hole plug
*
1pc
Application
Automatic door opener is designed for automatic control of single or double iron doors, villa doors, glass doors, electric small doors, pedestrian passage swing doors, which can be controlled automatically by access control equipment, face recognition equipment, cell phones, license plate recognition equipment for switching. Drive motor adopts new DC brushless motor drive, sufficient and smooth strength, the controller adopts military motherboard process, more humane operation experience.
