*Available body materials: PVC/PP/PVDF
*Available seal materials : EPDM and FPM
*Available size: from 1/2" to 2" size
*
100 % pressure tested at our factory
*
Other Materials available (MOQ
apply)
*Standard: JIS/DIN/BSPT/ANSI/NPT

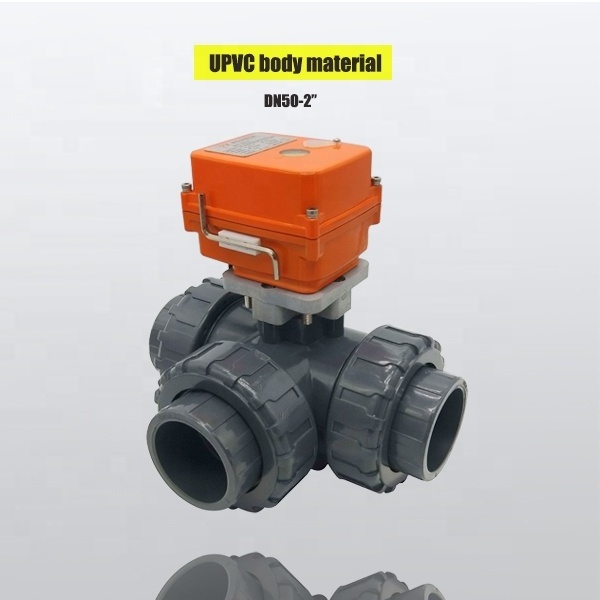

*Connect with Pneumatic or Electric Actuators directly
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
YDKL
-
Standard of Socket Way:
-
DIN JIS ANSI
-
Standard of Threaded Way:
-
BSPT NPT
-
Body material:
-
UPVC
-
Ball material:
-
PVC
-
Handle material:
-
PVC
-
Seat material:
-
PTFE
-
O-ring material:
-
EPDM
-
Connection:
-
Socket/Threaded
-
Certificate:
-
ISO9001/ISO14001
-
Product name:
-
YDKL OEM 1/2 3 way ball mixing angle valves
Quick Details
-
Port Size:
-
DN50-2"
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
KLBVQ
-
Brand Name:
-
YDKL
-
Standard of Socket Way:
-
DIN JIS ANSI
-
Standard of Threaded Way:
-
BSPT NPT
-
Body material:
-
UPVC
-
Ball material:
-
PVC
-
Handle material:
-
PVC
-
Seat material:
-
PTFE
-
O-ring material:
-
EPDM
-
Connection:
-
Socket/Threaded
-
Certificate:
-
ISO9001/ISO14001
-
Product name:
-
YDKL OEM 1/2 3 way ball mixing angle valves
Design Advantages:
1. Extra-large diameter shaft is reinforced by additional resin and eliminates stem breaks.
2. Concentric machined ball.
3. Union ends for ease of piping and removal.
4. Machined end connector ensure the precision of size.
5. Stainless insert of shaft are more durable and easy to connect with actuator directly.
|
Normal size
|
Mean outside diameter mm
|
|
|
|
|||
|
|
B.S.
|
ANSI.
|
JIS
|
DIN
|
|||
|
1/2''
|
21.2
|
21.34
|
22.00
|
20
|
|||
|
3/4''
|
26.6
|
26.67
|
26.00
|
25
|
|||
|
1''
|
33.4
|
33.40
|
32.00
|
32
|
|||
|
1-1/4''
|
42.1
|
42.16
|
38.00
|
40
|
|||
|
1-1/2''
|
48.1
|
48.26
|
48.00
|
50
|
|||
|
2''
|
60.2
|
60.28
|
60.00
|
63
|
|||
|
2-1/2''
|
75.2
|
73.03
|
76.00
|
75
|
|||
|
3''
|
88.7
|
88.90
|
89.00
|
90
|
|||
|
4''
|
114.1
|
114.3
|
114
|
110
|
|||
|
5''
|
140
|
-
|
140
|
140
|
|||
|
6''
|
160
|
168.3
|
165
|
160
|
|||
|
8''
|
225
|
219.1
|
216
|
200
|
|||
|
10''
|
200
|
273.1
|
267
|
250
|
|||
|
12''
|
315
|
223.9
|
318
|
315
|
|||
Q:Are you trading company or manufacturer ?
A:We are professional manufacturer,specialized in VALVES for many years.
Q:How about OEM or ODM?
A:YDKL have experienced technical team,which can design the valve according to customized request.
Q:How long is your delivery time?
A:Generally,It is 7 days for the conventional product in stock,otherwise it is 20-30 days after deposit.Urgent order can be negotiable.
Q:Do you provide samples ?
A:Absolutely! But we consider to receive small amount of sample fee as a sign of sincerely cooperation and will compensate it in products for your future order.
Q:Can I have my own Logo on the product?
A:Yes, sure,if your quantity is considerable,we would like to engraved your logo in the products.
