- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

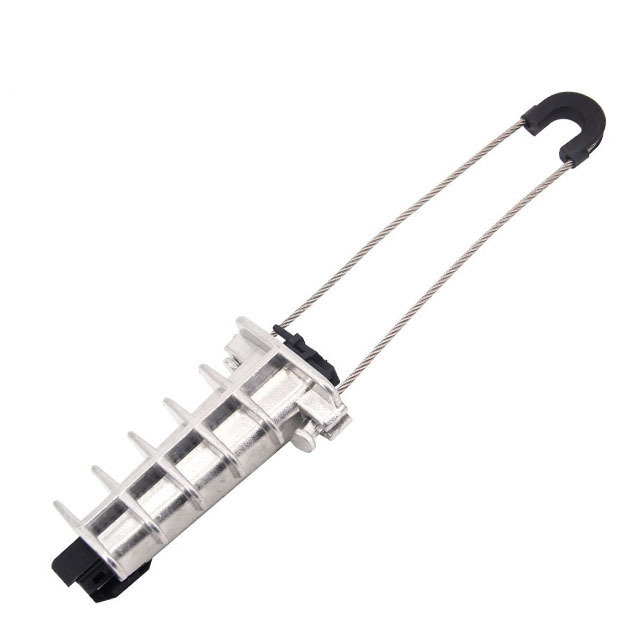

ADSS aerial cable anchor strain clamps wedge-shaped tension clamp
-
Application:
-
Fiber Cable Aerial Cabling Project
-
Type:
-
AL Alloy Type
-
Material:
-
Aluminum alloy +Polymer (Nylon + Fiberglass)+ steel
-
Lifetime:
-
Over 25 years
-
Cable OD Apply:
-
8mm~20mm ( optional)
-
PAL series:
-
PAL500, PAL1000, PAL1500,PAL2000, PAL2500 optional
-
Breaking Load:
-
4KN ~20KN ( optional)
-
Technology:
-
Forging&Machining
-
Certificate:
-
ISO CE RoHS
Quick Details
-
Brand Name:
-
MICROLINK or OEM
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ML-PAL1500
-
Product name:
-
ADSS aerial cable anchor strain clamps wedge-shaped tension clamp
-
Application:
-
Fiber Cable Aerial Cabling Project
-
Type:
-
AL Alloy Type
-
Material:
-
Aluminum alloy +Polymer (Nylon + Fiberglass)+ steel
-
Lifetime:
-
Over 25 years
-
Cable OD Apply:
-
8mm~20mm ( optional)
-
PAL series:
-
PAL500, PAL1000, PAL1500,PAL2000, PAL2500 optional
-
Breaking Load:
-
4KN ~20KN ( optional)
-
Technology:
-
Forging&Machining
-
Certificate:
-
ISO CE RoHS
PAL500 PAL1000 PAL1500 PAL2000 PAL2500 ADSS ABC aerial cable anchor strain clamp wedge-shaped tension clamp PA1500 PA2000
Product Description
Description
PAL series anchor tension clamps are applied for ADSS fiber optic cable/ABC cable fixing on pole(span 100m),which
have function of automatic conical tightening and opening bail which is easy to be installed to save time. Al alloy or
polymer body can bear high tension and perform long lifetime.
Feature
Feature
High mechanical strength performance
Al alloy body and steel bail to bear high tension strength
Good anti-corrosion performance
Abrasion and wear resistant
Weather-proof nylon+fiberglass P
olymer
wedges for serving long lifetime
Smooth surface and round smooth corner to achieve seiko quality
Removable,m
aintenance-free,easy installation
Application
FTTH fiber optic aerial cable/ ABC cable fittings
DATESHEET
|
Series
|
Cable OD Apply
|
Breaking Load
|
Materials
|
Span (max.)
|
Packing Weight
|
|
PAL-500
|
8mm~11mm
|
4KN
|
Al alloy Body+ Polyer Wedge+ Steel Bail
|
100M
|
21KGS/60pcs
|
|
PAL1000
|
8mm~11mm
|
10KN
|
Al alloy Body+ Polyer Wedge+ Steel Bail
|
100M
|
22KGS/50pcs
|
|
PAL1500
|
10mm~14mm
|
15KN
|
Al alloy Body+ Polyer Wedge+ Steel Bail
|
100M
|
23KGS/50pcs
|
|
PAL2000
|
14mm~16mm
|
15KN
|
Al alloy Body+ Polyer Wedge+ Steel Bail
|
100M
|
24KGS/50PCS
|
|
PAL2500
|
16mm~20mm
|
20KN
|
Al alloy Body+ Polyer Wedge+ Steel Bail
|
100M
|
24KGS/50PCS
|
