Name: Sealing and cutting unite
Feeding : Double feeding
Max feeding diameter: 600mm
Control : Computer system
Machine can be for printed bag and no-printed bag two lines ,double electric-eyes ,double electric-follow device
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Plastic Package
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruixin
-
Model Number:
-
RFHQ
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*1400*1600mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
Shopping Bag Machine Manufacture
-
Speed:
-
240-260pcs/min
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type:
-
Hot sealing and Hot cutting
-
Raw Material:
-
HDPE/Recycling Materil /Biodegradable Film
-
Sevor Motor:
-
Double servo Motor
-
Servo motor Brand:
-
Yasakawa From Janpan
-
Control:
-
Computer System
-
Color:
-
Red Or Blue
-
Capacity:
-
8-10Kw /H
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Applicable Industries:
-
Plastic Package
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ruixin
-
Model Number:
-
RFHQ
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*1400*1600mm
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
Shopping Bag Machine Manufacture
-
Speed:
-
240-260pcs/min
-
Application:
-
Tshirt bag /Vest bag/Shopping bag
-
Processing Type:
-
Hot sealing and Hot cutting
-
Raw Material:
-
HDPE/Recycling Materil /Biodegradable Film
-
Sevor Motor:
-
Double servo Motor
-
Servo motor Brand:
-
Yasakawa From Janpan
-
Control:
-
Computer System
-
Color:
-
Red Or Blue
-
Capacity:
-
8-10Kw /H
Product Description

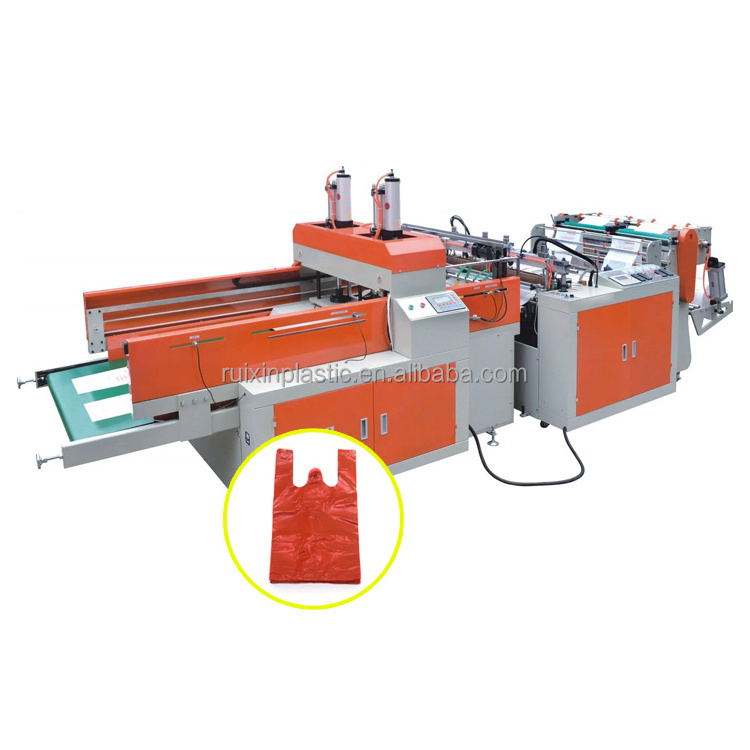

1. Factory Sale Lower Price PE Shopping Bag Machine Manufacture The Plastic Bag Making Machine is special for making unprinted or printed T-shirt bag.The machine finish the feeding, sealing, cutting, punching and transporting only in one process.
2.This Bag Making machine is equipped with computer to set the bag length and batch etc.to make the bag automaticlly,the machine is with photocell, automatic material feeding device, automatic constant temperature control device, electric-follow removing automatic counting and alarm device etc.It's easy operation, stable performance and with high producing speed. This machine is the best machine to make T-shirt bag if you want to save labor.
|
Model
|
RFHQ-350x2
|
RFHQ-450x2
|
|
Bag Width
|
50-320mm
|
50-420mm
|
|
Bag Length
|
100-680mm
|
100-680mm
|
|
Bag thickness
|
0.005-0.15mm
|
0.005-0.15mm
|
|
Making Bag Speed
|
450-500pecs /min
|
450-500pecs /min
|
|
Main motor
|
1.5Kw
|
2.2Kw
|
|
Capacity
|
5kw/h
|
8Kw/h
|
|
Machine size
|
5.5 * 1.8*1.9m
|
5.5*2.1*1.9m
|
Main Features
1) it adopts computer to control, inverter motor to adjust the speed, and it has many advantages of top position stopping, steady function, accurate positioning etc.
2) It has 4 automatic photo electric feeding system, and one tracking photocell. automatic temperature control system, electric static eliminating system, automatic counting system and alarm system.
3) It has automatic conveyor system, which conveys the sealed and cut bags.
4) It is hot sealing and cold cutting. More strong sealing and choose Double servo motor to control accurate
Certifications
Detailed Images
Machine Unite
Automatic Punching Unite
Name:
Full automatic Punching T shape
Automatic: auto convey
Punching Device : Pneumatic cylinder system
Punching Plate : 2sets with high quality
Punching Mould : T shape mould 4sets
Convey Control : Computer control automtaically
Machine Electric component
Main motor :1.5kw with inverter system
Main motor Brand : China Famous- Ruiyu Brand
Inverter Brand : China Famous -DOVOL brand
Low voltage electric Brand : CHNT Brand
Servo motor and Drive 2 sets
Bearing : NSK brand ,best quality
Key tips and common faults
1,
The key tips
A. The ground wire must be connected before starting the machine
B. Check if the stepper motor aviation plug is tightened before powering on.
C. Check if the switch disk is loose.
D. If the voltage is unstable or power failure, turn off the main power supply and the microcomputer power supply, and then turn on the power after the voltage is stable.
E. The lubrication of the mechanical transmission should be regularly lubricated to maintain a good activity state. The shaft of the hot knife is pulled on both sides of the knife. Each shift needs to be refueled once.
F. When refueling the machine, the oil should not leak into the drive, and the drive must ensure that the air passage is unblocked.
G. Do not touch any wire with your hand or body while the power is on.
H. When the microcomputer is faulty, the user should contact the factory and must not open the microcomputer control box without authorization, otherwise the consequences will be at your own risk.
2, C
ommon troubleshooting
Common cause of failure
A line: length of the white bag is not correct.
1.The grid voltage is unstable or too low.
2. Rubber roller pressure is too small
3. The computer is bad
4. Feeding motor can't move
5. Rubber roller diameter error
6. Set to "color" state
a. Make the power supply meet the requirements or add a voltage regulator
b.Adjust the screw to increase the pressure
c. Replace
d. First reduce the speed file, then slowly accelerate
e. Replace the rubber roller or the upper grinding machine
f. Set to "white" status
B line: bag is often stopped. The host speed is too fast, the grid is unstable, and the speed is reduced.
C. host can start
1. small relay is broken
2. Computer signal cut off
3. Host contactor is bad or contactor
Control circuit is not available
1. Replace the relay
2. Connect the signal line
3. Replace the contactor or check it
Control circuit
Note: Please contact the factory if you encounter a fault or the operation does not understand, and give valuable advice.
