Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SCULPFUN
-
Weight (KG):
-
5.5 KG
-
Mode of Operation:
-
other
-
Configuration:
-
other
-
Feature:
-
engraving and cutting
-
Product model:
-
SCULPFUN S6PRO 60W
-
Engraving size:
-
410*420mm
-
Engraving materials:
-
wood, paper, cardboard, plastic, white, PCB board, aluminum oxide
-
Cutting material:
-
cardboard, fabric, wood board, bamboo, acrylic, plastic board;
-
Machine electric power:
-
60W
-
Laser output optical power:
-
5-5.5W
-
Laser wave length:
-
455±5nm
-
Engraving accuracy:
-
0.01mm
-
Package weight:
-
4.4kg
-
Packing size:
-
615*345*130mm
Quick Details
-
Working Accuracy:
-
other
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Diode
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SCULPFUN
-
Weight (KG):
-
5.5 KG
-
Mode of Operation:
-
other
-
Configuration:
-
other
-
Feature:
-
engraving and cutting
-
Product model:
-
SCULPFUN S6PRO 60W
-
Engraving size:
-
410*420mm
-
Engraving materials:
-
wood, paper, cardboard, plastic, white, PCB board, aluminum oxide
-
Cutting material:
-
cardboard, fabric, wood board, bamboo, acrylic, plastic board;
-
Machine electric power:
-
60W
-
Laser output optical power:
-
5-5.5W
-
Laser wave length:
-
455±5nm
-
Engraving accuracy:
-
0.01mm
-
Package weight:
-
4.4kg
-
Packing size:
-
615*345*130mm
Products Description
|

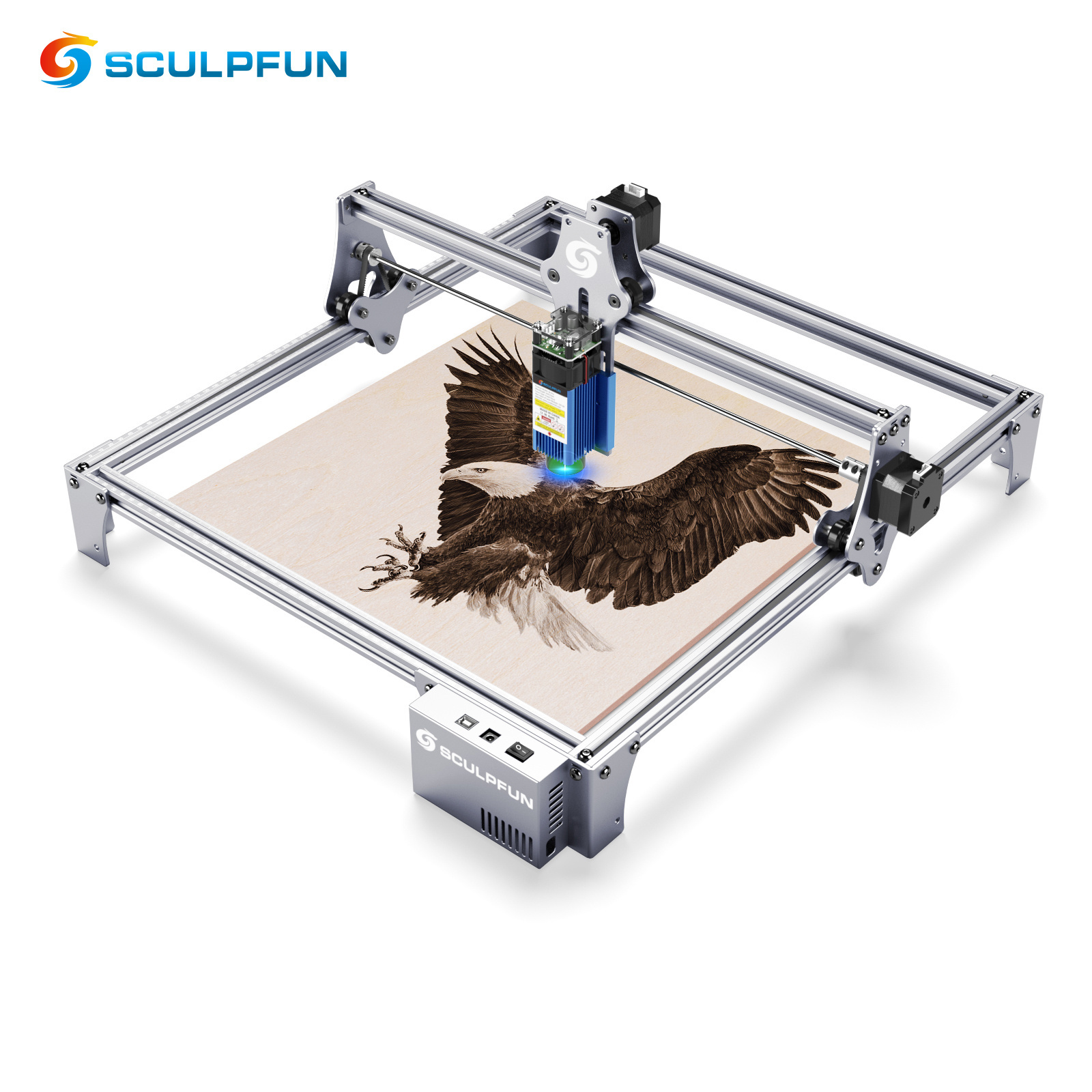

Product Model
|
SCULPFUN S6 Pro 60W
|
|
Engraving Size
|
410*420mm
|
|
Engraving Materials
|
Wood, paper, cardboard, plastic, white, PCB board, aluminum oxide, black-painted metal/ceramic
|
|
Cutting Materials
|
Cardboard, fabric, wood board, bamboo, acrylic, plastic board
|
|
Total Machine Power
|
60W
|
|
Laser Output Optical Power
|
5.5-6W
|
|
Laser Wave Length
|
455±5nm
|
|
Engraving Accuracy
|
0.01mm
|
|
Focusing Method
|
Fixed Focus Laser + Sliding Device
|
|
Laser Protective Cover
|
The light filter cover on the laser protects the user's eyes and prevents animals grabing the laser spot.
|
|
Operating Software
|
LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support Apple system.
Supported file formats NC, BMP, JPG, PNG, DXF and other image formats. |
|
Data Transmission Method
|
USB Connection
|
|
Power Supply
|
International Universal Standard
|
|
Power Input
|
100-240V AC, 50/60HZ
|
|
Power Output
|
12V 5A
|
|
Equipment Net Weight
|
3.0kg
|
|
Package Weight
|
4.4kg
|
|
Packing Size
|
615*345*130mm
|
|
Certification
|
CE FCC RoHS IEC
|
|
Warranty Period
|
One Year
|
Certifications
CE
CE
ROHS
FCC
F
IEC
Details Images
Product packaging
|
S6 Pro engraving machine packing list
|
|
|
|
|||
|
1*
|
X axis assembly
|
1*
|
power adapter
|
|||
|
1*
|
Control box module set
|
1*
|
USB cable
|
|||
|
1*
|
Laser module set
|
2*
|
X shaft
|
|||
|
1*
|
12V 5A power adapter
|
2*
|
Y shaft
|
|||
|
3*
|
Support feet
|
|
|
|||
|
Step 1~5 Screw installation package
|
|
|
|
|||
|
1*
|
T-shaped M5 screwdriver
|
1*
|
Laser goggles
|
|||
|
1*
|
L-shaped M4 screwdriver
|
1*
|
A4 size steel desktop protection pad
|
|||
|
1*
|
L-shaped M3 screwdriver
|
2*
|
belt
|
|||
|
1*
|
8-10mm nut wrench
|
2*
|
10x10cm wood chip 3mm thickness
|
|||
|
1*
|
brush
|
10*
|
Tie
|
|||
About Us
Shenzhen Sculpfun Technology Co., Ltd.
is a company focusing on sculpture product. The company's SCULPFUN brand is committed to creating the best household hobby engraving machine. We hope you can bring you and your family the fun of sculpting through our products. SCULPFUN means
"SCULPT YOUR FUN"
.
The company
cooperates with China's top diode laser companies
to conduct in-depth research on laser miniaturization and solutions to consumer sculpture needs. And in-depth cooperation with a number of laser research institutes for the future use of lasers, we keep researching how lasers can facilitate people's lives.
Our company's product
S6/S6 Pro and S9 series
laser engraving machines have been sold on major e-commerce platforms such as Amazon, eBay, AliExpress, and Banggood. It has been praised many times for "most comfortable", "Easy to use" "Extremely Solid"and "very capable" among users and testers around the world. There are detailed usage demonstrations on YouTube and other websites.
Our company attaches great importance to
"customer first"
. On the one hand, we strive for the most comfortable customer experience. On the other hand, the factory strictly controls the production quality. Every machine will be tested and sent out to ensure consumer rights.
Production Process
Quality Control
Our Advantages
Features:
1. 60W effect unique spot compression laser:
S6 pro uses the latest 5.5W diode spot compression laser. It has an ultra-fine square laser focus, and has twice cutting penetration and accuracy of ordinary lasers. Even in the field of spot compression lasers, S6 pro has thinner engraving marks and stronger cutting and penetration capabilities. It can cut 10mm thick wooden boards and engrave ceramics and metals, which is almost beyond the effect of a 60W CO2 laser.
2. Fast focusing design:
S6 has the fastest focus design on the market. The S6 laser combines a fixed focus lens and a sliding design. You only need to slide the laser and tighten the screws to complete the focusing. This makes it very easy to use the laser .
3. Solid and easy-assembly structure design:
The full-metal structure design makes the machine extremely solid, and it improves the accuracy of engraving. The whole structure is designed for easy-assembly, and the assembly can be completed in 10-20 minutes. The structural frame is very durable and remains open to upgrade. During use, you can keep the frame and replace with other new lasers. Or replace longer metal beams to expand the engraving area.
4. New eye protection design:
The laser filter cover filters 98% of the ultraviolet light to the eyes. You and the people around you can watch laser engraving without wearing goggles. At the same time it can prevent animals from catching the laser spot.
5. Wide compatibility:
The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows system, MAC system (LightBurn), and engraving file format Support JPG, PNG, DXF, AI, SVG, G-code, NC, BMP, etc.
6. Safe design:
The machine is equipped with a very convenient power switch, which is not available in other homes. Fixing holes are reserved on the four feet and the body structure to facilitate fixing the machine and the data cable.
7. A4 steel pad:
The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
8. Right-angle measuring ruler:
X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 410x420mm large-area engraving interval can meet your various engraving needs.
Note:
1. For detailed machine instructions, please refer to the manual for parameter settings.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
2. When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
3.Please do not touch the laser emitter with your hand, or it may burn your hand.
4.Please avoid strong impact on the machine.
5. Children under 14 are not allowed to use this product and children over 14 need adult supervision.
6.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
