Quick Details
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TM30A-A
-
Place of Origin:
-
Hunan, China
-
Horsepower:
-
dc power
-
Cable Length:
-
.
-
Outlet Size:
-
OD 6.3MM ID5.8MM
-
Power:
-
.
-
It:
-
6v 12v 24v dc mini micro air pump
-
Certificate:
-
TUV IATF 16949, ISO9001,RoHS,CE,
-
Motor:
-
DC brush, brushless, coreless brushless
-
Temperature range:
-
0~65 Celsius degree
-
Materials:
-
pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM
-
Features:
-
Oil-free,Compact size, Corrosionresistant, Maintenance Free, Long life
-
Product name:
-
12V dc micro air pump
Quick Details
-
Application:
-
Pressure air pump, vacuum pump, medical pump, Gas transferring and evacuating
-
Pressure:
-
120kpa
-
Voltage:
-
12v, 12V
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TM30A-A
-
Place of Origin:
-
Hunan, China
-
Horsepower:
-
dc power
-
Cable Length:
-
.
-
Outlet Size:
-
OD 6.3MM ID5.8MM
-
Power:
-
.
-
It:
-
6v 12v 24v dc mini micro air pump
-
Certificate:
-
TUV IATF 16949, ISO9001,RoHS,CE,
-
Motor:
-
DC brush, brushless, coreless brushless
-
Temperature range:
-
0~65 Celsius degree
-
Materials:
-
pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM
-
Features:
-
Oil-free,Compact size, Corrosionresistant, Maintenance Free, Long life
-
Product name:
-
12V dc micro air pump

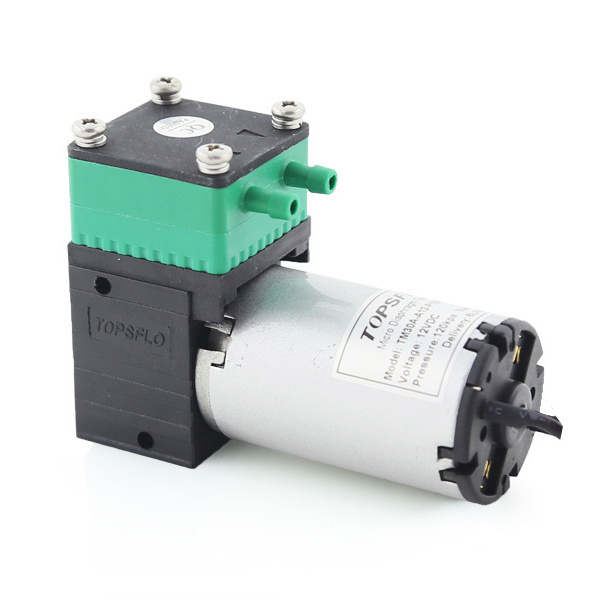

TOPSFLO High Performance Diaphragm 12v 24v dc mini air pump
Remarks:
- We are high-end micro DC
Diaphragm pumps Manufacturer
. Can provide customized services
- If you are interested in our products, pls feel free to
contact us
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦
4 major professional and precision laboratories that meet the
CNAS national laboratory
accreditation standards
♦
More than 50 patents
in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦
Complete certification, passed
CE, ROHS, REACH, WRAS, Food Grade and other certification
Product Specification
| Model | TM30A-A | TM30A-B | TM30A-C | TM30A-D |
| Motor type |
A--high performance Brush motor |
B--Brush motor | C--Brushless motor | D--Brushless motor |
| Pump Assembly Rated Life | 3000hour | 1000hour | 15000hour | 15000hour |
| Gas flow | 6L/min | 4.5 L/min | 4.5 L/min | 4 L/min |
| Rated Voltage | 12V | 6/12/24v | 6/12/24v | 6/12/24v |
| No-load Current | 0.24A | 0.4/0.24/0.15A | ||
| Media | Most gas | |||
| Max Pressure | 120kpa | |||
| Max Vacuum | -70kpa | |||
| Ambient Temperature | 41 to 158 F(5 to 70C) | |||
| Pump size | 75.5*30.4*54.6mm | 75*31.2*57.5mm | 79*31.2*57.5mm | 79*31.2*57.5mm |
| Weight | 200g | 150g | 250g | 250g |
| Inlet&Outlet | OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||
| Materials |
pump head Nylon, membrane EPDM , valve EPDM |
pump head Nylon, membrane EPDM / PTFE , valve EPDM / FPM |
pump head Nylon, membrane EPDM / PTFE , valve EPDM / FPM |
pump head Nylon, membrane EPDM / PTFE , valve EPDM / FPM |
|
Wetted material options
|
1.Optional membrane materials:
EPDM for normal air
PTFE for corrosive air,like acid, alkali air, ozone etc.
2.Optional valve materials:
EPDM for normal air
FPM for corrosive air, like acid, alkali, ozone,etc.
|
|||
TOPSFLO Diaphragm series gas pumps are the perfect combination of form and function. The use of a special diaphragm allows the pump to transfer both air and liquid efficiently. The compact lightweight unit offers optimum sizing for analytical equipment.
ADVANTAGES
♦
High pneumatic performance
♦
Compact size/high power density
♦
Uncontaminated flow – no contamination of the media due to oil-free operation
♦
Maintenance-free
♦
Long product life
♦ Low sound level
♦
Low power consumption
♦
Can operate in any orientation
APPLICATION
4. Air Quality Sampling Monitors 5. Respiration Monitors 6. Gas or Odor Leak Detectors etc..
