Quick Details
-
Weight:
-
3200 KG
-
Brand:
-
TAVOL
-
Horse power:
-
140HP
-
Engine type:
-
6 Cylinder Engine
-
Shift:
-
16+8
-
Clutch:
-
Double Stage Clutch
-
PTO Speed:
-
540/1000rpm
-
Implements:
-
Plough Harrow Cultivator
-
Colour:
-
Requirmetnts
-
Product name:
-
wheeled agriculture tractor with cheap price
Quick Details
-
Brand Name:
-
Tavol
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
YTO
-
Weight:
-
3200 KG
-
Brand:
-
TAVOL
-
Horse power:
-
140HP
-
Engine type:
-
6 Cylinder Engine
-
Shift:
-
16+8
-
Clutch:
-
Double Stage Clutch
-
PTO Speed:
-
540/1000rpm
-
Implements:
-
Plough Harrow Cultivator
-
Colour:
-
Requirmetnts
-
Product name:
-
wheeled agriculture tractor with cheap price
Products Feature and Advantage and Benefit

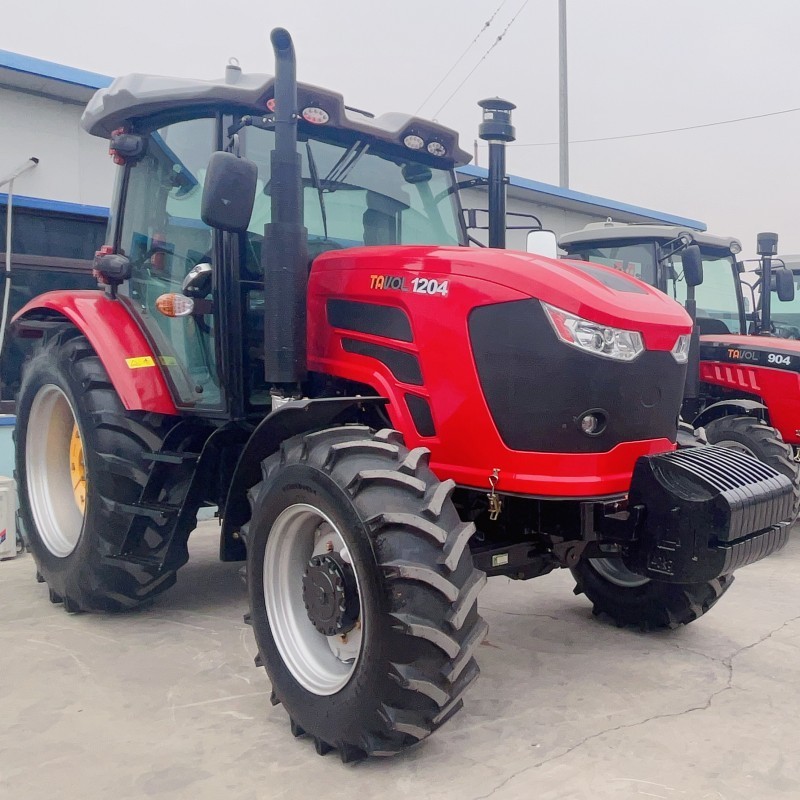

140hp 4wd farm wheel tractor with YTO 140hp engine in tavol brand china
Feature:
We Cooperate with Domestic Well-known Brand Tractor Parts Suppliers, such as: Gearboxes are Assembled by Ourselves, the Gears Inside are Made of Hangzhou Gears brand, the Bearings are Harbin Brand, the Engines are Xichai, Yuchai or YTO brand, and the Clutches are YTO ZC brand, the Hood and Cab is Equipped with Zhongyuan Brand, and the Tires use Taishan Or Xulun Brand etc.
Advantage:
Advantage:
Good Tractor Accessories Ensure the Quality of Tavol Tractor. Therefore, We Promise to Provide 24 Months of Quality Assurance and After-sales Service for the Whole Machine.
Benefit:
Benefit:
The Perfect Product Quality Control System Allows You to Buy with Confidence, to Operate Without Worry, and to Create Greater Value for Your Farmland Sowing and Harvest Operations.
Hydraulic steering,more flexible
Display for diesel volume,temperature
and speed
backup camera and operation handle
air conditioner and heater operation
quick connection for farm implement
16.9-34 rear tyre
Product Paramenters
|
Model
|
TL1404
|
|
||
|
Machine parameters
|
Type
|
4×4
|
||
|
|
Rated Traction( KN)
|
25.7
|
||
|
|
PTO Max Power (KW)
|
100
|
||
|
|
Dimensions(mm)
|
4910×2190×3120
|
||
|
Wheelbase(mm)
|
|
2630
|
||
|
Track(mm)
|
Front wheel(mm)
|
1790\.1890\1990/2090
|
||
|
|
Rear wheel(mm)
|
650-2285/1520-2120/1630-2230
|
||
|
Ground clearance(mm)
|
Minimum ground clearance(mm)
|
495
|
||
|
Turning circle radius
|
Use unilateral braking
|
6.8±0.30
|
||
|
|
Not unilateral braking
|
5.2±0.30
|
||
|
Minimum use quality
|
|
11356
|
||
|
Gearbox
|
16F+8R Creeper Shift
|
|
||
|
Steering System
|
hydraulic steering gear
|
|
||
|
Drive Train
|
Clutch
|
double acting clutch
|
||
|
Working equipment
|
Maximum lifting force at 610mm(KN)
|
≥25.7
|
||
|
|
Suspension mechanism
|
Three-piont suspension type 1
|
||
|
Tire
|
Front wheel specifications
|
14.9-26
|
||
|
|
Rear wheel specifications
|
18.4-38
|
||
|
Engine
|
Type
|
Inline, 4 stroke, Water cooled
|
||
|
|
Cylinder
|
6
|
||
|
This parameter table is for reference only, everything is based on actual products
|
|
|
||
