Quick Details
-
Name:
-

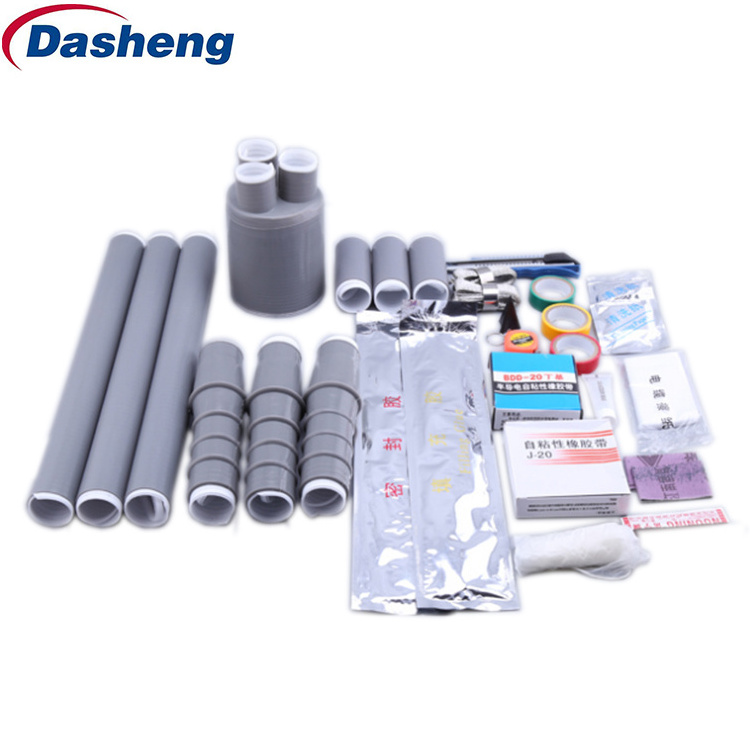

8.7/15KV Cold-shrinkable terminal and splices for power cable
-
Usage:
-
For terminal treatment and intermediate splices of cable
-
Configuration:
-
Insulative tube+Color tube for phase+Boot
-
Choices:
-
one core and three cores
-
Applicable voltage:
-
8.7~15KV
-
Applicable cable cross section:
-
25~400mm2
-
Material:
-
high-elasticity silicon rubber
-
Color:
-
gray
-
Surface treatment:
-
insulation
-
Special:
-
Cold Shrink
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DASHENG
-
Model Number:
-
8.7/15KV
-
Name:
-
8.7/15KV Cold-shrinkable terminal and splices for power cable
-
Usage:
-
For terminal treatment and intermediate splices of cable
-
Configuration:
-
Insulative tube+Color tube for phase+Boot
-
Choices:
-
one core and three cores
-
Applicable voltage:
-
8.7~15KV
-
Applicable cable cross section:
-
25~400mm2
-
Material:
-
high-elasticity silicon rubber
-
Color:
-
gray
-
Surface treatment:
-
insulation
-
Special:
-
Cold Shrink
We have more than 35 kinds of heat shrink material.
Please contact us, so that we can help you select the right product to meet your needs and fit your budget!
- Excellent raw material : prefabricated body is composed of high-elasticity silicon rubber, which has excellent insulation, elongation and breakdown properties, small residual deformation after expansion.
- Cold-shrinkable construction : using latest expansion equipment and expansion support tube to ensure product expand without damage.
- Easy installation : Cold-applied, no need fire or special tool, no need to joint or bind copper wire. It can save labor force, time and space.
Widely used in the following fields: electric power, communication, war industry ,metallurgy, mining and petroleum chemical industry ,etc
| Product name | Test item | Standard requirement | Result | Remarks |
|
8.7/15KV indoor/outdoor terminal and splices |
Power frequency voltage withstand test |
under 45kv, within 1min. no flash and no breakdown |
under 45kv, within 1min. no flash and no breakdown |
Qualified |
| Test of partial discharge | 13kv, ≤20pC | 13kv, 3pC | Qualified | |
| Load circulation test |
5h heated, 3h cooled. conductor heated to 95℃ |
Conductor heated to 90-95℃, total 3 circulations | ||
| Partial discharge test | 13kv, ≤20pC | 13kv, 3pC | Qualified | |
| Impulse voltage test |
Under105kv, on negative and positive poles applied 10times each, no flash and no breakdown |
Under 105kv, no flash and no breakdown |
Qualified | |
| Test of the negative pole |
52KV, 15min no flash and no breakdown |
52KV, 15min no flash and no breakdown |
Qualified | |
|
4h power frequency voltage test |
35KV, 4h no flash and no breakdown |
35KV, 4h no flash and no breakdown |
Qualified |
| Product mane | Mode specification | Applicable section (mm² ) |
|
8.7/15KV
one-core indoor terminal |
TNPE-NLY-10 /1.1 | 25-50 |
| TNPE-NLY-10 /1.2 | 70-120 | |
| TNPE-NLY-1 0/1.3 | 150-240 | |
| TNPE-NLY-1 0/1.4 | 300-400 | |
|
8.7/15KV
one-core cold outdoor terminal |
TNPE-WLY-10 /1.1 | 25-50 |
| TNPE-WLY-10 /1.2 | 70-120 | |
| TNPE-WLY-10/ 1.3 | 150-240 | |
| TNPE-WLY-10/ 1.4 | 300-400 | |
|
8.7/15KV
one-core splices |
TNPE-JLY- 10 / 1.1 | 25-50 |
| TNPE-JLY- 10 / 1.2 | 70-120 | |
| TNPE-JLY- 10 / 1.3 | 150-240 | |
| TNPE-JLY- 10 / 1.4 | 300-400 | |
|
8.7/15KV
three-core indoor terminal |
TNPE-NLY-10 / 3.1 | 25-50 |
| TNPE-NLY-10 / 3.2 | 70-120 | |
| TNPE-NLY-1 0/ 3.3 | 150-240 | |
| TNPE-NLY-1 0/ 3.4 | 300-400 | |
|
8.7/15KV
three-core cold outdoor terminal |
TNPE-WLY-10 / 3.1 | 25-50 |
| TNPE-WLY-10 /3.2 | 70-120 | |
| TNPE-WLY-10/ 3.3 | 150-240 | |
| TNPE-WLY-10/3.4 | 300-400 | |
|
8.7/15KV
three-core splices |
TNPE-JLY- 10 / 3.1 | 25-50 |
| TNPE-JLY- 10 / 3.2 | 70-120 | |
| TNPE-JLY-10 / 3.3 | 150-240 | |
| TNPE-JLY-10 / 3.4 | 300-400 |
Contact me, and I am glad to give you the best price.
