Quick Details
-
Brand Name:
-
zhongchuang
-
Model Number:
-
ZCTL-ZJ50N
-
Control type:
-
Full touch screen model
-
Range:
-
10,20,30,50N
-
Min reading value of test force:
-
0.001N
-
Load collection frequency:
-
1000Hz
-
Min reading value of displacement:
-
0.001mm
-
Test space:
-
190mm
-
Compression plate diameter:
-
30mm
-
Test speed:
-
0.01-1000
-
Size:
-
480*380*655mm
-
Weight:
-
60kg
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongchuang
-
Model Number:
-
ZCTL-ZJ50N
-
Control type:
-
Full touch screen model
-
Range:
-
10,20,30,50N
-
Min reading value of test force:
-
0.001N
-
Load collection frequency:
-
1000Hz
-
Min reading value of displacement:
-
0.001mm
-
Test space:
-
190mm
-
Compression plate diameter:
-
30mm
-
Test speed:
-
0.01-1000
-
Size:
-
480*380*655mm
-
Weight:
-
60kg

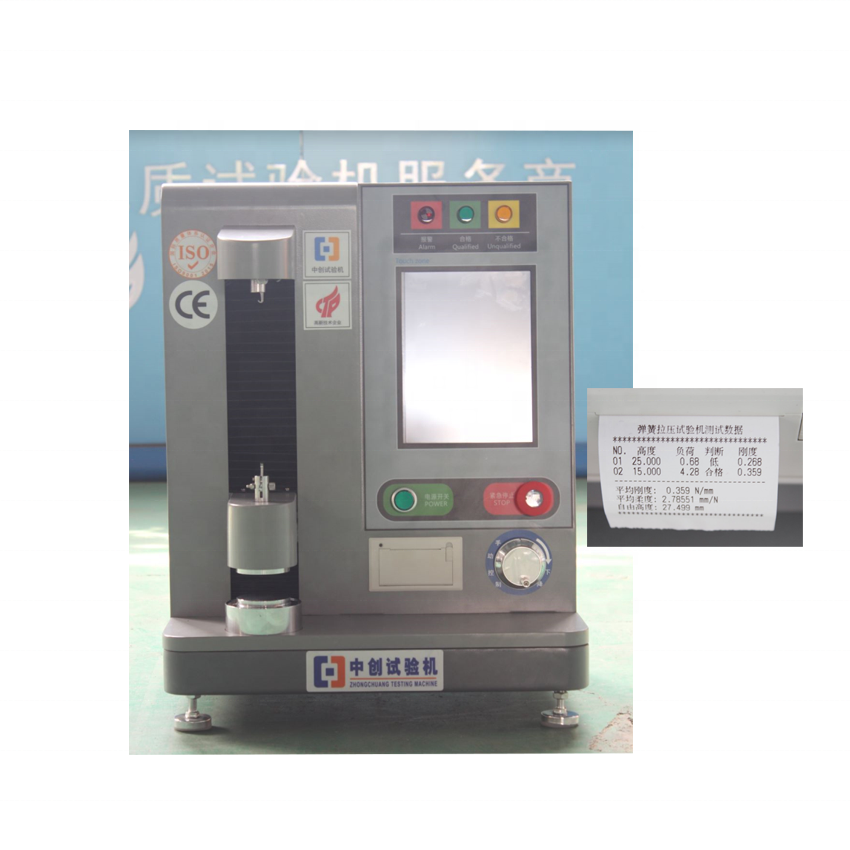

Latest Model Touch Screen Precision 50N Spring Tension and Compression Testing Machine Price
The control unit of this machine is t he latest generation of micro-operating system independently researched and developed by our company, with complete independent intellectual property rights; our company's rich industry experience and innovative ideas have made our company's product quality accuracy and practical convenience always in the leading position in the industry.
The machine is especially suitable for the detection of various precision grade spiral springs, small disc springs, shrapnels and special-shaped springs. It is mainly used in laboratory precision testing of spring production enterprises, spring use enterprises, quality inspection, measurement, various mechanical experiments of colleges and universities.
|
Loading type |
Motor load and electronic hand wheel(trimming) two types |
|
Control type |
Full touch screen model |
|
Precision model ZCTL-ZJ |
High precision |
|
Load unit |
N, kN , gf , kgf , lbf , kip |
|
R ange ( N ) |
10, 20 , 30 , 50 |
|
Min reading value of test force(N) |
0.001 |
|
Load collection frequency |
1000Hz |
|
Test range |
1%—100%FS |
|
Test force resolution |
1/1000000 |
|
Relative error of indicating value (%) |
Better than ±0.5 |
|
Relative error of indicating value repeatability (%) |
Better than ±0.5 |
|
Min reading value of displacement(mm) |
0.001 |
|
Displacement acquisition frequency |
10000Hz |
|
Indication error of deformation measurement |
Better than ±( 50+0.15l ) μm |
|
Electronic hand wheel (fine adjustment) |
0.001mm/ grid |
|
Tensile and compression test space (mm) |
190 |
|
Compression plate diameter (mm) |
30 |
|
Parallelism of compression plate (mm) |
0.05 |
|
Test speed(mm/min) |
0.01-1000 |
|
Size & Weight |
480*380*655mm, 60kg |
|
Power supply |
AC 220V±10% 50Hz |
|
Noise dB( A ) |
52 |
|
Grade of testing machine |
0.5 Grade |
