Quick Details
-
Rated Loading Capacity:
-
2T
-
Rated Lifting Moment:
-
7.5KN.M
-
Max. Lifting Height:
-
1940mm
-
Span:
-
1490mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yucheng Precision Machinery
-
Showroom Location:
-
None
-
Other name::
-
pickup crane,davit crane
-
Application::
-
Pickup truck crane,ute crane,car crane,van crane
Quick Details
-
Applicable Industries:
-
Building materials stores, factory, Machine shop, Food and beverage factories, The farm, The restaurant, Family use
-
Weight (KG):
-
60
-
Application:
-
Garment shops, Building Material Shops
-
Rated Loading Capacity:
-
2T
-
Rated Lifting Moment:
-
7.5KN.M
-
Max. Lifting Height:
-
1940mm
-
Span:
-
1490mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yucheng Precision Machinery
-
Showroom Location:
-
None
-
Other name::
-
pickup crane,davit crane
-
Application::
-
Pickup truck crane,ute crane,car crane,van crane
Recommended by seller
|

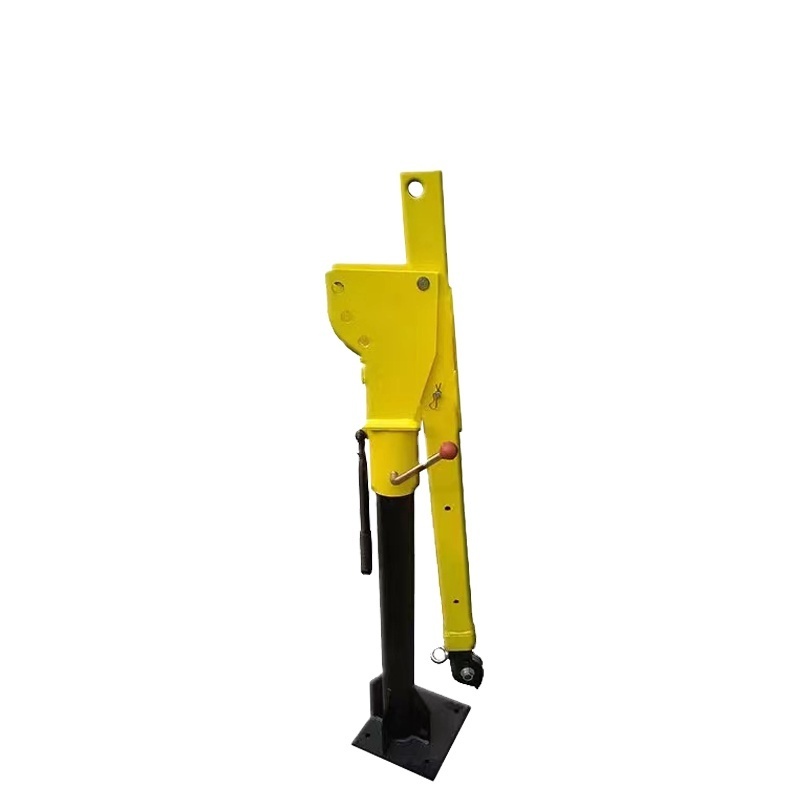

Mini truck crane product specifications
|
|
|
|
Product name
|
Mini truck crane
|
|
|
Power requirements
|
12 V DC 90 amps
|
|
|
Line speed with no load
|
3.6m/min
|
|
|
Lifting capacity
|
1000 kg
|
|
|
Rotation with brake
|
360° Manual
|
|
|
Lifting cable
|
7mm x 6.5m
|
|
|
Lifting height max.std(base to hook)
|
1940mm
|
|
|
Reach max (from center of rotation)
|
1490mm
|
|
|
weight
|
145 kgs
|
|
|
Switch cable
|
4.2m
|
|
|
Mounting base
|
300mmx300mmx14mm
|
|
|
Mounting bolt hole pattern
|
230mmx230mm
|
|
|
Finish
|
Power coated
|
|
