Quick Details
-
Voltage:
-
380V/220V/415V/460V
-
Dimension(L*W*H):
-
1480*960*1310mm
-
Weight:
-
706KGS
-
Air capacity:
-
3.8-5.2m3/min
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
PM VSD Screw Compressor 30KW 40HP 8bar 5.0m3/min
-
Cooling method:
-
Air Cooled
-
After-sales Service Provided:
-
Online Video Teaching
-
MOQ:
-
1 Set
-
Air end:
-
Baosi GU Hanbell
-
Feature:
-
High Efficiency
-
Feature 2:
-
Multiple Machine Operation
-
Feature 3:
-
Cooling System
-
Feature 4:
-
Intake valve
-
Feature 5:
-
Schneider Contator
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Airhorse
-
Model Number:
-
AHD-40A
-
Voltage:
-
380V/220V/415V/460V
-
Dimension(L*W*H):
-
1480*960*1310mm
-
Weight:
-
706KGS
-
Air capacity:
-
3.8-5.2m3/min
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
PM VSD Screw Compressor 30KW 40HP 8bar 5.0m3/min
-
Cooling method:
-
Air Cooled
-
After-sales Service Provided:
-
Online Video Teaching
-
MOQ:
-
1 Set
-
Air end:
-
Baosi GU Hanbell
-
Feature:
-
High Efficiency
-
Feature 2:
-
Multiple Machine Operation
-
Feature 3:
-
Cooling System
-
Feature 4:
-
Intake valve
-
Feature 5:
-
Schneider Contator

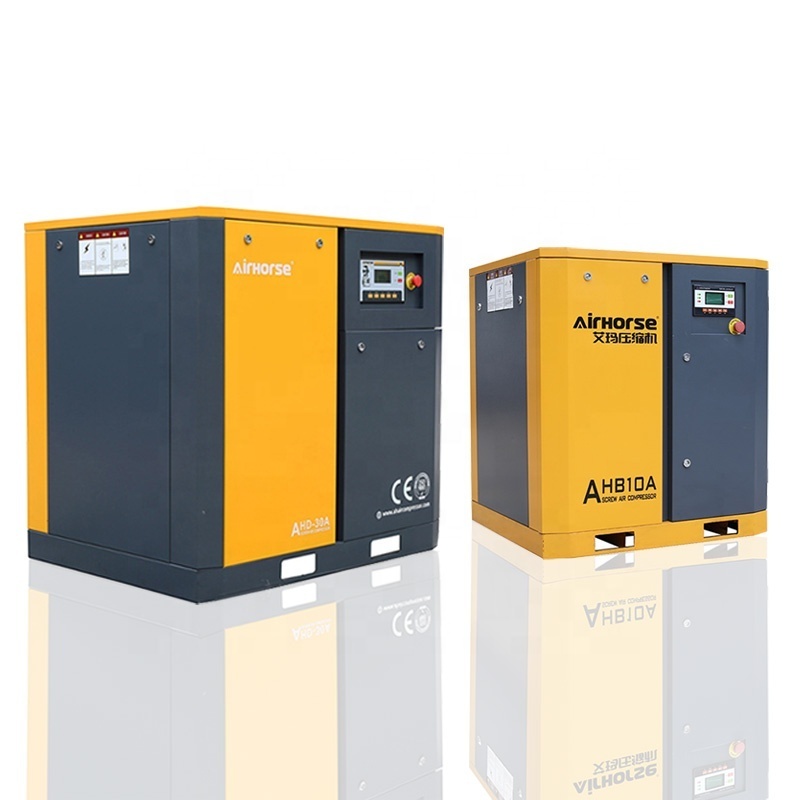

CE Certification Screw Air Compressor 30KW 40HP 8bar Energy Saving 4.5-5.0m3/min 116 psi PM VSD Compressors
|
AirHorse Screw Air Compressor (Direct driven)
|
|
|
|
|
||||
|
Model
|
|
AHD-40A
|
|
|
||||
|
Free air deliver/Discharge pressure(m³/min/Mpa)
|
|
5.2/0.7
5.0/0.8
4.5/1.0
3.8/1.2
|
|
|
||||
|
Free air deliver /Discharge pressure (CFM/PSI)
|
|
184/102
177/116
159/145
134/174
|
|
|
||||
|
Compression stage
|
|
Single stage
|
|
|
||||
|
Ambient temprerature
|
|
-5--+45℃
|
|
|
||||
|
Cooling mode
|
|
Air cooling
|
|
|
||||
|
Discharge temperature (0C)
|
|
Ambient temperature+15℃
|
|
|
||||
|
Lubricant (L)
|
|
20L
|
|
|
||||
|
Noise Level (Db)
|
|
68±2
|
|
|
||||
|
Drive method
|
|
Direct driven
|
|
|
||||
|
Electricity (V/ph/Hz)
|
|
380v/3ph/50hz
|
|
|
||||
|
Motor power (KW/HP)
|
|
30KW 40HP
|
|
|
||||
|
Starting method
|
|
Y-△Starter (Star delta starting)
|
|
|
||||
|
Dimension L*W*H (mm)
|
|
1560*1000*1365mm
|
|
|
||||
|
Net Weight (kg)
|
|
630kg
|
|
|
||||
|
Air outlet diameter (inch)
|
|
11/2''
|
|
|
||||
AirHorse Factory Introduction
Guangzhou AirHorse Compressor Co., Ltd. is a high -tech enterprise that integrates research and development, manufacturing, sales and services. Our products are sold to more than 130 countries and regions around the world. We are not only establish 30 Sales and service outlets in China, but also have a comprehensive global sales service system.
Airhorse established in 2012, we have our own R & D, sales, production, and after -sales team,The number of employees in our company is over 160. We mainly produce and sales oil injected screw air compressor, double screw air compressor, low pressure screw air compressor, oil free screw air compressor, oil free screw blower, Centrifugal compressor, vacuum pump etc，Our annual sales is more than 10,000 units, amount reach to 160 million RMB (24 million USD), Among them, overseas accounts for 70% and we have customers in 130 countries in the world. We have more than 30 Self -developed patents.
Airhorse Relying on global high -end procurement systems and research and development，to make sure we are in leading position in the global compressed area, 80% of our spare parts is famous brands in the world, German original screw air end with SKF bearing, With SIEMENS、Schneider Electrical system，Which comprehensively ensure the stable and long -term operation of AirHorse compressor. we have a senior research and development team and we can meet customization needs, We have completely supply chain management system to make effect shipment quickly. In addition, we have comprehensive quality inspection team, Highly controlled the production process to make sure high quality machine.
Certifications
We Provide air compression energy-saving solutions for global industrial users and want to be a top international compressor company and energy-saving technology company. All our machine designed on international market, such as the quality, production time, after-sold service and standards. We have CE, ISO, ASME certificate etc. Quality is our life, we pay high attention on quality controlled. Once you cooperate with us, you will know how professional we are. We can support you gain more and more market share.
Packaging and Transportation
We will customize suitable wooden box packaging for your screw machine, so that your machine can receive better protection during transportation. When receiving the goods, it will be a perfect screw machine.
