Quick Details
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
induction heating power supply
-
Working Frequency:
-
10-30Khz
-
Model:
-
SSF-120
-
Input power:
-
380V/50Hz, 3P
-
Output power:
-
120KW
-
Application:
-
Forging Hardening Brazing
-
Voltage:
-
380V50HZ/220V60HZ/customized
-
Machine name:
-
Induction Heating Machine
-
Advantage:
-
High Speed Low Noise
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Duolin
-
Weight (KG):
-
200
-
After-sales Service Provided:
-
Overseas service center available
-
Product name:
-
induction heating power supply
-
Working Frequency:
-
10-30Khz
-
Model:
-
SSF-120
-
Input power:
-
380V/50Hz, 3P
-
Output power:
-
120KW
-
Application:
-
Forging Hardening Brazing
-
Voltage:
-
380V50HZ/220V60HZ/customized
-
Machine name:
-
Induction Heating Machine
-
Advantage:
-
High Speed Low Noise

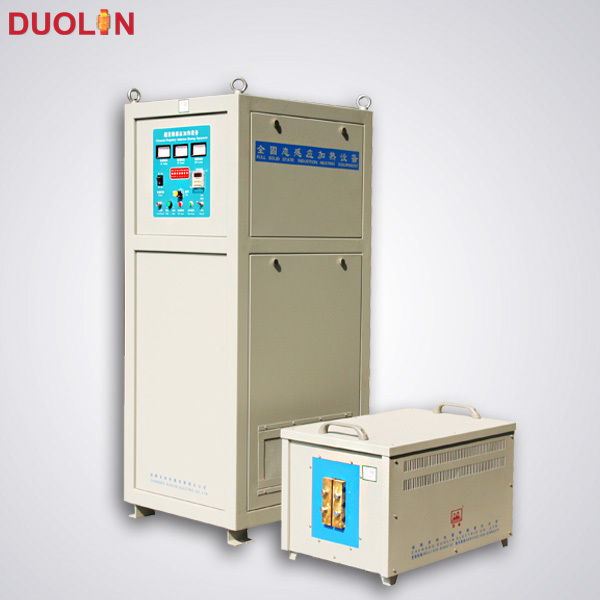

SSF-120 induction heating power supply
Product detail
Technical Parameters
| Model | SSF-120 | |
| Rated Power Output | 120KW | |
| Working Frequency | 10-30KHz | |
| Power Capacity | 150KVA | |
| Input Power | 380V/50Hz 3 phase 4lines | |
| Working Voltage | 342V-430V | |
| Input Current | 195A | |
| Cooling Water Flow | Power Unit | 56L/min(0.1Mpa) |
| Transformer | 68L/min(0.1Mpa) | |
| Weight | Power Unit | 130KG |
| Transformer | 88KG | |
| Dimension(mm) | Power Unit | 550*600*1380 |
| Transformer | 405*555*380 | |
Application
Welding
1. Standard parts, fastener parts heating.
2. Drill steel, drill tool are tempering, forging, extrusion Etc, eating.
3. Diamond saw blades, rill tool’s welding
4. Drill bit, coal drill bit, pick bit’s welding
5. Braze lathe tool, milling cutter and all kinds of wooden cutters, braze high speed steel saw blades.
Hardening:
1. Hardening parts of automobile, motorbike, mold, agricultural machinery.
2. Hardening machinery parts, such as: all kinds of gear wheel, chain wheel, kinds of axis, pin.
3. Hardening the industrial of machine tool, such as : bed guide way of machine tool.
4. Heat treatment pliers, spanner, screwdriver, drill, axe
5. Hardening pin, piston ring, spring pin, valve, shifting fork.
6. All kinds of track spiker.
Forging:
Forging dies, open die forging equipment: extrusion, rotational moulding, cut off, bending torsion shaping
equipment: machinery press, automatic forging press, hydraulic press, shaping equipment, forging hammer,
forging machine, cut machine, bend correction machine, riveting machine, forging use industrial furnace and
energy conservation technology, forging mold and repair technology equipment.
Melting
Gold, sliver, copper, aluminum, etc.
Feature
1. Good reliability
2. Digitalized Display
3. Suitable for medium and small part
4. 100% duty cycle, able to work continuously
5. High efficiency and lower energy consumption
6. Precise temperature control to uniform heating result
Our esteemed Supplier
Certification
Awarded patents, and more patents are strived for…
Be audited by SGS and BV
Do according to ISO9000:2008
Packing
Engineer Information (In English)
l Drawings: To assist the purchaser in the installation and operation of this equipment, Chengdu Duolin Electric co., Ltd will furnish its standard type outline drawings of the power unit, schematic of working principle, water flow diagrams
l Electrical control schematic diagram
l Manuals: One (1) set of operating and maintenance instructions
l Troubleshooting Guide
l Equipment inspection certification, factory packing list
