Quick Details
-
Size:
-
170*90*60mm
-
Weight:
-
1.5kg
-
Material:
-
Alumium alloy case
-
Input Voltage:
-
85VAC-250VAC
-
Max wattage:
-
400W
-
Ambient temperature:
-
-20 °C to +50°C
-
Protection:
-
SCP,OVP,OCP,OTP
-
Certificate:
-
CE,ROHS
-
Warranty:
-
18 Months
-
Application range:
-
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Quick Details
-
Type:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Use:
-
Standard Battery
-
Size:
-
170*90*60mm
-
Weight:
-
1.5kg
-
Material:
-
Alumium alloy case
-
Input Voltage:
-
85VAC-250VAC
-
Max wattage:
-
400W
-
Ambient temperature:
-
-20 °C to +50°C
-
Protection:
-
SCP,OVP,OCP,OTP
-
Certificate:
-
CE,ROHS
-
Warranty:
-
18 Months
-
Application range:
-
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Product Description
Full automatic transition of CC, CV(Lithium ion/LiFePo4)and Float/Cutoff(Lead acid)
Precise limit of voltage¤t, guarantee full charged and avoid over charger
Protections: over current, over voltage, short circuit and reverse polarity
High Efficiency>88%,eco-friendly
TWO LED indicators, Aluminium, elegant and reliable
CE&ROHS certified, Safety and High Quality
Product Specification
SAA :2018 Passed SAA
Apply to: electric tools, lithium battery electric
bikes, electric scooter, Lithium batteries pack
|
Specification
|
|
|
|
|
||||
|
Application
|

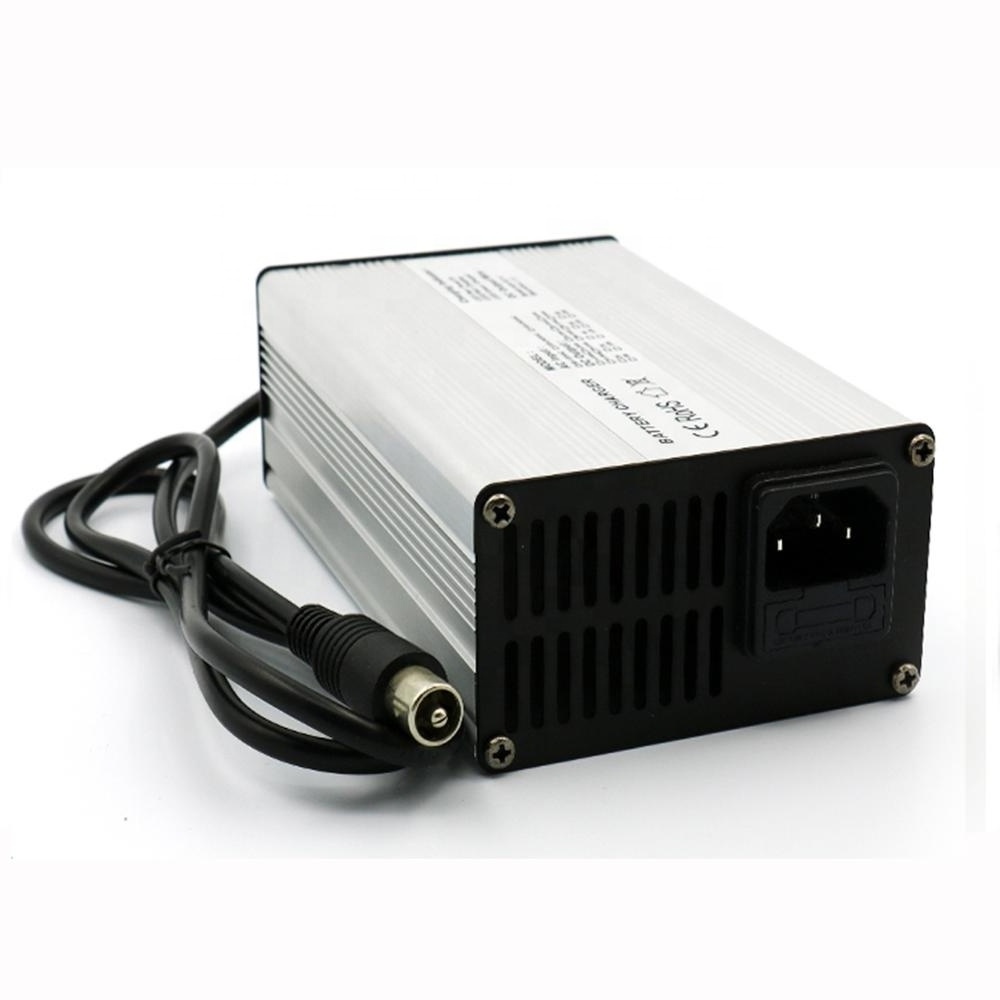

48v6a AGM Battery Charger
|
|
|
|
||||
|
Max output voltage
|
58.8Volt
|
Life Expectancy
|
50000H at room temp 25 degree
|
|
||||
|
Max output current
|
6 Amp
|
Net Weight (KG)
|
1.5kg
|
|
||||
|
Line Frequency
|
50~60Hz
|
Size (mm)
|
170*90*50 mm
|
|
||||
|
Efficiency
|
95%~98%
|
AC Cord Length
|
Around 1.5m
|
|
||||
|
Case Material
|
Aluminum Aolly
|
DC Cord Length
|
Around 1.5m
|
|
||||
|
Features
|
1,Full automatic transition of CC, CV and Float/cut-off
|
|
|
|
||||
|
|
2,Precise limit of voltage & current, guarantee fully charged and avoid over charge
|
|
|
|
||||
|
|
3, Protections: Short circuit, Over voltage, Over-temperature, Reverse Polarity Protections.DC output isolated from AC input
|
|
|
|
||||
|
|
4,High Efficiency: 95%~98%, PFC: 0.96, eco-friendly
|
|
|
|
||||
|
|
5,Current & voltage display, two LED indicators,Red (power on), Red/green (charging/full).
|
|
|
|
||||
|
|
6,Safety and High Quality ,Advanced high frequency switching mode power supply technology
|
|
|
|
||||
|
Note
|
Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%
.
|
|
|
|
||||
You can choose input & output connector from this picture ; and if you need other plug please let me know ; Sale : Powerwise / crows foot , RXV , Yamaha 2pins , SB-50 Handle , RPC ,YAMAHA 3PINS G29 ,
