Quick Details
-
Use:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ESWIRES
-
Model Number:
-
ES04-6060
-
Depth:
-
60"/1524 mm
-
Weight Capacity:
-
2400LB./1100 kg
-
Width:
-
60"/1524 mm
-
Height:
-
60"/1524 mm
-
Raw material:
-
Mild steel
-
Load in 1*40HQ:
-
280sets
-
Tire Capacity:
-
24 to 32 pcs
-
Posts:
-
Removable or customized
-
Column:
-
Stack 4 on top of each other
-
Extra accessories:
-
Forklift guide, bottom wire mesh and wheels
-
Colors:
-
Green, red,blue or optional
-
Lifespan:
-
Up to 3 to 5 years against proper handling
-
Finish:
-
Colorful powder coating
-
Types of tires:
-
passenger PCR tires, SUV or truck tires, or bus tires
Quick Details
-
Type:
-
Vertical Type
-
Material:
-
Steel
-
Feature:
-
Corrosion Protection
-
Use:
-
Industrial
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ESWIRES
-
Model Number:
-
ES04-6060
-
Depth:
-
60"/1524 mm
-
Weight Capacity:
-
2400LB./1100 kg
-
Width:
-
60"/1524 mm
-
Height:
-
60"/1524 mm
-
Raw material:
-
Mild steel
-
Load in 1*40HQ:
-
280sets
-
Tire Capacity:
-
24 to 32 pcs
-
Posts:
-
Removable or customized
-
Column:
-
Stack 4 on top of each other
-
Extra accessories:
-
Forklift guide, bottom wire mesh and wheels
-
Colors:
-
Green, red,blue or optional
-
Lifespan:
-
Up to 3 to 5 years against proper handling
-
Finish:
-
Colorful powder coating
-
Types of tires:
-
passenger PCR tires, SUV or truck tires, or bus tires
Customized Portable Stacking Folding Storage PCR tire rack
Passenger tire rack is a standard warehouse solution for tires for passenger tire or light SUV tires storage.
Technical data of PCR tire rack
| Model No. | ES04-6060 | |||||
| Dimensions | 60"x60"x60" / 1524x1524x1524mm | |||||
| max. load (surface load) | 2400LB./1100 kg | |||||
| Stacking | 4-6 High | |||||
| Empty pallet stacking | 1 + 19-fold | |||||
| Warehouse capacity | 24 to 32 tires | |||||
| Finish | Powder coating | |||||
| Loading Capacity | 2400LB./1100 kg | |||||
| 1*40'HQ | 280 sets | |||||
| Similar design, different sizes | ||||||
| Model No. | Exterior Dim. | Tire capacity | Loading Capacity |
Max. Stacked |
Max. Stacked |
Load in 1x40HQ |
| LxWxH | pcs | kg | open | closed | sets | |
| ES04-7272-WM | 72"x72"x72" | 42 to 63 | 2400LB./1100 kg | 4 | 20 | 160 |
| ES04-8080 | 80"x80"x60" | 20 | 2400LB./1100 kg | 4 | 20 | 100 |
| ES04-LR | 85"X 48 1/2" X 50" | 34 to 50 PCR-SUV - 7 TBR | 2400 lb. / 1100 kg | 6 | 20 | 140 |
| ES04-TBR-HD | 92''x40''x72'' | 72to81 | 2400 lb. / 1100 kg | 4 | 20 | 220 |
| Application area | Warehouse, logistics, tyre, auto industry | |||||
| Features |
1. Portable modular racks
--easy to stack and move around with the fork truck --rearrange floor space quickly and simply than pallet racking 2. Removable posts --reduce shipping costs, save space during slower periods --regain 80% storage space when folded 3. Optional bottom wire mesh & forklift guide |
|||||

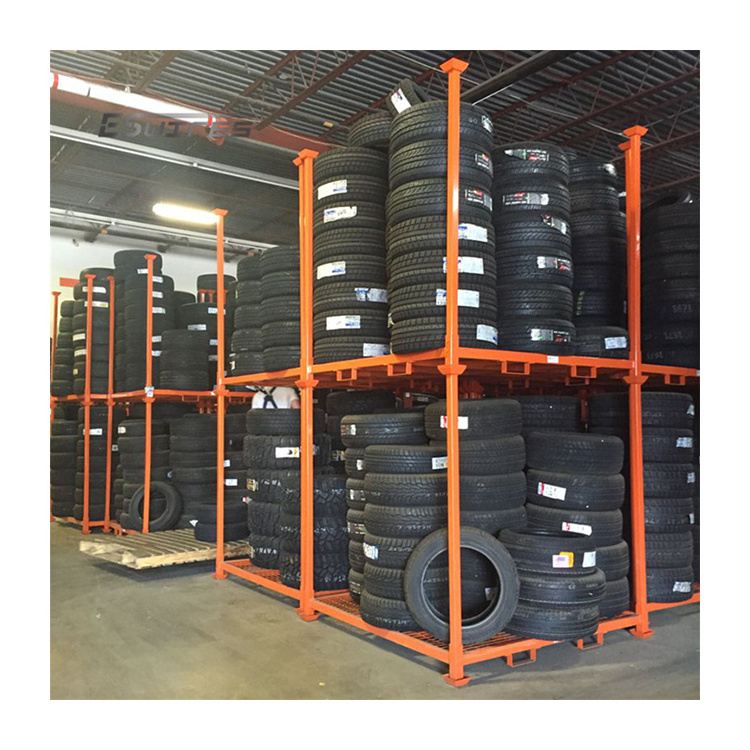

The 60" x 60" deck rack is designed to hold 4 or 5 stacks of 7 or 8 tires, depending on tire diameter.
For tires measuring 16" and under, 5 stacks can be stored per pallet, and for tires measuring 17" and over, 4 stacks.
Application areas are warehouse turnover, logistics transportation, and heavy duty storage.
Support for tire racks' packaging customization.
