Quick Details
-
Brand Name:
-
Suiteque
-
Voltage:
-
As per order
-
Dimension(L*W*H):
-
1133x920x1394~8185x3910x2270mm
-
Weight (KG):
-
1500 KG
-
Roll diameter:
-
160~710mm
-
Roll working length:
-
320~2200mm
-
Front roll linear speed:
-
9~31.9m/min
-
Speed ratio of rolls:
-
1:1.35~1:1.51
-
max roll space:
-
4.5~16mm
-
Compound feeding capacity:
-
1~190kg
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Diameter of Roll(mm):
-
200 mm
-
Length of Roll(mm):
-
200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Suiteque
-
Voltage:
-
As per order
-
Dimension(L*W*H):
-
1133x920x1394~8185x3910x2270mm
-
Weight (KG):
-
1500 KG
-
Roll diameter:
-
160~710mm
-
Roll working length:
-
320~2200mm
-
Front roll linear speed:
-
9~31.9m/min
-
Speed ratio of rolls:
-
1:1.35~1:1.51
-
max roll space:
-
4.5~16mm
-
Compound feeding capacity:
-
1~190kg
-
Marketing Type:
-
Ordinary Product
CE open mill silicon rubber two roll mixing mill
Tel&Whatsapp&Viber: +86 126421152
QQ&WeChat :17562025828
Company website: http://suiteque.en.alibaba.com

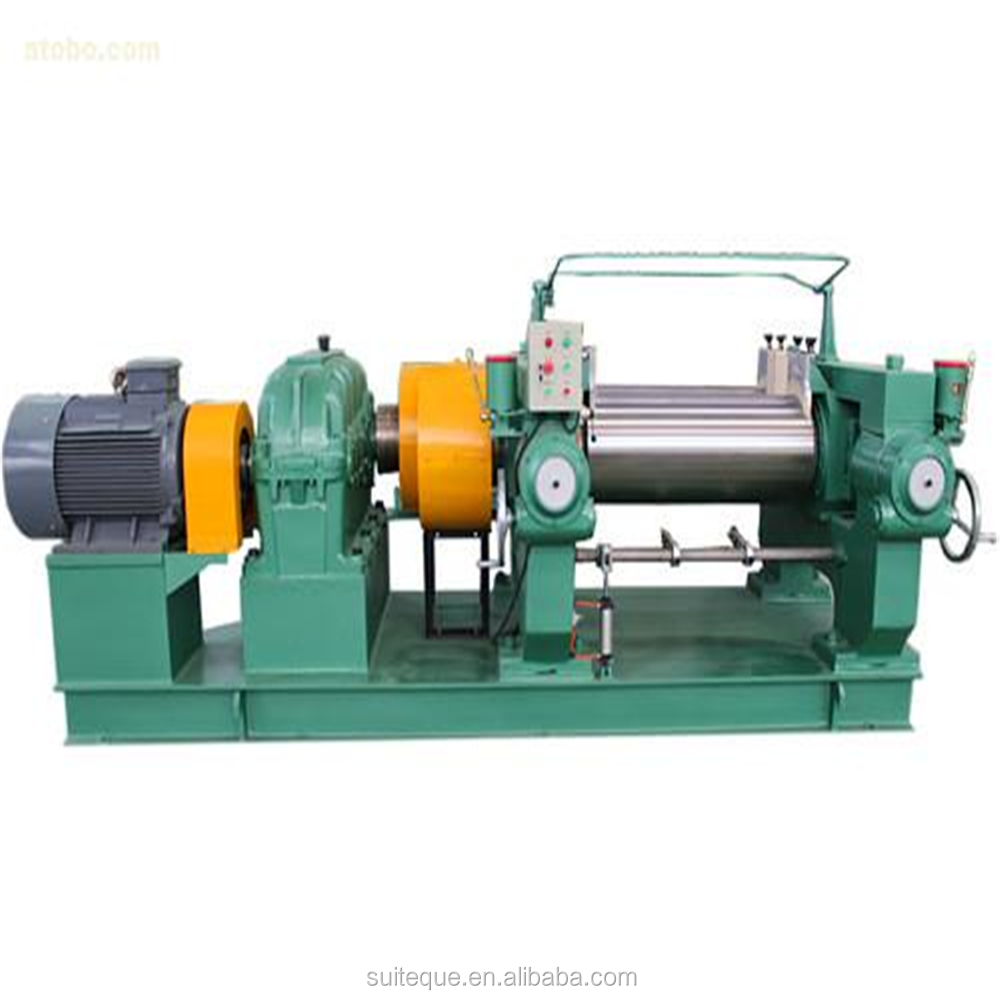

CE open mill silicon rubber two roll mixing mill
Application:
It is used for rubber mixing, warming, sheeting and plastic mixing, etc.
Structure features:
This machine is composed of rolls, bearings, frame, frame cap, transmission device, nip adjuster,lubrication device, temperature regulator of rollers, emergency stop device and braking device, etc. The transmission is mainly conducted by the main motor, which drives reducer, and then the two coupling make the two rollers run. The speed of rollers is adjustable and can be directly showed on the control panel. Rollers are protected by a safety shim, and rollers bearings are lubricated with manual-peration/power
driven through a grease pump.
Technical parameter:
|
Specification&type |
Roll diameter ×Length(mm) |
Linear speed of front (m/min) |
Roll friction ratio |
Batch volume (kg) |
Motor power (KW) |
Max.nip adjusting (mm) |
Overall dimension ( mm ) |
Weight ( t ) |
|
X(S)K-160 |
160×320 |
8.95 |
1:1.35 |
1-2 |
5.5 |
4.5 |
1120×920×1295 |
1.1 |
|
X(S)K-200 |
200×500 |
19.50 |
1:1.05 |
8 |
11 |
5 |
2055×900×1165 |
2.5 |
|
X(S)K-250 |
250×620 |
15.20 |
1:1.10 |
10-15 |
18.5 |
8 |
3220×1500×1290 |
3.8 |
|
X(S)K-360 |
360×900 |
16.26 |
1:1.25 |
15-20 |
30 |
10 |
3920×1650×1725 |
5.53 |
|
X(S)K-400 |
400×1000 |
18.65 |
1:1.27 |
25-35 |
40 |
10 |
4380×1710×1880 |
8.14 |
|
X(S)K-450 |
450×1200 |
23.85 |
1:1.27 |
30-50 |
55 |
8 |
5050×1920×1870 |
13 |
|
X(S)K-560 |
560×1530 |
27.61 |
1:1.315 |
50-60 |
95 |
12 |
5830×2300×2000 |
22 |
|
X(S)K-550 |
550×1500 |
27.175 |
1:1.25 |
50-65 |
90(110) |
15 |
6040×2100×1625 |
20 |
|
X(S)K-610 |
610×1830 |
28.7 |
1:1.25 |
90-120 |
160 |
15 |
6750×3040×1743 |
35 |
|
XKY-660 |
660×2130 |
32.45 |
1:1.09 |
165 |
185 |
15 |
7450×3660×2080 |
45 |
|
XKR-660 |
660×2130 |
28.60 |
1:1.24 |
165kg |
250 |
15 |
7465×3660×2080 |
45.6 |
|
X(S)K-710 |
710×2200 |
31.90 |
1:1.09 |
350kg |
280 |
15 |
7180×3805×3015 |
50 |
|
X(S)K-760 |
760×2540 |
33.23 |
1:1.09 |
350kg |
315 |
15 |
7180×3805×3015 |
58 |
|
X(S)K-810 |
810×2540 |
31.90 |
1:1.09 |
350kg |
355 |
15 |
7180×3805×3015 |
68 |
Packaging:In wooden boxes
Shipping:Within 20~40 workdays
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.
1.Q: Are you a factory or trading company?
A: We are the factory.We have our own plant,worker and techniques research developing department.
2.Q: Where is your factory located?How can I visit there?
A: Our factory add is Tieshan industrial Park,Jiaonan,Qingdao,Shandong province,China.
Yes,welcome to our factory.
3.Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market.And main products are the mtorcycle,electric bike and bicycle tyre making machine.
4.Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department.We win make a strick inspectin before the machines leave the factory.
5.Q: Are the techncal parameter is fixed?
A: Basicall,each model correspondin to the related machine.But we can design different type machine according to the clients requirement.
