Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Travel Speed:
-
0-6km/h
-
Grade Ability:
-
35%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Dimension(L*W*H):
-
2240mm*1085mm*2260mm(1620mm)
-
Drum diameter:
-
560mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Double Drum Roller
-
Walking speed:
-
0-6km/h
-
Turning radius:
-
2000mm
-
Engine type:
-
water-cooling
-
Fuel tank capacity:
-
5.5L
-
Hydraulic oil tank:
-
50L
-
Water tank:
-
70L
-
Fuel consumption rate:
-
≤245g/kw.h
-
Watering mode:
-
Electrically controlled pressure water spraying
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
11 KW
-
Weight:
-
1600kg
-
Engine Brand:
-
CHANGCHAI
-
Travel Speed:
-
0-6km/h
-
Grade Ability:
-
35%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIANJIE
-
Dimension(L*W*H):
-
2240mm*1085mm*2260mm(1620mm)
-
Drum diameter:
-
560mm
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Double Drum Roller
-
Walking speed:
-
0-6km/h
-
Turning radius:
-
2000mm
-
Engine type:
-
water-cooling
-
Fuel tank capacity:
-
5.5L
-
Hydraulic oil tank:
-
50L
-
Water tank:
-
70L
-
Fuel consumption rate:
-
≤245g/kw.h
-
Watering mode:
-
Electrically controlled pressure water spraying
Product Description
The walking behind vibratory road roller can be used for muncipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, backfiling for pipeline and stadium ground.
|
Model
|
600C(singl-wheel)
|
600A(double-wheel)
|
|
Gasoline type
|
Honda GX160
|
Honda GX270
|
|
Power
|
5.5hp, 3600rmp
|
9.0hp, 3600rmp
|
|
Nominal amplitude
|
0.5mm
|
0.5mm
|
|
Fuel tank capacity
|
3.5L
|
3.5L
|
|
Walking speed
|
0-4km/h
|
0-4km/h
|
|
Drive mode
|
Hydraulic drive
|
Hydraulic drive
|
|
Steel wheel size
|
426*600mm
|
426*600mm
|
|
Vibration force
|
20KN
|
20KN*2
|
|
Vibration frequency
|
75Hz
|
75Hz
|
|
Gradeability
|
25%
|
30%
|
|
Package dimensions
|
L1150xW850xH1200mm
|
1350*850*1200mm
|
|
Working Weight
|
320kg
|
530kg
|
|

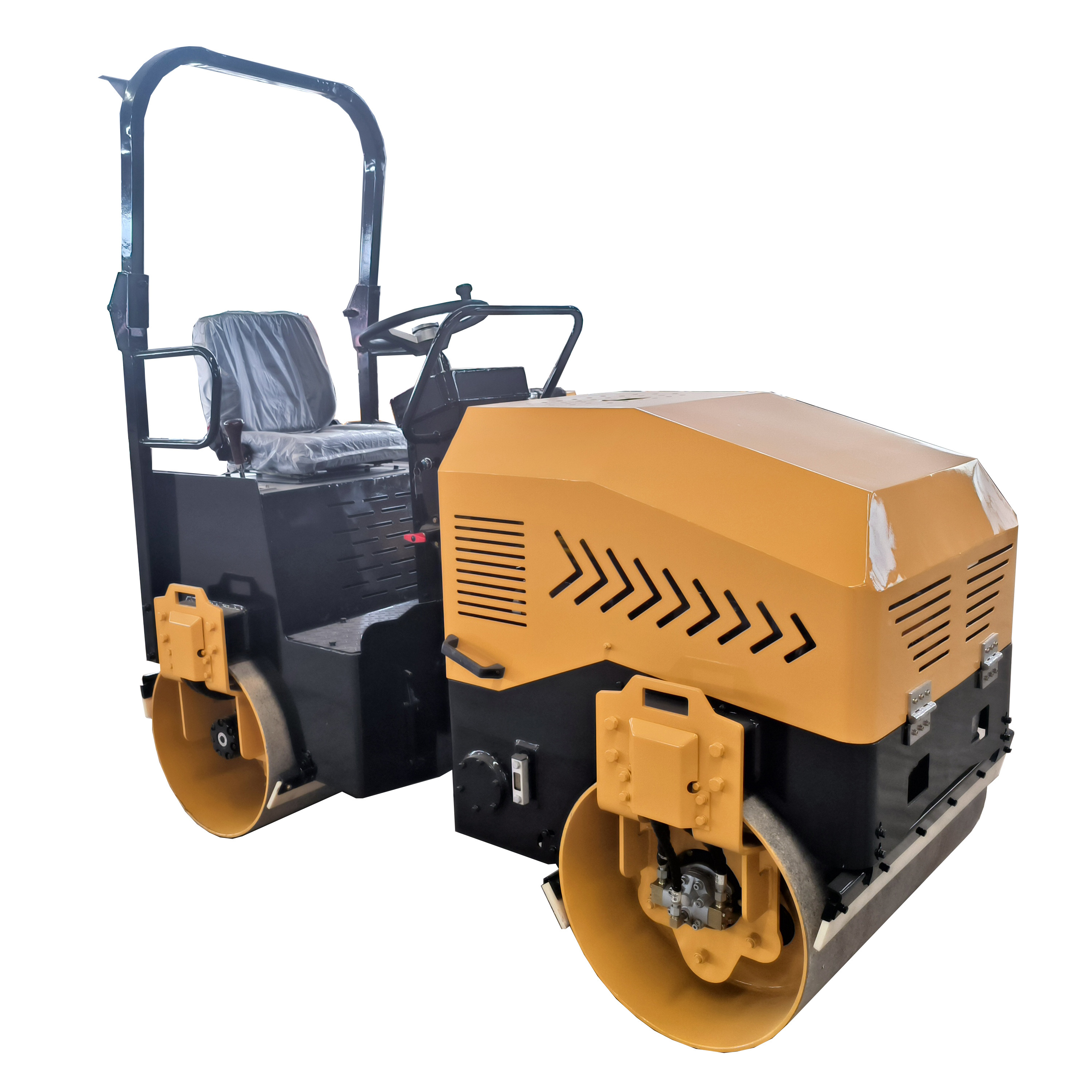

Model
|
1.6T double wheel Road Roller
|
|
|
|||
|
Working mode
|
Diesel engine
|
|
|
|||
|
Walking speed
|
0-6km/h
|
Engine brand
|
CHANGCHAI H16
|
|||
|
Turning radius
|
2000mm
|
Engine type
|
water-cooling
|
|||
|
Gradeability
|
35%
|
Power
|
16HP
|
|||
|
Driving mode
|
Full hydraulic
transmission |
Fuel tank capacity
|
5.5L
|
|||
|
Vibration mode
|
hydraulic vibration
|
Fuel consumption rate
|
≤245g/kw.h
|
|||
|
Watering mode
|
Electrically controlled pressure water spraying
|
Water tank
|
70L
|
|||
|
Excitation force
|
30KN
|
Hydraulic oil tank
|
50L
|
|||
|
Nominal amplitude
|
0.5mm
|
Vibration frequency
|
70Hz
|
|||
|
Dimension
|
|
|
|
|||
|
Steel wheel width
|
|
1000mm
|
|
|||
|
Steel wheel diameter
|
|
560mm
|
|
|||
|
Length
|
|
2240mm
|
|
|||
|
Width
|
|
1085mm
|
|
|||
|
Overall height （without U-tape frame）
|
|
2260mm(1620mm)
|
|
|||
|
Operating weight
|
|
1600kg
|
|
|||
