Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tianjiao
-
Voltage:
-
380v/50hz
-
Dimension(L*W*H):
-
1300*2500*190mm
-
Power (kW):
-
9
-
Weight (KG):
-
1250
-
Type:
-
cnc machine price in india
-
Max Engraving Speed:
-
20m/min
-
Reposition Accuracy:
-
0.05/300mm
-
Spindle Speed:
-
6000-24000rpm
-
Working Dictate:
-
G code
-
Compatible Software:
-
type3, Artcam, Ucancam
-
Color:
-
grey and red or as customers needs
-
Square rail:
-
HIWIN square linear guide rail
-
control system:
-
dsp
-
motor:
-
stepper motor
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
4000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tianjiao
-
Voltage:
-
380v/50hz
-
Dimension(L*W*H):
-
1300*2500*190mm
-
Power (kW):
-
9
-
Weight (KG):
-
1250
-
Type:
-
cnc machine price in india
-
Max Engraving Speed:
-
20m/min
-
Reposition Accuracy:
-
0.05/300mm
-
Spindle Speed:
-
6000-24000rpm
-
Working Dictate:
-
G code
-
Compatible Software:
-
type3, Artcam, Ucancam
-
Color:
-
grey and red or as customers needs
-
Square rail:
-
HIWIN square linear guide rail
-
control system:
-
dsp
-
motor:
-
stepper motor
Door Furniture Wood CNC Machine Price in India
1.Brief Introduction:
This is widely used in advertisement, furniture, and doors engraving and cutting .

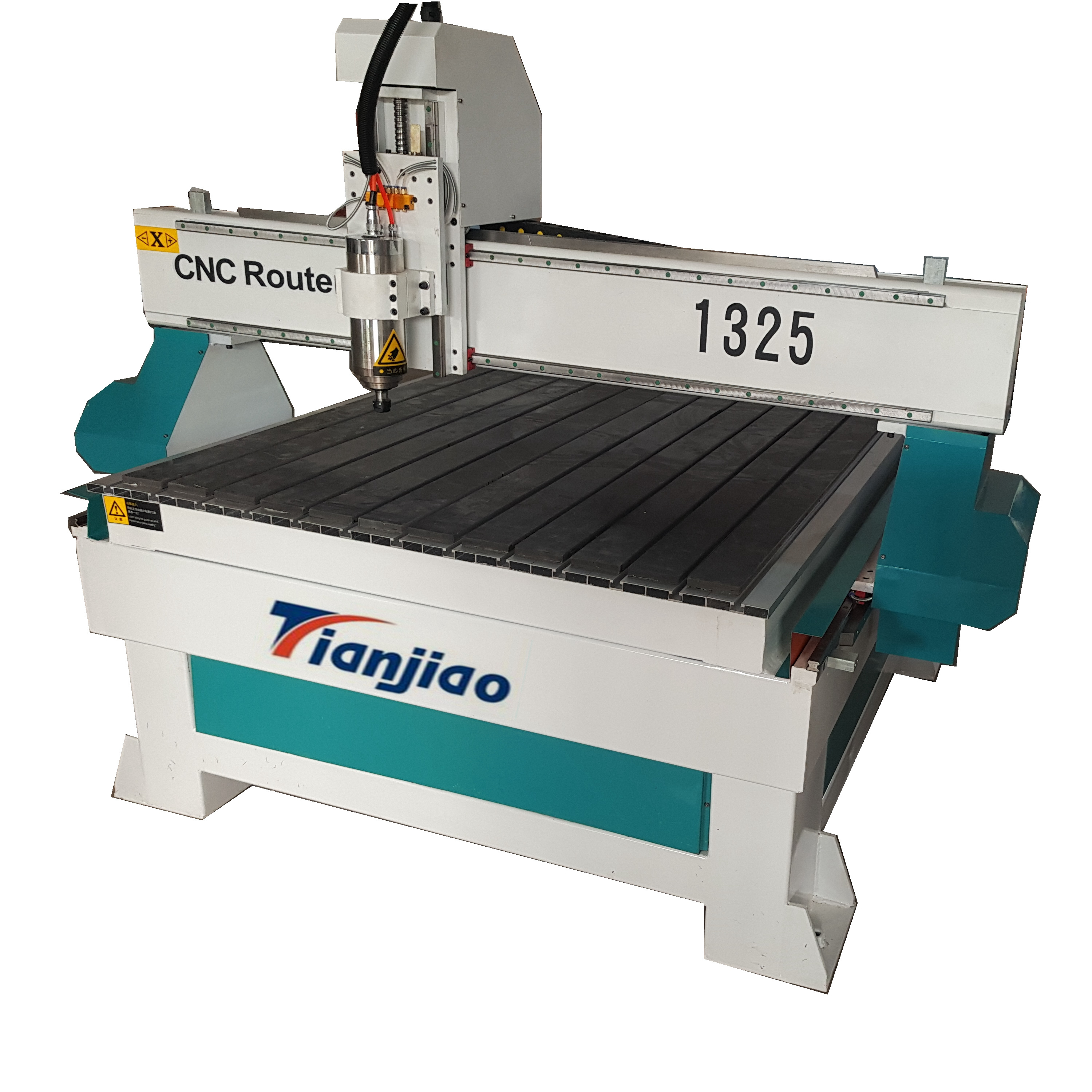

2.Pictures of Wood CNC Machine Price in India:
3.Technical Parameters:
|
Model Name |
TJ1325 |
|
Working Area |
1300*2500*190mm |
|
Spindle Power |
2.2KW |
|
Lathe Bed |
cast or welded |
|
Lathe Table |
Aluminum alloy/PVC |
|
XYZ guide rail |
Square Rail |
|
XY transmission |
Rack Gears |
|
Z transmission |
Ball Screw |
|
Spindle |
Changzhou |
|
Inverter |
Rituo or other brands |
|
Driver |
Leadshine882 |
|
Working Dictate |
G Code |
|
Operation Software |
NC Studio |
|
Typeset Software |
Artcut (English) |
|
Working Dictate |
G Code |
|
Processing accuracy |
<0.05mm/300mm |
|
Max Engraving Speed |
20,000mm/min |
|
Spindle rotational speed |
6000-24000rpm |
|
Tool Diameter |
Φ3.175mm,Φ6mm,Φ12.7mm |
|
Working Voltage |
AC220V/50Hz 380V/60Hz |
|
Optional Parts |
Dust collecting system |
|
Vacuum table with air pump |
|
|
Mist sprayer and flume |
|
|
Rotary device with Dia 80mm/100mm/200mm |
4. Applicable Industry:
Wooden door and furniture decoration industry, Wooden crafts processing, Electronic product industry, Instrument industry, EVA processing industry, Other industries.
5.Main Parts Pictures:
6. Applicable Materials:
Wood, acrylic, doublecolor board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.
7.Sample Show:
8.Factory Show:
9.Warranty and After Sales Service:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. 2) Maintenance free of charge during lifespan. 3)Free training course at our plant. 4)We will provide the consumable parts at an agency price when you need replacement. 5)24 hours on line service each day, free technical support 6)Machine has been adjusted before delivery, operation disk is included.
Inside Packing
- Use professional Stretch Film to cover the whole lathe
- Stretch film package with foam protection in each corner.
Outside Packing
- Sandard export wooden cases and pylwood cases
- Save space as much as possible for container loading.
Transport
- We support shipping, air, land and express
- You can choose the most suitable way of transport
If you have any special request for packing, we can do it.
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
