Quick Details
-
Power (kW):
-
3.95
-
Weight (KG):
-
500
-
Name:
-

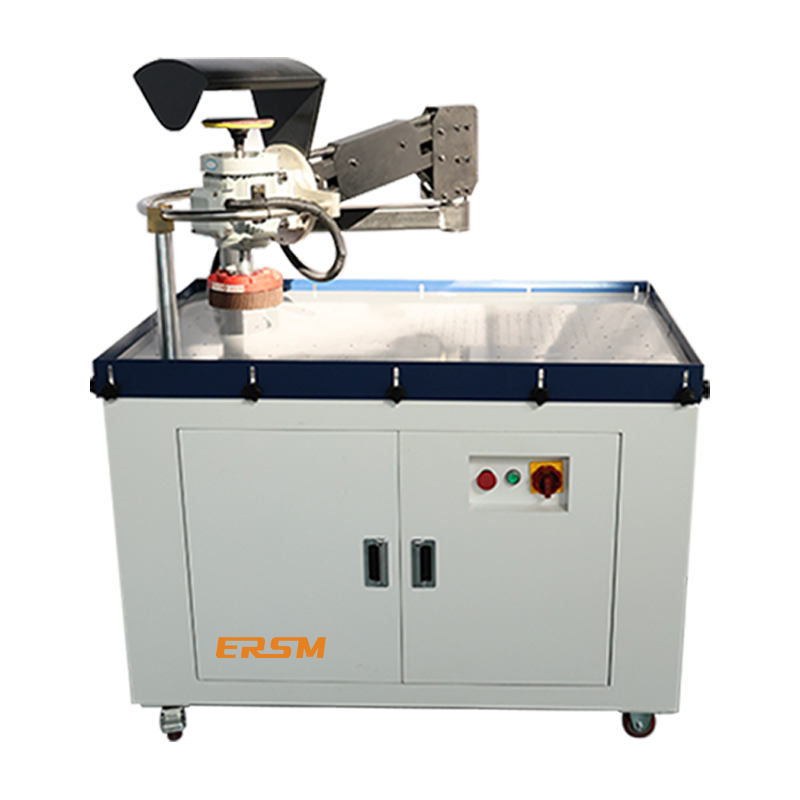

Manual Deburring Machine
-
Model:
-
RMD-162
-
Worktable Size:
-
1200*750mm
-
Grinding Head Power:
-
0.75kw
-
Processing Thickness:
-
0.5-100mm
-
Cantilever Operating Range:
-
1200mm/360°
-
Brush Size:
-
162mm
-
Workpiece Thickness:
-
≤145mm
-
Total Power:
-
3.95kw
-
Size:
-
1210*758*1295mm
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RSM
-
Marketing Type:
-
New Product
-
Power (kW):
-
3.95
-
Weight (KG):
-
500
-
Name:
-
Manual Deburring Machine
-
Model:
-
RMD-162
-
Worktable Size:
-
1200*750mm
-
Grinding Head Power:
-
0.75kw
-
Processing Thickness:
-
0.5-100mm
-
Cantilever Operating Range:
-
1200mm/360°
-
Brush Size:
-
162mm
-
Workpiece Thickness:
-
≤145mm
-
Total Power:
-
3.95kw
-
Size:
-
1210*758*1295mm
Product Features
1. Suitable for small batch metal plate surface polishing,slag removal, deburring and other treatment.
2. There are two heads that can be fitted with various types of tooling.
3. Automatic vacuum adsorption table, automatic distribution of vacuum suction,efficient and safe.
4. Different brushes can be selected according to the actual workpiece to achieve the ideal effect.
5. With dust-cleaning function.
Product Parameter
|
Model
|
RMD-162
|
|
Power
|
3.95KW
|
|
Grinding Head Power
|
0.75KW
|
|
Adsorption Pressure
|
27Kpa
|
|
Cantilever Operating Range
|
1200mm/360°
|
|
Brush Size
|
φ162mm
|
|
Sand Size
|
φ150mm
|
|
Size Of Vacuum Adsorption Platform
|
295*295mm
|
|
Table Size
|
1200*750mm
|
|
Vacuum Air Volume
|
1000m³/h
|
|
Processing Thickness
|
0.5-10mm
|
|
Grinding Head
|
2
|
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.
When should I use a deburring machine?
A:Before finishing operations, you should use these machines for sharp metal objects that you want to deburr. This will increase the smoothness of the cutting operation and improve your end product.
3.How long does it take for a machine to remove burrs?
A: The time taken for the deburring process depends on the thickness and size of each sheet. A powerful machine can remove burrs quickly, but it requires skilled operators to safely.
4.
What materials is the machine suitable for?
A: Suitable for flat plate parts,carbon steel plate,stainless steel plate,aluminum plate,copper plate,titanium alloy,all
kinds of non-ferrous metals,rubber and plastic materials.
5. Do you have an inspection procedure for the product?
A:Yes, We have a strict inspection of product quality and packing.
