Quick Details
-
Brand Name:
-
DZX
-
Model Number:
-
CuBe2 C17200
-
Application:
-
Industrial,welding
-
Length:
-
Customized
-
Grade:
-
CuBe, CuBe2 C17200
-
Product Name:
-

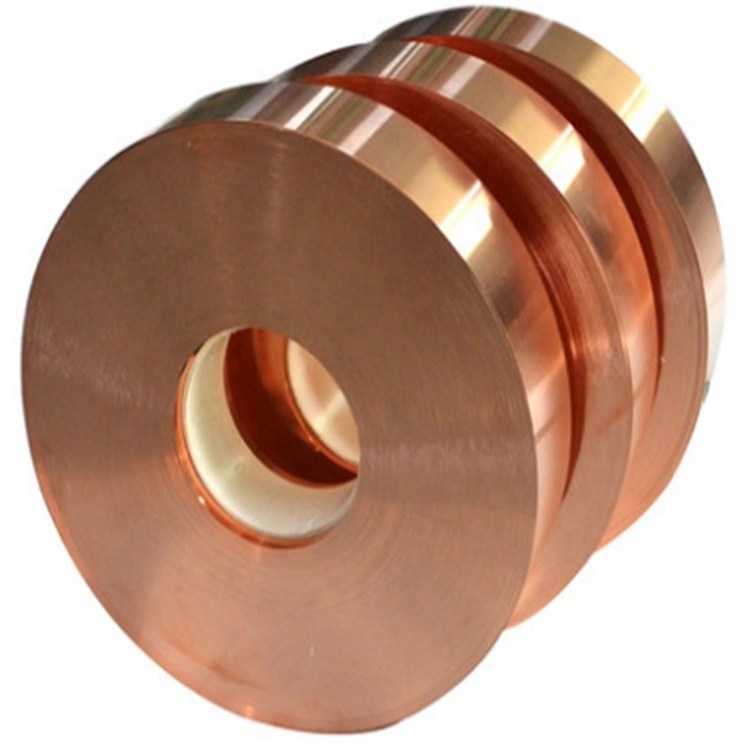

Beryllium Copper Strip CuBe2 C17200 Copper Foil
-
Material:
-
Beryllium Copper Alloy
-
Surface:
-
Bright
-
Hardness:
-
HRC26-88
-
Size:
-
Custom Size
-
Strength of extension:
-
540~640 MPa
-
Certificate:
-
ROHS
-
MOQ:
-
20kgs
-
Delivery time:
-
7-25 Days
Quick Details
-
Cu (Min):
-
CuBe
-
Alloy Or Not:
-
Is Alloy
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DZX
-
Model Number:
-
CuBe2 C17200
-
Application:
-
Industrial,welding
-
Length:
-
Customized
-
Grade:
-
CuBe, CuBe2 C17200
-
Product Name:
-
Beryllium Copper Strip CuBe2 C17200 Copper Foil
-
Material:
-
Beryllium Copper Alloy
-
Surface:
-
Bright
-
Hardness:
-
HRC26-88
-
Size:
-
Custom Size
-
Strength of extension:
-
540~640 MPa
-
Certificate:
-
ROHS
-
MOQ:
-
20kgs
-
Delivery time:
-
7-25 Days
Product Description
|
Beryllium Copper Bar CuBe2 C17200 Copper Rod Price
|
|
|
|
*Material
|
Be,Cu,Co,Ni,Si,Fe,Al
|
|
|
*Grade
|
CuBe2 C17200
|
|
|
*Tensile strength (Mpa)
|
1105
|
|
|
*Density (g/cm3)
|
8.83
|
|
|
*Softening temperature (℃)
|
930
|
|
|
*Hardness (HRC)
|
38-44
|
|
|
*Thermal conductivity (W/m.k20℃)
|
105
|
|
|
*Conductivity (IACS%):
|
18
|
|
c17200 beryllium copper is a kind of imported beryllium copper.
c17200 beryllium copper, the full range of beryllium copper is known as "the king of non-ferrous metal elasticity". It is used for all kinds of micro-motor brushes, switches, relays,connectors, temperature sensors that require high strength, high elasticity, high hardness, and high wear resistance. With the increasing requirements for the reliability and service life of the springs and various springs of the controller, the demand for beryllium copper will also increase.
Features
Beryllium copper alloy integrates excellent mechanical properties, physical properties and chemical properties. After heat
treatment (solution treatment and aging treatment), it has high strength limit, elastic limit, yield limit and fatigue limit
equivalent to that of special steel. It also has high electrical conductivity, thermal conductivity, high hardness, corrosion
resistance, wear resistance, good casting performance, non-magnetic and impact and non-spark characteristics, and is widely used in mold manufacturing, machinery, electronics and other industries. No blisters, pores, balanced hardness, dense structure, high strength, good thermal conductivity, good electrical conductivity, corrosion resistance, excellent wear resistance, good processing performance, stable performance under high pressure conditions, non-magnetic, Excellent polishing performance, good anti-adhesion performance.
treatment (solution treatment and aging treatment), it has high strength limit, elastic limit, yield limit and fatigue limit
equivalent to that of special steel. It also has high electrical conductivity, thermal conductivity, high hardness, corrosion
resistance, wear resistance, good casting performance, non-magnetic and impact and non-spark characteristics, and is widely used in mold manufacturing, machinery, electronics and other industries. No blisters, pores, balanced hardness, dense structure, high strength, good thermal conductivity, good electrical conductivity, corrosion resistance, excellent wear resistance, good processing performance, stable performance under high pressure conditions, non-magnetic, Excellent polishing performance, good anti-adhesion performance.
Applications
Injection molds and high pressure blow molds, mold inserts, rapid cooling, aluminum alloy mold inserts, increase strength, wear resistance and shorten the injection cycle, hot runner nozzles, electrodes and punch materials, not affected by magnetic molds, non-magnetic tools , High thermal conductivity bearings can make mirrors with high surface accuracy. Commonly used beryllium copper grades are as follows: C17200 / C17300 / C17000 are high-strength deformed alloys,
C17500 / C17510 are highly conductive deformable alloys;
BeA-275C/BeA-20C is a high-strength casting alloy;
BeA-10C/BeA-50C is a highly conductive casting alloy.
Chemcial Composition:
|
Grade
|
Be
|
Co
|
Ni
|
Cu
|
Si
|
Fe
|
Al
|
|
C17000
|
0.55-0.75
|
0.35-0.65
|
|
Bal.
|
0.2-0.35
|
|
|
|
C17200
|
1.9-2.15
|
2.35-2.7
|
0.20-0.25
|
Bal.
|
＜0.15
|
＜0.15
|
＜0.15
|
|
C17500
|
0.4-0.7
|
2.4-2.7
|
0.01-0.15
|
Bal.
|
≤0.2
|
≤0.1
|
≤0.2
|
Mechanical Property：
|
Grade
|
Strength of extension(MPA)
|
Yield Strength (0.2% MPA)
|
Elongation(106psi)
|
Hardness(HRC)
|
Conductivity (IACS%)
|
Density(g/cm3)
|
Heat conductivity (W/m.k20℃)
|
|
C17000
|
1105
|
1035
|
19
|
36-42
|
18
|
8.3
|
105
|
|
C17200
|
1070
|
1000
|
19
|
26-32
|
25
|
8.6
|
120
|
|
C17500
|
1050
|
1000
|
20
|
36-42
|
50
|
8.85
|
235
|
Company Introduction
Jiangsu DZX Technical Co.,Ltd was established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.
We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of
wire,strip,ribbon,bar,tube,plate and etc.
The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality".
