Quick Details
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
10.85
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
Dali
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Deutz
-
Forward Shift Number:
-
4
-
Dimensions (L x W x H) (mm):
-
7970mm*1920mm*2180
-
Cargo Tank Dimension:
-
10T
-
Application:
-
underground mining
-
Engine:
-
BF4M1013EC
-
power:
-
115KW
-
Payload:
-
10T
-
color:
-
customized
-
weight:
-
10.85T
-
after-sales service:
-
Engineers available to service machinery overseas
-
Diesel tank capacity:
-
180L
-
Emission standards:
-
Europe II/CNII
-
emissions:
-
4.764L
Quick Details
-
Condition:
-
New
-
Horsepower:
-
115KW
-
Emission Standard:
-
Euro 3
-
Market Segement:
-
Mining transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
10.85
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
Dali
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Deutz
-
Forward Shift Number:
-
4
-
Dimensions (L x W x H) (mm):
-
7970mm*1920mm*2180
-
Cargo Tank Dimension:
-
10T
-
Application:
-
underground mining
-
Engine:
-
BF4M1013EC
-
power:
-
115KW
-
Payload:
-
10T
-
color:
-
customized
-
weight:
-
10.85T
-
after-sales service:
-
Engineers available to service machinery overseas
-
Diesel tank capacity:
-
180L
-
Emission standards:
-
Europe II/CNII
-
emissions:
-
4.764L
Product Description

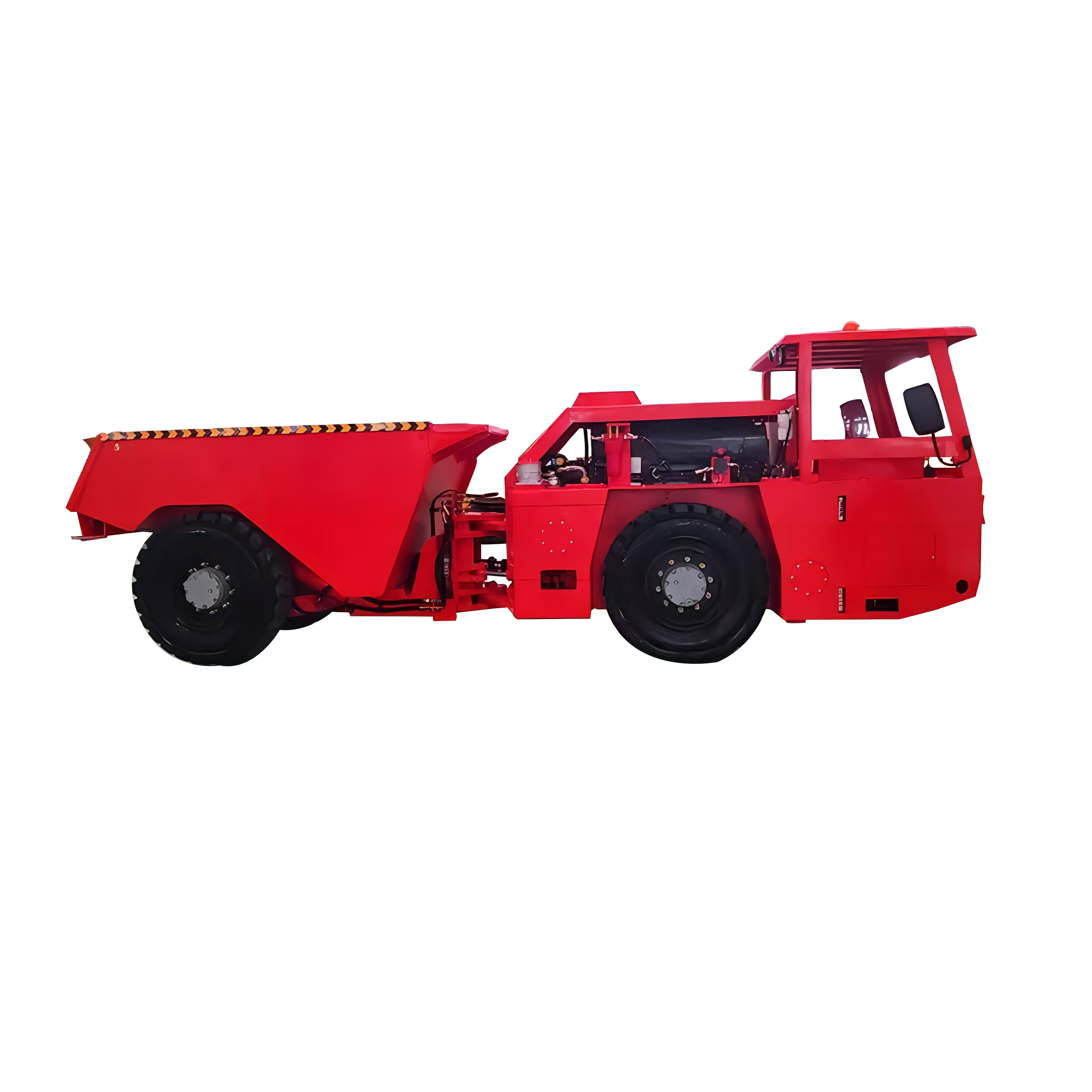

Low Height Underground Mining 10 Ton Dump Truck
| DEUTZ Engine | BF4M1013EC | 115kw | Emission standards | Europe II/CNII |
| Bore 108mm | Brake pressure | 13Mpa | ||
| Bucket | Volume | 5m ³ | Maximum torque | 520Nm/1400rpm |
| Payload | 10T | Swing Angle of rear bridge | 16 ° | |
| Dimension | L | 7970mm | The cylinder diameter | 108mm |
| W | 1920mm | trip | 130mm | |
| H | 2180mm | Angle of departure | 15 ° | |
| Min ground clearance | 265mm | |||
| The hydraulic parameters | To pressure | 16Mpa | To flow | 130L/min |
| Max traction | 143KN | Gradability(fully loaded) | 20° | |
| Speed(fully loaded) | Gear 1 | 0-5km/h | ||
| Gear 2 | 0-10.3km/h | |||
| Gear 3 | 0-17.9km/h | |||
| Gear 4 | 0-23.7km/h | |||
| Operation time | Bucket lift time | ≤10s | Emission standards | 4.764L |
| Down time | ≤9s | Weight | 10 | |
