Quick Details
-
Brand Name:
-
ZHONGYOU
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Four Column Hydraulic Press
-
Keyword:
-
Salt block press machine
-
Application:
-
Powder Forming
-
Color:
-
Customizable
-
Function:
-
Salt block press machine for animal
-
Name:
-
Pressing
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
Model:
-
315 tons
Quick Details
-
Machine Type:
-
Four-column Four-beam Hydraulic Press
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHONGYOU
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
Machine Size
-
Weight (T):
-
12 T
-
Motor Power (kw):
-
22 kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Four Column Hydraulic Press
-
Keyword:
-
Salt block press machine
-
Application:
-
Powder Forming
-
Color:
-
Customizable
-
Function:
-
Salt block press machine for animal
-
Name:
-
Pressing
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
Model:
-
315 tons

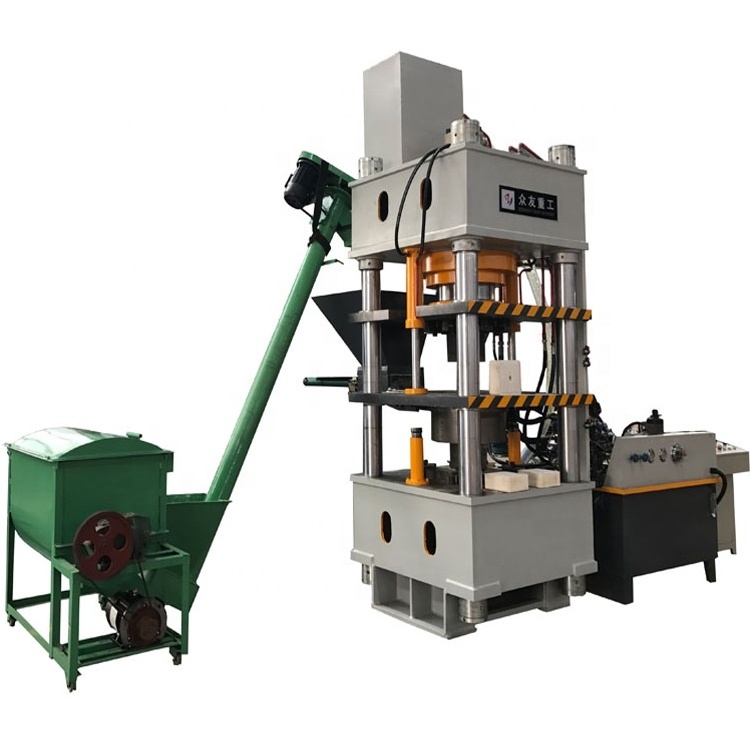

Hydraulic powder compacting hydraulic press for animal salt block 315 Ton
315 tons of cattle and sheep brick hydraulic press machine farm nutrient salt block full set of equipment is suitable for powder products ton press forming (salt powder, lime powder, calcium carbonate powder, iron powder, etc.)
The automatic powder forming hydraulic press machine adopts advanced integrated control of machine, electricity, liquid and gas, driving technology, and special models developed for powder metallurgy, ceramics, cemented carbide, magnetic materials, electrical contacts and neighboring industries. Press forming technology and control technology are of international advanced level.
The punching buffer, the material feeding, and the moving table can be added according to the needs of the customers.
| Parameters | Unit | YD28-315T |
| Nominal Force | KN | 3150 |
| System Pressure | Mpa | 25 |
|
Stroke Of Bottom Slider |
mm | 800 |
| Stroke Of Upper Slider | mm | 800 |
| Effective Woketable Size | mm | 840x800 |
| Slider Descending Speed | mm/s | 120 |
| Slider Pressing Speed | mm/s | 12-30 |
| Slider Return Speed | mm/s | 130 |
The parameters are for reference only. And specifications depends on the specific situation.
1. The low-power, high-pressure hydraulic cattle and sheep automatic salt block press machine is a four-column hydraulic press with high pressure and high precision.
2. The hydraulic press machine adopts advanced control of machine, electricity, liquid and gas, and has automatic feeding device and floating pressure to effectively control the molding density of the product.
3. Centralized control by PLC and man-machine interface , and mechanical limit device is installed at the same time to ensure the consistency of products.
4. High precision material for the body of the machine, which is not easily deformed.
5. Hydraulic control with cartridge valve integrated system reduces continuous piping and leaks.
6. It Equipped with oil cooling device .
It can not only suppress the salt block, but also is suitable for the press forming process of various other plastic materials, and can produce products of different shapes, specifications and sizes by changing the mold, which has strong practicability.
