Quick Details
-
Brand Name:
-
wodata
-
Use:
-
FTTX
-
Warranty Time:
-
3 Years
-
Max Data Rate:
-
41.25Gbps (4x 10.3125Gbps)
-
Form Factor:
-
QSFP+
-
Wavelength:
-
850nm
-
Max Cable Distance:
-
150m@OM4/100m@OM3
-
Connector:
-
MTP/MPO-12 Male
-
Media:
-
MMF
-
Transmitter Type:
-
VCSEL
-
Receiver Type:
-
PIN
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
40G QSFP+
-
Place of Origin:
-
GUA
-
Brand Name:
-
wodata
-
Use:
-
FTTX
-
Warranty Time:
-
3 Years
-
Max Data Rate:
-
41.25Gbps (4x 10.3125Gbps)
-
Form Factor:
-
QSFP+
-
Wavelength:
-
850nm
-
Max Cable Distance:
-
150m@OM4/100m@OM3
-
Connector:
-
MTP/MPO-12 Male
-
Media:
-
MMF
-
Transmitter Type:
-
VCSEL
-
Receiver Type:
-
PIN

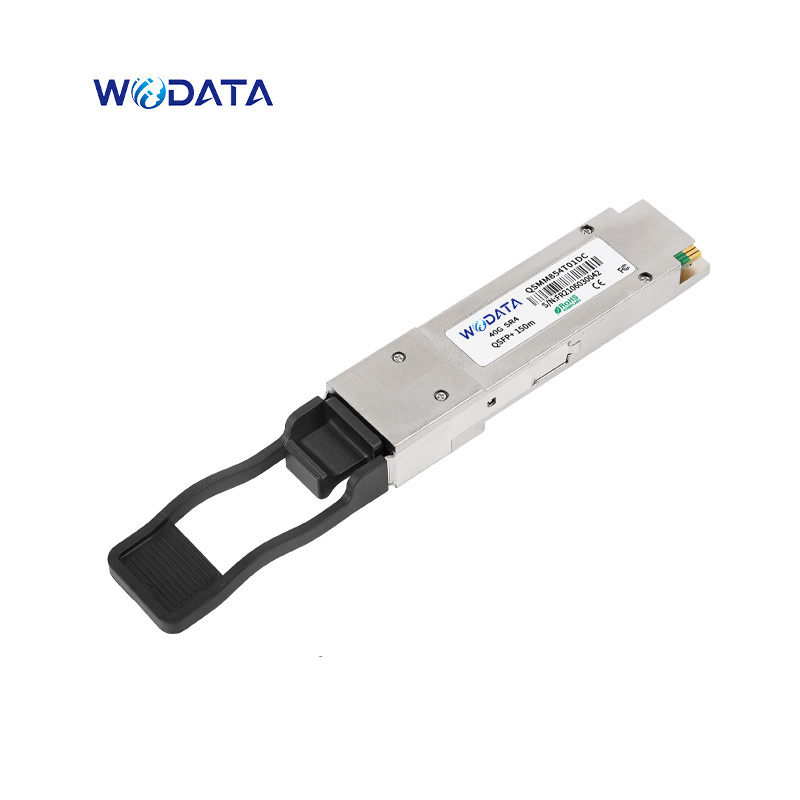

40G SR4 QSFP+ Optical Transceiver
The QSFP+ module adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.
Product Highlights
Max. Power Consumption 1.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3ba
Support 40G to 4x10G Breakout Application
WD BOX - Support Real-time Configuration
Compliant to SFF-8436 and QSFP MSA
Hot Pluggable QSFP+ Form Factor
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3ba
Support 40G to 4x10G Breakout Application
WD BOX - Support Real-time Configuration
Compliant to SFF-8436 and QSFP MSA
Hot Pluggable QSFP+ Form Factor
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
|
Form Factor
|
QSFP+
|
Max Data Rate
|
41.25Gbps (4x 10.3125Gbps)
|
||
|
Wavelength
|
850nm
|
Max Cable Distance
|
150m@OM4/100m@OM3
|
||
|
Connector
|
MTP/MPO-12 Male
|
Media
|
MMF
|
||
|
Transmitter Type
|
VCSEL
|
Receiver Type
|
PIN
|
||
|
TX Power
|
-7.1~1.9dBm
|
Receiver Sensitivity
|
-10.3dBm
|
||
|
Powerbudget
|
3.5dB
|
Receiver Overload
|
2.4dBm
|
||
|
Typical Power Consumption
|
<1.5W
|
Extinction Ratio
|
＞3dB
|
||
|
DDM/DOM
|
Supported
|
Commercial Temperature Range
|
0 to 70°C (32 to 158°F)
|
||
|
Bit Error Ratio (BER)
|
1E-12
|
|
|
||
|
Protocols
|
IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
|
|
|
||
|
PACKAGE STYLE
|
QSFP+ SR4
|
QSFP+ LR4
|
QSFP+ ER4
|
QSFP+ ZR4
|
|
WAVELENGTH
|
850nm
|
CWDM
|
CWDM
|
1310nm
|
|
TX OUTPUT(DBM)
|
-7.6～0.5
|
-7～2.3
|
-3.7～4.5
|
1~6dBm
|
|
RX SENSITIVITY(DBM)
|
-9.5
|
-11.5
|
-15.8
|
<-25dBm
|
|
REACH
|
150M
|
10KM
|
40KM
|
80km
|
|
INTERFACE
|
MPO
|
LC
|
LC
|
Duplex LC
|
|
FIBER TYPE
|
MM
|
SM
|
SM
|
SM
|
