Quick Details
-
Brand Name:
-
FCST
-
Model Number:
-
8mm 200m
-
Surface Treatment:
-
Fibreglass Reinforced Plastic
-
Diameter:
-
8mm
-
Lenght:
-
200m
-
Fiber Glass Content:
-
75-80%
-
Density:
-
> 1.9gr/cm3
-
Working Environment:
-
-40 to +80
-
Fiber Glass Rod Inner:
-
Extruded by fiber glass and high strength resin at high temperature
Quick Details
-
Application:
-
Cable Pulling And Duct Cleaning
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
FCST
-
Model Number:
-
8mm 200m
-
Surface Treatment:
-
Fibreglass Reinforced Plastic
-
Diameter:
-
8mm
-
Lenght:
-
200m
-
Fiber Glass Content:
-
75-80%
-
Density:
-
> 1.9gr/cm3
-
Working Environment:
-
-40 to +80
-
Fiber Glass Rod Inner:
-
Extruded by fiber glass and high strength resin at high temperature
Product Views

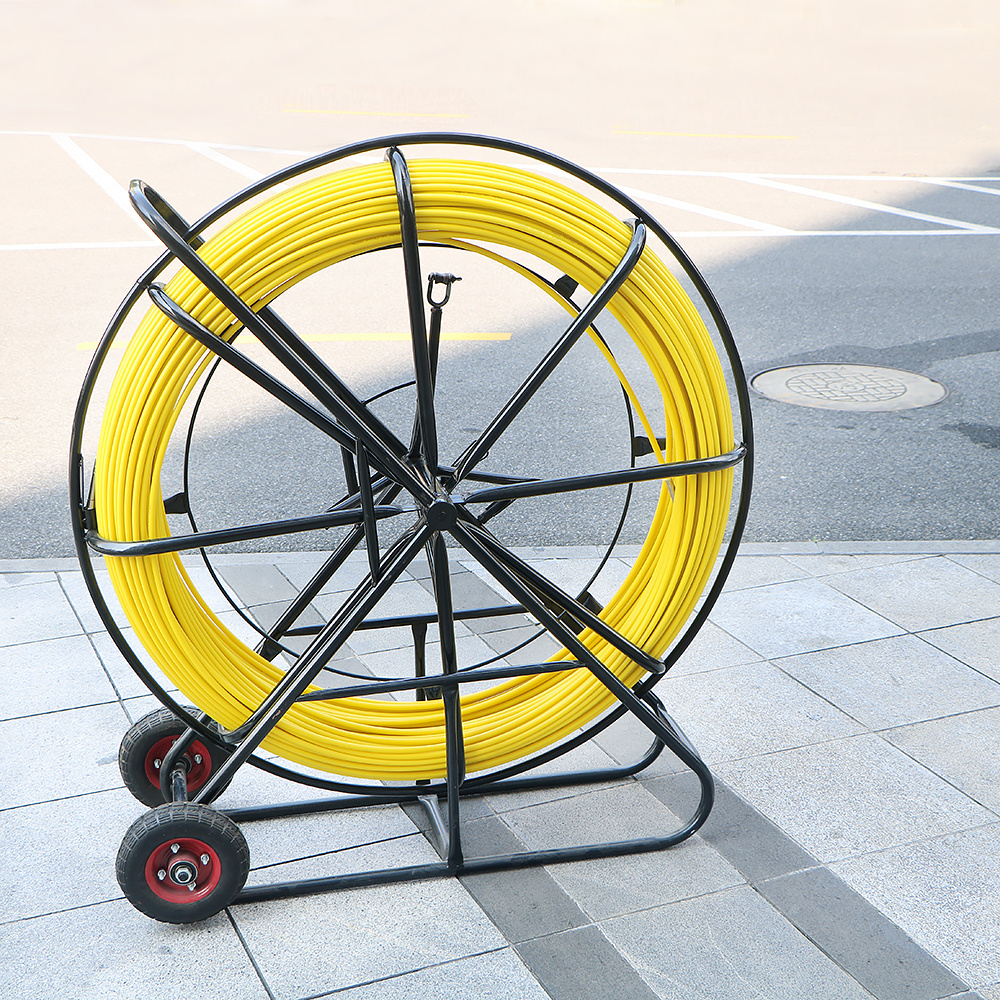

Fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate.The FRP push pull rod will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.
|
Specification
|
Rod Diameter (mm)
|
8mm
|
|
|
Rod Length (m)
|
200m
|
|
|
Frame Spec. (mm)
|
1300x450x1330
|
|
Material
|
Fiber glass rod inner
|
Extruded by fiber glass and high strength resin at high temperature
|
|
|
Fiber glass rod outer
|
High Density polyethylene coating
|
|
|
Metal Frame
|
Steel with high-temperature sprayed plastic or hot dip galvanized
|
|
Physical Property
|
Fiber glass content
|
75-80%
|
|
|
Density
|
> 1.9gr/cm3
|
|
|
Working environment
|
-40 to +80
|
|
|
Minimum Pulling strength
|
4000N +/-5%
|
|
|
Consistency of rod
|
137gr/m
|
|
|
Flexural Modulus
|
> 46.500Mpa
|
|
|
Elongation at break
|
2.5-3%
|
|
|
Min Bending Radius
|
388mm
|
