Quick Details
-
Brand Name:
-
Bock
-
Car Model:
-
City Bus/coach/sightseeing car
-
Certification:
-
ISO9001/TS16949/CQC
-
Model Number:
-
Germany, FK40/655K
-
Item Name:
-
Bock FK40 compressor
-
Displacement:
-
650 cc/r
-
Size:
-
385*325*370mm
-
Magnetic clutch:
-
Grooves as you requires
-
Application:
-
Yutongbus , Kinglong, etc
-
Condition:
-
Orignal New
-
Supply ability:
-
5000 sets/Month
-
Refrigerant:
-
R134A/electric Car Air Conditioner
-
Clutch brand:
-
Linnig/Lang or China made
Quick Details
-
OE NO.:
-
bus
-
Warranty:
-
1-2 year
-
Place of Origin:
-
Germany
-
Brand Name:
-
Bock
-
Car Model:
-
City Bus/coach/sightseeing car
-
Certification:
-
ISO9001/TS16949/CQC
-
Model Number:
-
Germany, FK40/655K
-
Item Name:
-
Bock FK40 compressor
-
Displacement:
-
650 cc/r
-
Size:
-
385*325*370mm
-
Magnetic clutch:
-
Grooves as you requires
-
Application:
-
Yutongbus , Kinglong, etc
-
Condition:
-
Orignal New
-
Supply ability:
-
5000 sets/Month
-
Refrigerant:
-
R134A/electric Car Air Conditioner
-
Clutch brand:
-
Linnig/Lang or China made

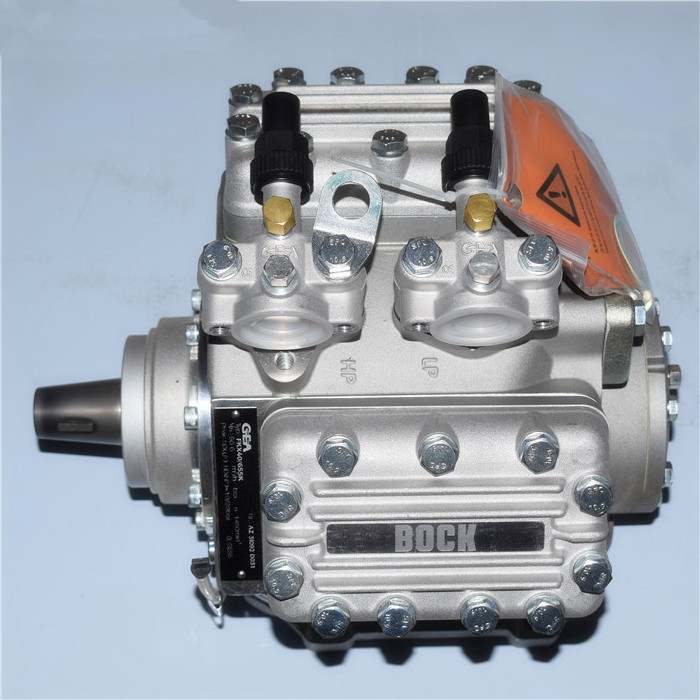

Genuine GEA Bock FKX40/655K compressor H13004503 for Yutong Bus air conditioning
GEA Bock FK40 compressor in the FK series are the result of decades of experience in mobile refrigeration. Particularly when it comes to bus air-conditioning, they are the standard of all renowned manufacturers. Unsurpassed lightweight, compact and robust desigh with a large speed range - these are just a few of the outstanding features of this unique product range with 2, 4 and 6 cylinder compressors.
Tailor-made Bock FK40 compressor to the individual application with many different design versions.
- One special innovation constitutes the so-called K version with a unique valve plate system for the toughest demands in mobile air-conditioning.
- N version Bock FK40 compressor with universal valve plate system for all ranges of application. K version Compressor with unique valve plate system for the toughest demands in bus air-conditioning.
Bock FK40 compressor
|
Number of cylinders / Bore / Stroke |
4 / 65 mm / 49 mm |
|
Swept volume |
650 cm³ |
|
Displacement (1450 ¹/min) |
56,60 m³/h |
|
Mass moment of inertia |
0,0043 kgm² |
|
Weight |
31 kg |
|
Permissible range of rotation speeds |
500 - 2600 ¹/min |
|
Max. permissible pressure (LP/HP) 1)
|
19 / 28 bar |
|
Connection suction line SV |
35 mm - 1 3/8 " |
|
Connection discharge line DV |
35 mm - 1 3/8 " |
|
Lubrication |
Oil pump |
|
Oil type R134a, R404A, R407C/F, R507, R448A, R449A |
FUCHS Reniso Triton SE 55 |
|
Oil type R22 |
FUCHS Reniso SP 46 |
|
Oil charge |
2,0 Ltr. |
|
Dimensions Length / Width / Height |
385 / 320 / 370 mm |
