Quick Details
-
Brand Name:
-
AOHOY
-
Connection:
-
Clamp
-
Handle:
-
Stainless Steel 304
-
Temperature:
-
266° F (130°C) silicone
-
Pressure:
-
Max 10 Bar (145 PSI)
-
Body material:
-
Stainless Steel 304 316L
-
Certificate:
-
ISO 9001, CE
Quick Details
-
Port Size:
-
3/4"-10", Customized
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOHOY
-
Connection:
-
Clamp
-
Handle:
-
Stainless Steel 304
-
Temperature:
-
266° F (130°C) silicone
-
Pressure:
-
Max 10 Bar (145 PSI)
-
Body material:
-
Stainless Steel 304 316L
-
Certificate:
-
ISO 9001, CE
304 316L Sanitary Stainless Steel triclamp Tri-clamp Butterfly Valve
Specification
|
Pipe Size
|
1/2"-10", DN10-DN200
|
|
Material
|
304/316, 1.4301/1.4404
|
|
Standard
|
DIN/SMS/ISO/3A
|
|
Surface treatment
|
CNC machined Ra<0.8μm
|
|
Connection Mode
|
Thread/Clamp/weld
|
|
Working pressure
|
0-10 BAR
|
|
Working temperature
|
Max 180°C (Silicone), Max 140°C (EPDM), Max 280°C (PTFE)
|

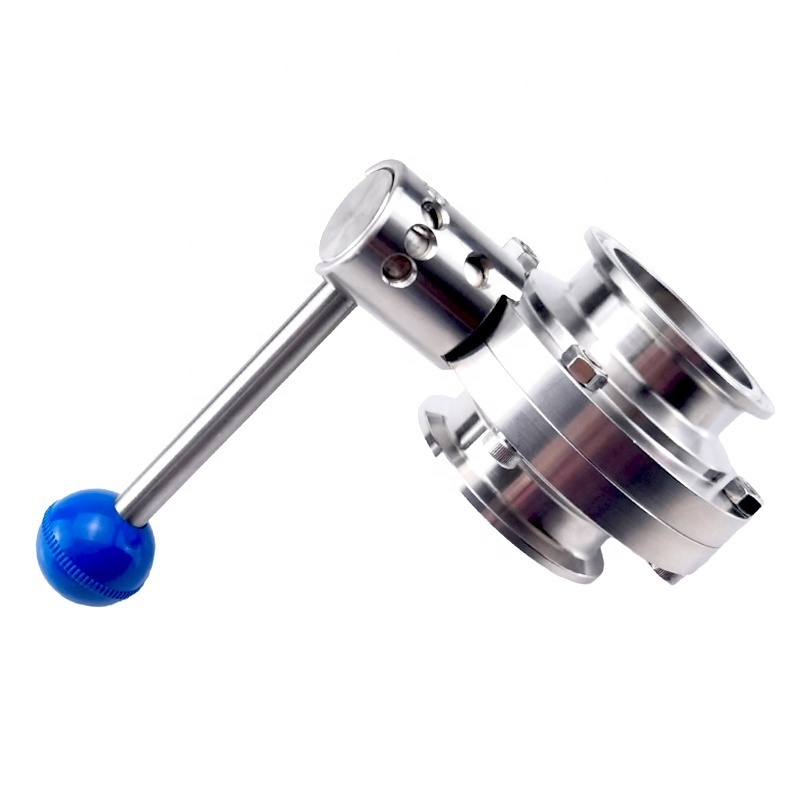

Real product picture
