Quick Details
-
Application:
-
Other, Road/Slope/retaining wall
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
LX geosynthetics
-
Material:
-
HDPE
-
Thickness(textured):
-
1.4mm-1.6mm
-
Thickness(smooth):
-
1.0mm - 1.2 mm
-
Color:
-
Black
-
Height:
-
50-200mm
-
Free sample:
-
Available
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Other, Road/Slope/retaining wall
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
LX geosynthetics
-
Material:
-
HDPE
-
Thickness(textured):
-
1.4mm-1.6mm
-
Thickness(smooth):
-
1.0mm - 1.2 mm
-
Color:
-
Black
-
Height:
-
50-200mm
-
Free sample:
-
Available
HDPE GEOCELL GRAVEL HONEYCOMB DRIVEWAY
Product Description

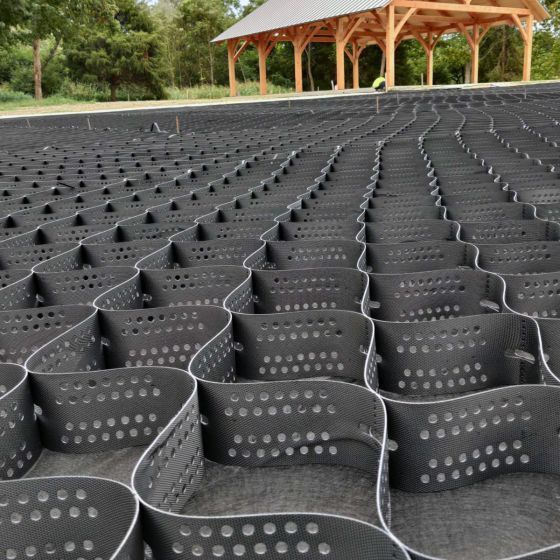

HDPE GEOCELL is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc. Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and storm water control in channels.
Application
Retaining Load
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Road construction.
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior,material for infill as well as reducing the structural support layer thickness.Typical stabilization applications include reinforcement of base and sub-base layers in flexible pavements, including: roads, railway substructure and ballast confinement; working platforms in inter modal ports; airport runways.
Slope protection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques ensures the long-term. stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Retaining wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls) or steep faces, walls and irregular topography
Installation Instructions
Installation Method:
1. Base preparation
2. Deploy, connection and stablize the geocell
3. Infill materials- such as soil,sand, stone, concrete or recycle materials
4. Compact the infilled materials or vegetation.
2. Deploy, connection and stablize the geocell
3. Infill materials- such as soil,sand, stone, concrete or recycle materials
4. Compact the infilled materials or vegetation.
Specification
Packing & Delivery
Packaging:
Strips packaging or Pallet Packaging
delivery time: Within 7 workdays after receiving the deposit payment
Producing capacity : 40000㎡/day
delivery time: Within 7 workdays after receiving the deposit payment
Producing capacity : 40000㎡/day
