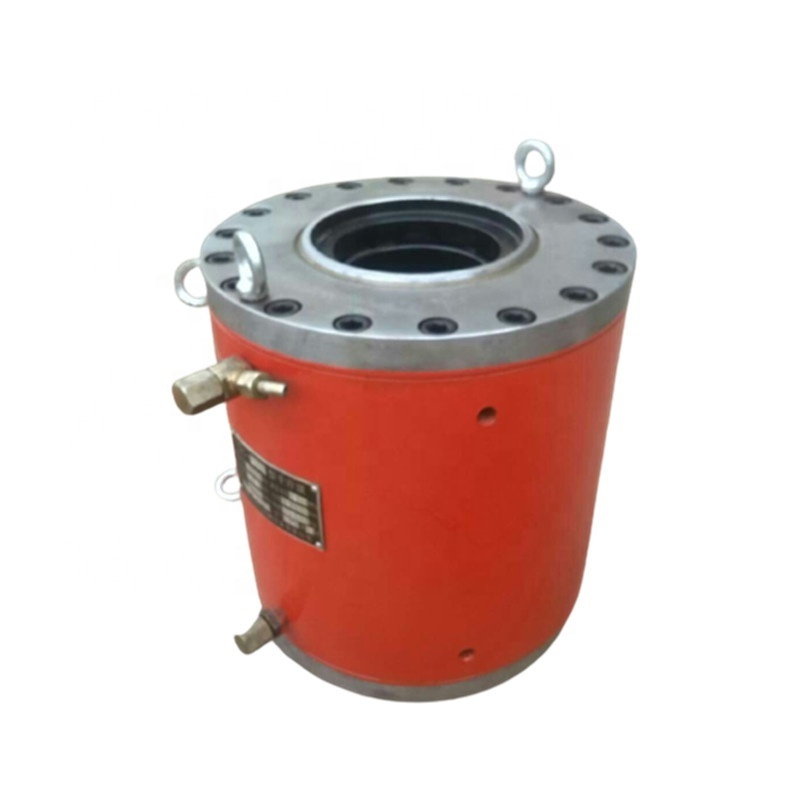

Discount hollow plunger hydraulic jack cylinder 500 ton 5000kn for Tensioning Steel Strand

Product Description

Specifications

1. Tpe: YDC multi-strands hydraulic jack

2. Capacities(load) : We have jacks of 650kn, 1000kn, 1500kn, 2000kn, 2500kn, 3000kn, 4000kn, 4500kn, 5000kn, 6500kn, 7500kn, 8000kn, 8500kn, 9000kn, 10000kn, 12000kn or more larger).

3. Usage: our YDC Cross Core Jack can tension numbers of pc stands from 1 to 55 strands.

4. Matched Oil Pump: 50Mpa, 63Mpa Electric Oil Pump

4. Application: bridges, high buildings, coal mine , railway and subway, water conservancy and hydropower engineering .

5. Features: i t can tension the followings PC Strand and Stel Rebar
A It can tension standard pc strand diameter 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B It can tension non-standard pc strands diameter 8.0mm, 9.52mmn, 10.8mm, 12.9mm. 17.8, 21.6, 21.8mm, ect.
C It also can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar

6. OEM service: we provide OEM serives, you can put your logo on our products and equipement.

7. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea

8. Warranty Time : One Year, we will send you Repair Kits if you need any time.

The technical parameter of hollow hydraulic jack

Types of YDC	Tension Force	Pulling Stroke	operating oil pressure	Tensioning cylinder area	center hole diameter	Dimensions	E(mm)	D(mm)	K(mm)	L(mm)
YDC650	650	200	50	13745	Φ63.5	Φ180×330	120		700	1350
YDC1100	1100	200	60	20498	Φ80	Φ225×330	150	230	700	1350
YDC1500	1500	200	53	30222	Φ94	Φ270×330	170	280	780	1420
YDC2000	2000	200	59	39760	Φ110	Φ295×330	190	324	780	1490
YDC2500	2500	200	60	50579	Φ122	Φ325×330	200	360	780	1490
YDC3000	3000	200	50	60082	Φ153	Φ400×525	230	400	780	1500
YDC3500	3500	200	50	69331	Φ157	Φ420×525	240	420	780	1510
YDC4000	4000	200	52	79128	Φ160	Φ446×580	250	446	780	1510
YDC4500	4500	200	50	90981	Φ180	Φ480×600	270	480	800	1510
YDC5500	5500	200	50	113747	Φ210	Φ540×630	290	540	850	1570
YDC6500	6500	200	50	134706	Φ240	Φ580×680	310	580	850	1570
YDC8000	8000	200	50	159043	Φ240	Φ640×730	340	640	860	1580
YDC10000	10000	200	50	202318	Φ280	Φ720×850	380	720	870	1590
YDC12000	12000	200	50	231299	Φ280	Φ750×900	400	750	880	1600

Notice:  The tension journey(stroke) and capacity(tons) of this type jack can be customized according to your requirement.

Our Advantages:

We supply full complete set anchor system and equipment for construction, please see following:

A:  Mono strand anchor system: 5mm,7mm, 8.0mm, 9.0(9.52mm) anchors for steel wire

B:  Multi strand anchor system: 9.52mm, 12.7mm, 12.9mm, 15.24mm, 15.7mm, 21.6mm, 22mm  anchors for pc strand.

Flat anchor system

C:   Steel rear anchor system: 16mm, 18mm. 22mm, 24mm, 26mm, 28mm, 32mm, ect.

D: Equipement: hydraulic jack, oiln pump, metal ducts making machine, pc strand(steel wire) pulling machine, grout pump and mixer, v acuum pump, embosisng machine(bulding jack), extruding machine, ect.

E: Building materials: unbonded pc strand, bonded(bare) pc strand, 4mm to 10mm pc steel wire, metal ducts, plastic ducts, steel strip.

PC Strand:

Corrugated Pipes(Ducts)
