Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Voltage:
-
based on customer
-
Dimension(L*W*H):
-
according to model
-
Weight (KG):
-
1000 kg
-
After Warranty Service:
-
2 Years
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Keywords:
-
Automatic brick Making Machine
-
Certification:
-
ISO
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Voltage:
-
based on customer
-
Dimension(L*W*H):
-
according to model
-
Weight (KG):
-
1000 kg
-
After Warranty Service:
-
2 Years
-
Brick type:
-
Hollow Brick Concrete Brick Hole Brick
-
Keywords:
-
Automatic brick Making Machine
-
Certification:
-
ISO

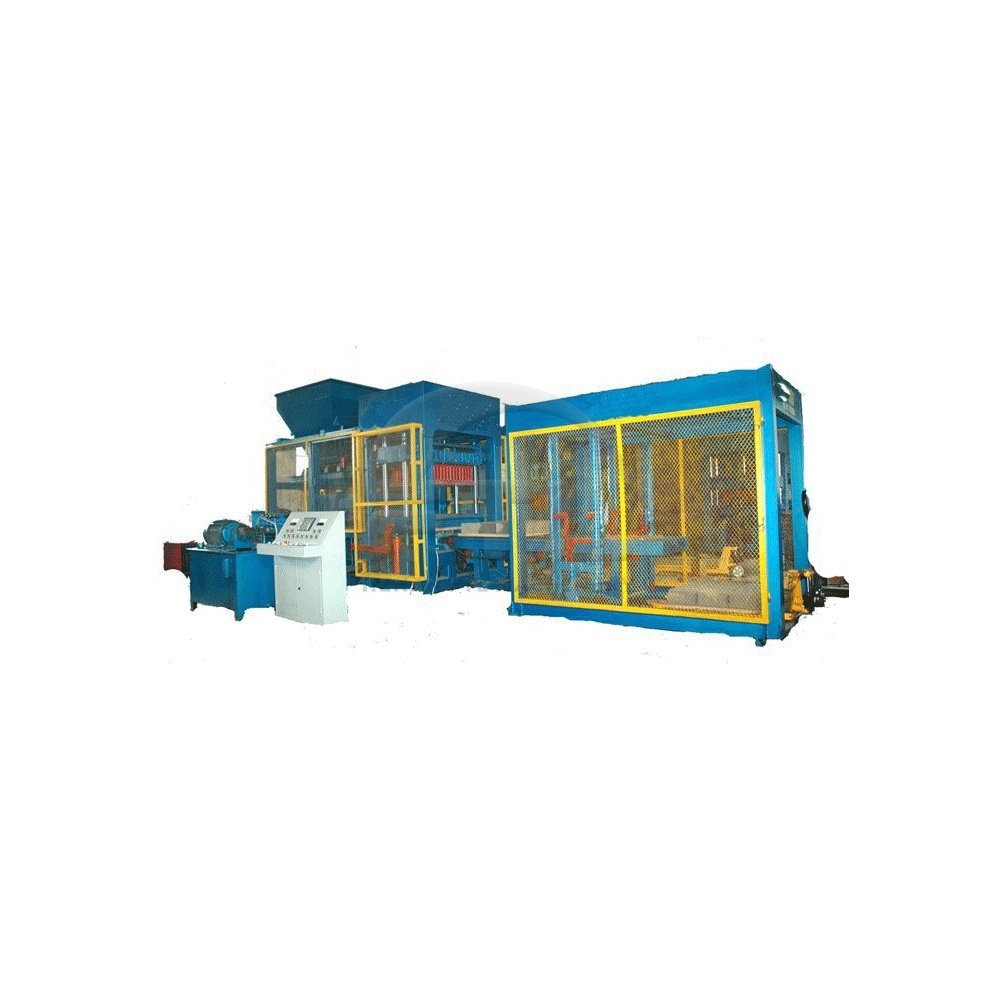

FTL Automatic Hydraulic Brick Making Machine
The production capacity depends on this forming machine and it is also the essential part of the whole production line. You can change moulds on this parts to make different shapes of blocks, bricks, colored-paving stones and curbs.
• The process is controlled by PLC and fitted with remote control device. For PLC control system, we usually use Japan Mitsubishi or Taiwan Brand.
• The electricity motor for host machine we use Germany Siemens motor, for other parts ,we use CE motor.
• about the switches, we will use France Schneider or China CHNT.
• Rakes in several rows make sure raw materials fed well-distributed.
• Hydraulic components we use Taiwan JiuGang famous brands.
• The demoulding synchronizer avoids the damage to concrete products.
• The vibration system contains two parts, one is up-mould vibration box, it is electricity motor to supply the power for up-mould vibration box. And the down mould, there have one big vibration. When the scatter material work finish, the hydraulic power with the two vibration power will assure the good quality for product.
• The mould is processed with carburizing, nitriding, wolfram carbide and quenching which ensures its strength reach to 54~58 HRC and can be used 100 thousand times.
1. Energy saving: compared with other vibration machine, thqm vibration machine can save more than 40% energy;
2. Short molding cycle and high production efficiency;
3. The fabric is uniform, and the products reach the double control standard of strength grade and density grade;
4. Super large table design, high product output;
5. The whole machine has low noise and long service life.
