- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Nanbei
-
Voltage:
-
220/110V 50/60HZ
-
Power:
-
5KW
-
Dimension(L*W*H):
-
1370*700*680 700*680*740MM
-
Weight:
-
123 KG
-
After-sales Service Provided:
-
lab essential oil extract rotary evaporator
-
Evaporator flask:
-
20L flange mouth:95mm
-
Collect flask:
-
10L flange mouth:60mm
-
Speed mode:
-
Frequency Control speed
-
Speed Display:
-
digital
-
Temp. control:
-
intelligent temp. control
-
Sealing method:
-
PTFE
-
Certification:
-
CE ISO
-
Marketing Type:
-
vacuum rotary evaporator
Quick Details
-
Applicable Industries:
-
laboratory
-
Core Components:
-
other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nanbei
-
Voltage:
-
220/110V 50/60HZ
-
Power:
-
5KW
-
Dimension(L*W*H):
-
1370*700*680 700*680*740MM
-
Weight:
-
123 KG
-
After-sales Service Provided:
-
lab essential oil extract rotary evaporator
-
Evaporator flask:
-
20L flange mouth:95mm
-
Collect flask:
-
10L flange mouth:60mm
-
Speed mode:
-
Frequency Control speed
-
Speed Display:
-
digital
-
Temp. control:
-
intelligent temp. control
-
Sealing method:
-
PTFE
-
Certification:
-
CE ISO
-
Marketing Type:
-
vacuum rotary evaporator
mini distillation equipment lab essential oil extract rotary evaporator
1.Feature and Description
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display.

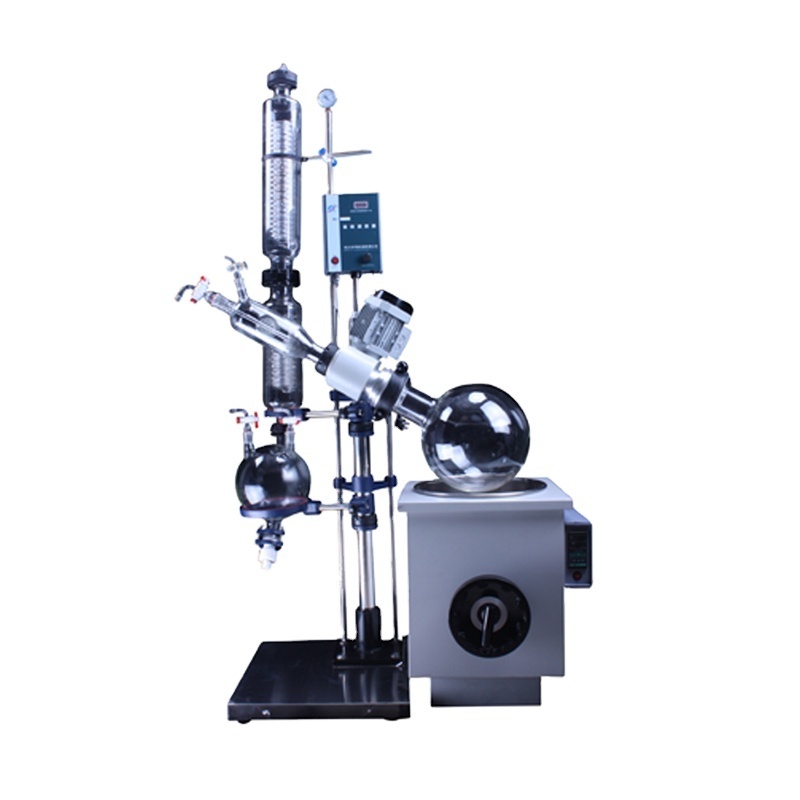

2.Picture for our product
3.Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.
4.Technical data
| Model | NBRE-1002 | NBRE-2002 | NBRE-3002 |
| Glass materials | GG-17 | ||
| Holder materials | Stainless steel | ||
| Pot shell materials |
Spray anti-corrosion 490*430*540mm |
Spray anti-corrosion 630*534*638mm |
Spray anti-corrosion 710*620*700mm |
| Pot bravery |
Stainless steel 350*220mm |
Stainless steel 450*250mm |
Stainless steel 550*280mm |
| Plate size | 474*474 | 534*504 | 804*574 |
| Evaporator flask |
10L Flange mouth:95mm |
20L Flange mouth:95mm |
30L Flange mouth:125mm |
| collect flask |
5L Flange mouth:50mm |
10L Flange mouth:60mm |
20L Flange mouth:60mm |
| Vacuum degree | 0.098Mpa | ||
| Rotary speed | 0-110RPM | ||
| Heating power | 3KW | 5KW | 8KW |
| Heating temp. | 0-400 | ||
| Lifting stroke | 180mm | ||
| Voltage | 220/110V 50/60Hz | 380V 50/60Hz | |
| Gross weight | 100kg | 123kg | 170kg |
| Lifting mode |
Manual lifting |
||
5.Packing and Shipping
6. Related Products
| 1L Rotary Evaporator | 100L Rotary Evaporator | Chiller For Rotary Evaporator |
Warranty and After-sale service
*We supply 1 year warranty and lifelong free technical guiding and training.
