Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Walwen
-
Model Number:
-
WI-10
-
Thickness:
-
3mm fiberglass rail and 2mm aluminium D-rung
-
Size:
-
6m
-
Model No:
-
WI-10
-
Packing:
-
Shrink Wrapped and carton caps
-
Gross weight:
-
15.83kg
-
Using length:
-
3.1m
-
Use:
-
Industrial
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Walwen
-
Model Number:
-
WI-10
-
Thickness:
-
3mm fiberglass rail and 2mm aluminium D-rung
-
Size:
-
6m
-
Model No:
-
WI-10
-
Packing:
-
Shrink Wrapped and carton caps
-
Gross weight:
-
15.83kg
-
Using length:
-
3.1m
-
Use:
-
Industrial

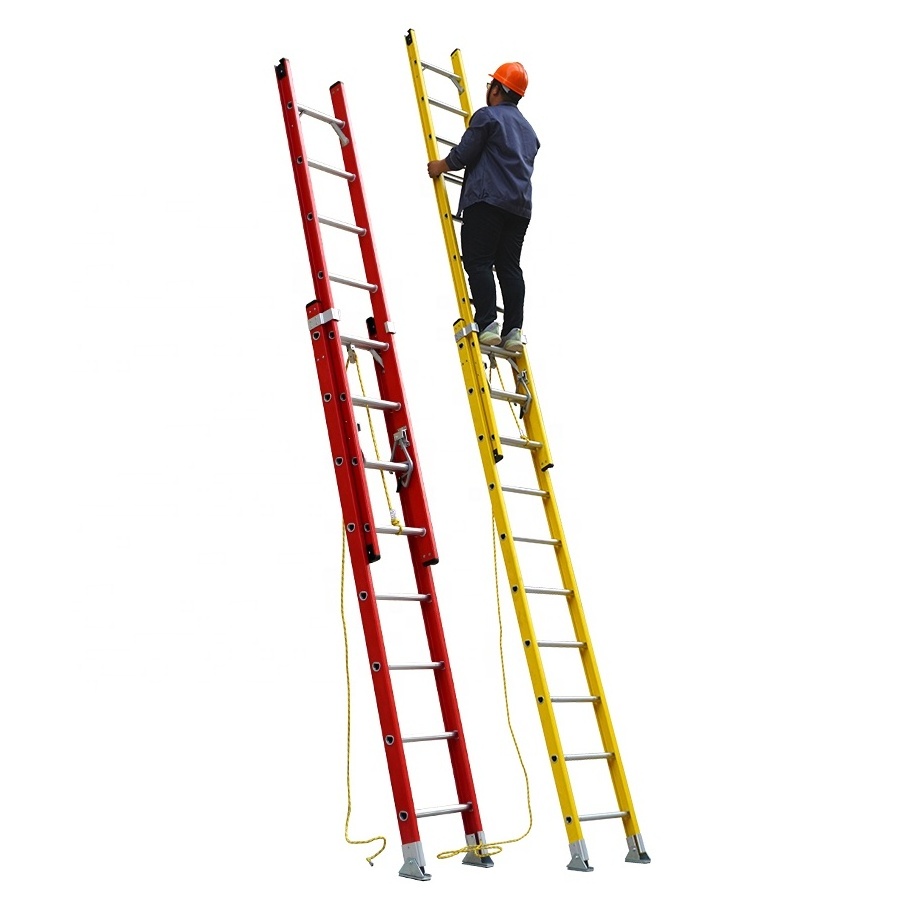

Fiberglass Extension Ladder
1. WALWEN Products are built to meet international Standards like American National Standards Institute(ANSI).
2. This fiberglass extension ladder loading capacity is 375lbs, type IAA special duty.
3. This ladder provides a simple, intuitive method of securing the fly and base sections of the ladder when extended.
4. The base and fly sections separate easily to use the base section as a single ladder.
5. With more than 16 years of development, WALWEN is surely able to satisify our customers and end users!
| TYPE IAA FIBERGLASS EXTENSION LADDER DATA SHEET | |||||||||
| ITEM NO. | NO. OF STEPS |
CLOSED HEIGHT
(CM) |
MAX. EXTENDED HEIGHT
(CM) |
PACKAGE
(PCS/CTN) |
NET WEIGHT
(KG) |
CAPACITY
(KG) |
RUNG DISTANCE
(CM) |
PACKING SIZE
(CM) |
CBM |
| WI-08 | 2*8 | 250 | 390 | 1pcs/ ctn | 13.2 | 170 | 30 | 250*43.5*16.5 | 0.179 |
| WI-10 | 2*10 | 310 | 510 | 1pcs/ ctn | 15.83 | 170 | 30 | 310*43.5*16.5 | 0.222 |
| WI-12 | 2*12 | 370 | 630 | 1pcs/ ctn | 18.68 | 170 | 30 | 370*43.5*16.5 | 0.265 |
| WI-14 | 2*14 | 430 | 750 | 1pcs/ ctn | 21.3 | 170 | 30 | 430*43.5*16.5 | 0.308 |
| WI-16 | 2*16 | 490 | 870 | 1pcs/ ctn | 23.9 | 170 | 30 | 490*43.5*16.5 | 0.351 |
| WI-18 | 2*18 | 550 | 960 | 1pcs/ ctn | 31.9 | 170 | 30 | 550*43.5*16.5 | 0.394 |
| WI-20 | 2*20 | 600 | 1050 | 1pcs/ ctn | 35 | 170 | 30 | 620*43.5*16.5 | 0.445 |
1. D-rung perfectly attached to side rails with swaging process
2. Smooth operating pully with polypropylene rope
3. Molded rung braces for increased durability
Heavy duty extruded rung locks are spring loaded to operate snoothly
D-rung with serrated and dimpled surface accross their entire width for anti slip purpose
1. Durable aluminium rail shield and shoe bracket protects rails from damage.
2. Strong aluminium bases of locks ensure 100% safety.
3. Swiveling shoes with slip-resistant pad and spur fron t
Secure lock device makes sure fly section would not drop sharply.
Molded mar-resistant caps for protecting work surface
WALWEN ladders are designed to meet international standards! We only make safe and user-friendly ladders!
