New type South C6 trimble RTK GPS survey H6 Handheld Controller GNSS RTK with 1598 Channels

New type South C6 trimble RTK GPS survey H6 Handheld Controller GNSS RTK with 1598 Channels

FOB Reference Price: Get Latest Price

≥1 Sets

US $4600

≥5 Sets

US $4300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Channels:: 1598

GPS:: L1, L1C, L2C, L2P, L5

GLONASS:: G1,G2

Galileo:: E1,E5A,E5B,AltBOC

BeiDou:: B1,B2,B3

SBAS:: L1

QZSS:: L1,L2C,L5

Operating Time:: 15h

Storage:: 8GB

Battery:: 6800mAh, 3.7V

Quick Details

Warranty:: 1 year

Place of Origin:: Guangdong, China

Brand Name:: South

Channels:: 1598

GPS:: L1, L1C, L2C, L2P, L5

GLONASS:: G1,G2

Galileo:: E1,E5A,E5B,AltBOC

BeiDou:: B1,B2,B3

SBAS:: L1

QZSS:: L1,L2C,L5

Operating Time:: 15h

Storage:: 8GB

Battery:: 6800mAh, 3.7V

Product Description

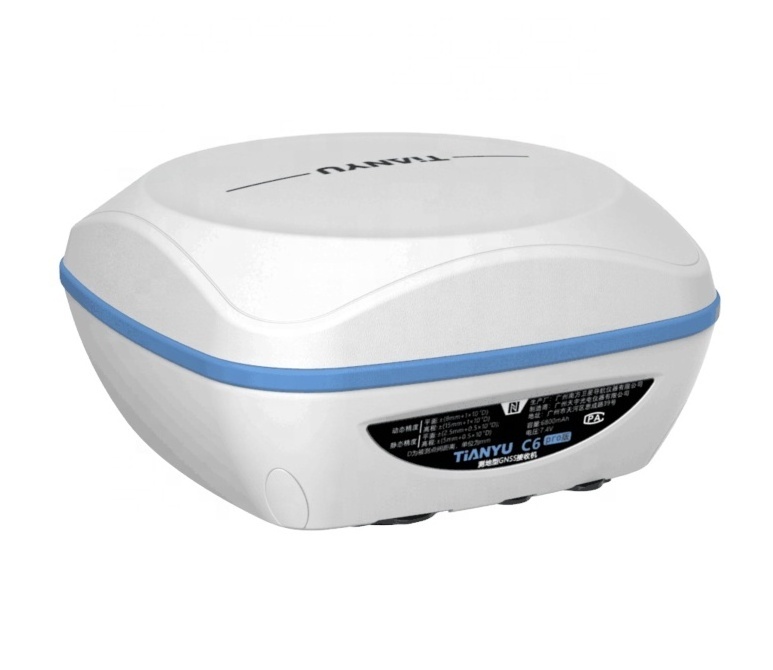

C6 GNSS POSITIONING SYSTEM

Key feature

Powered by Board-803
- New generation of powerful GNSS mainboard Board-803 with 1598 channels enables C6 to support a wide range of satellite signals.

5KM radio link

- Built-in transceiver integrated radio, working frequency 410-470MHz. TrimTalk450S, TrimMark3, SOUTH, CHC, SATEL, HI-TARGET are all compatible.

Barrier-Free Measurement

- Built-in 6800mAh high-capacity battery, the battery life is more than 15 hours, one charge, meets all-day work.

WiFi and Web Server

- By connecting through the integrated WiFi of C6, you can log on an user-friendly management platform on the browser of your phone or computer.

IMU survey

- Built-in IMU compensator, correct the coordinates according to the tilt direction and angle of the centering rod automatically within 60°.

Linux OS

Powered by the new generation of embedded Linux operating system, C6 has a greatly improved RTK performance and efficiency.

RECOMMENDED PARTNERS

Rugged Controller H6

Android 8.1
5” touch screen
4GB/32GB
Alphanumeric keypad
Ip67

Field Software

Android software SurvX
Easy-to-use work flow
Useful survey tools Google map supported
DXF, DWG import & display

External Radio S1

10/25W Output
SOUTH/Trimtalk Protocol
403-473MHz
Blue tooth 4.0
Ip67

RECEIVER SPECIFICATION
Channels	1598
GPS Tracking	L1,L1C,L2C,L2P,L5
GLONASS Tracking	G1,G2
BeiDou Tracking	B1,B2,B3
Galileo Tracking	E1,E5A,E5B,AltBOC
QZSS	L1,L2C,L5
SBAS	L1*
IRNSS	L5*
Positoning Rate	1-20Hz
RECEIVER ACCURACY
Code Differential	Horizontal 0.25m±1ppm (rms) Vertical 0.50m±1ppm (rms)
Static	Horizontal 2.5mm±0.5ppm (rms) Vertical 5mm±0.5ppm (rms)
Real-Time Kinematic	Horizontal 8mm±1ppm (rms) Vertical 15mm±1ppm (rms)
Network RTK	Horizontal 8mm±0.5ppm (rms)
*By controller	Vertical 15mm±0.5ppm (rms)
COMMUNICATION
I/O	5pin LEMO external power + RS232 7pin LEMO USB (OTG) + Ethernet Radio antenna interface
UHF Radio Module	X-link 1W 410-470MHz
Protocol	TrimTalk 450s, TrimMark3, PCC EOT, SOUTH
WiFi	802.11b/g/n Hotspot Data Link
Blue tooth	Blue tooth 2.1 +EDR and 4.0
NFC	<10cm
IMUMEASUREMENT
Tilt Range	Up to 60°
Accuracy	＜2cm(within 30°)＜5cm(within 60°)
INTERFACES
Button	One
LED Indicator	Blue tooth, Data Link, Satellite, Power
DATA STORAGE
Type & Storage	SSD 8GBExternal USB pen drive
Date Transfer	USB transfer Supports FTP/HTTP download
Format (Differential)	CMR+, sCRMx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
GPS Output Format	NMEA 0183, PJK plane coord., binary code, Trimble GSOF VRS, FKP, MAC
Network Model	NTRIP fully supportable
POWER SUPPLY
Battery	Internal Li-on, 6800mAh, 3.7V PowerCase supported
Operating Time	15h
PHYSICAL
Dimension	84mm (H), 135mm (W)
Weight with batt.	890g
Operating Temp.	-45°C to 60°C
Protection Class	IP67
Shock	2m drop on hard surface
Vibration	40G 10ms sawtooth wave

H6 RUGGED DATA COLLECTOR

- Android 8.1 Operating System, 64GB ROM

- 5" sunlight touch screen

- Full keypad, input faster

- 9200 mAh large capacity battery works more time

- 4G cellular module, dual sim card slot

SPECIFICATIONS——H6
SYSTEM
Operating system	Android 8.1
CPU	Octa-core 2.0GHz
RAM	4GB
ROM	64GB
Storage extension	Support 128GB extension
COMMUNICATION
SIM frequencies	GSM: B2/B3/B5/B8
		FDD-LTE :B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28
		TDD-LTE B38/B39/B40/B41
		TDSCDMA B34/B39
		WCDMA B1/B2/B5/B8
		CDMA1x/CDMA2000 BC0
Dual SIM card slot	Support two nano sim
USB	Type-C, support OTG
WiFi(WLAN)	IEEE 802.11a/b/g/n, 2.4G/5G
Blue tooth	V4.1
PHYSICAL
Display	5 inches capacitive touch screen (720×1280 dpi)
Keypad	Full keypad
Audio	Integrated speaker, microphone
Camera	13 megapixel camera with auto-focus
Flash light	High light Flash LED
Gyro	support
NFC	support
G-Sensor	support
Compass	support
GNSS	GPS/GLONASS/BDS
POWER
Battery Capacity	9200mAh
Stand-by Time	240 Hrs
Operating Time	15 Hrs
ENVIROMENT
Waterproof/Dustproof	IP67
Shockproof	1.5m
Operation temperature	-20℃~+60℃
Storage temperature	-30℃~+70℃
PHYSICAL PROPERTY
Size	235mm90mm35mm
Weight	520g

Packing

New type South C6 trimble RTK GPS survey H6 Handheld Controller GNSS RTK with 1598 Channels 1 set packed in 2 cartons: Size: South C6 GPS base: 37*39*20cm; 8KG South C6 GPS rover: 37*39*20cm; 5KG South C6 ranging pole& antennal bag:10*17*145cm;5KG

Payment & Shipping

Generally, we accept Advance T/T , PayPal and West union.

If you prefer other payment terms, please let us know.

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.

You can also choose your own shipping forwarder.

Return and warranty

1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one
week, and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
