Quick Details
-
Application:
-
Garage & Shed
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Green
-
Model Number:
-
GPF6112
-
Key word:
-
concrete pp hollow plastic formwork replace plywood
-
color:
-
white,green,red,black,etc
-
thickness:
-
10-25mm
-
density:
-
7500-15000gsm
-
dimension:
-
4*8/3*6 or bespoke
-
used times:
-
50-60times
-
prodction capacity:
-
10nos of 40HQ per day
-
hardness:
-
80-90
-
samples:
-
available
-
stripping oil:
-
no need
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support, Onsite Inspection, Onsite Installation, Onsite Training, Return and Replacement
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Garage & Shed
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Green
-
Model Number:
-
GPF6112
-
Key word:
-
concrete pp hollow plastic formwork replace plywood
-
color:
-
white,green,red,black,etc
-
thickness:
-
10-25mm
-
density:
-
7500-15000gsm
-
dimension:
-
4*8/3*6 or bespoke
-
used times:
-
50-60times
-
prodction capacity:
-
10nos of 40HQ per day
-
hardness:
-
80-90
-
samples:
-
available
-
stripping oil:
-
no need

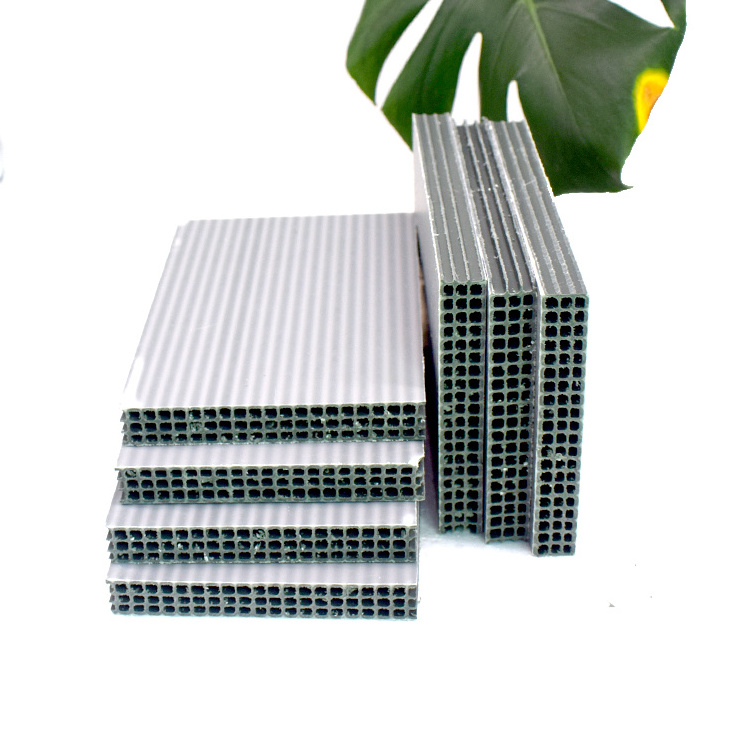

concrete pp hollow plastic formwork replace plywood
whatspp us for free samples by+8615830784341
DESCRIPTION
In particular, the plastic formworks offered by Green are suitable to realize concrete columns, pillars, walls, plinths, and foundations directly onsite.
Their modularity satisfies every construction and planning needs: columns and pillars of different shapes and dimensions, walls and foundations of different thickness and height.
Green plastic formwork are very light formworks in comparison with the traditional aluminium panel and plywood panels. Moreover, the plastic material they are made of allows the concrete not to stick: every element can be easily cleaned just with a little water.
All the Green products can be considered an excellent substitute for the old methods of building the structures.
One of the main characteristics of the Green's products is to be reusable for more than 100 times when properly maintained,and the averaged reused times is 50+
Main parameters for hollow formwork:
1. Dimensions: 4*8ft & 3*6 ft
2. Widely used Thk:10-18mm
3. Widely used colors: white grey, white black and black
4. AVERAGED Reused times:50+ times
5. Recyclable
NOTE:
1. samples are available for quality checking and testing.
2. Formwork used construction work sites are available for inspection.
First of all, we have 10+ years production experience and 8+ years exporting experience.
Secondly, we have our own unique formulations to make premium quality blue color patented plastic formwork.
In the third place, we are famous for highest efficiency,and any inquiry will be replied within 10miutes during workdays and within 1hour during non-work days.
On the fourth hand, we have a stronger extensive team composed of higher management team, sophisticated engineer team, professional sale team, experienced production team, logistics team and after-sale service team.
Last but one, all our samples are free for all clients to test the quality.
Last but not least, our formwork used construction sites are available for your inspection and we are able to guide you how to use formwork,and we can help you solve any problem related to formwork applications.
Below is testing report for our plastic formwork:
|
NO. |
Parameters |
standards |
Testing results |
|
1 |
static bending intensity |
≥ 18MPa |
20MPa |
|
2 |
elasticity modulus |
≥ 1200MPa |
1444MPa |
|
3 |
alkali resistance |
No bubble, no cra ck ing |
No bubble, no cracking |
|
4 |
charpy impact strength |
≥ 12.0KJ/m2 |
27.9KJ/M2 |
|
5 |
Maximum load retention |
≥ 80% |
97% |
|
6 |
Water absorption rate |
2.5% |
2.1% |
|
7 |
Variation Rate Of Heating Sizes |
Horizontal: -0.1% |
-0.15% |
|
Vertical : -1.05 |
-1.35% |
||
|
8 |
FR performance |
B1 |
B1 |
WE have been in plastic formwork field for 12 years and we have kept exporting plastic formwork to such countries as US, Germany,UK, Spain, Canada, Poland, Mexico, Australia, NZ , UAE, Italy, Spain, Korea, Thailand, Vietnam, Myanmar, and etc, and our premium quality,professional services , highest efficiency and integrity bring us many more and more honored clients.
We are seated in the industrial park of Zhangqiu District, Jinan City, Shandong Province and it takes 50 minutes to Jinan International Airpor t , and approx 1hour from Beijing/Shanghai to our city by air,and there are also bullet trains to our city.
Quality and integrity are everything for us.
Give us a chance,we will give you our life of quality and trust.
Q:What parameters should we offer us for pricing?
A:thk and qty
Q: What are your payment terms?
A: T/T, L/C, West Union, etc.
Q:What's your lead time?
A: 3 to 7 workdays upon getting DP?
Q: Are your samples free of charge?
A: Yes,Samples are arranged upon request within 2 workdays
Q: Can we visit your company to inspect products before delivery?
A: You are welcome to visit our company to inspect us and our products.
Q: Do you accept test order?
A: Yes,we accept test order before you place a big formal order with us.
Q: Do you have construction sites for us to visit how your formwork are used?
A: Yes
Below are our demoulding projects of our plastic formwork for your info:
Below are successful cases of our plastic formwork:
