Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HYstrong
-
Model Number:
-
HY5216A-II
-
Voltage:
-
110-230V
-
Dimension(L*W*H):
-
780*450*280mm
-
Power (kW):
-
350W/550W
-
Weight (KG):
-
36 KG
-
Drilling capacity:
-
16mm
-
Motor power:
-
375/450/550W
-
Table size:
-
260*260mm
-
Swing:
-
310mm
-
Height:
-
900 mm
-
Product name:
-
Bench Drill
-
Keyword:
-
front switch mini bench drill press machine
-
Base Size:
-
420*250mm
-
name:
-
16mm Bench pillar drill press machine for sale
-
certificate:
-
CE
-
Certification:
-
CE
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
16
-
Range of Spindle Speed(r.p.m):
-
300 - 2550 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
HYstrong
-
Model Number:
-
HY5216A-II
-
Voltage:
-
110-230V
-
Dimension(L*W*H):
-
780*450*280mm
-
Power (kW):
-
350W/550W
-
Weight (KG):
-
36 KG
-
Drilling capacity:
-
16mm
-
Motor power:
-
375/450/550W
-
Table size:
-
260*260mm
-
Swing:
-
310mm
-
Height:
-
900 mm
-
Product name:
-
Bench Drill
-
Keyword:
-
front switch mini bench drill press machine
-
Base Size:
-
420*250mm
-
name:
-
16mm Bench pillar drill press machine for sale
-
certificate:
-
CE
-
Certification:
-
CE

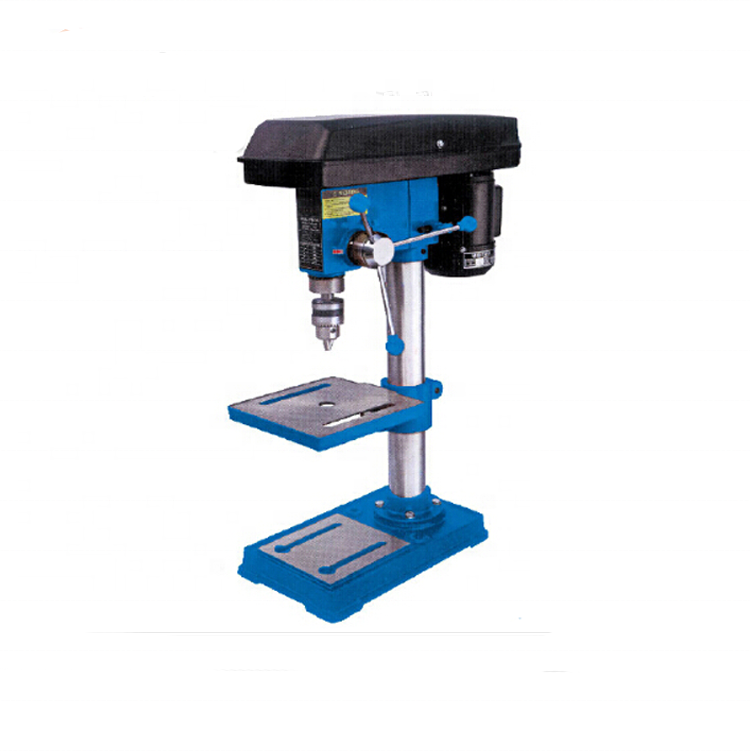

16mm 750W industrial laser bench drill press with 4 inch flat pliers Max Drilling Dia (mm) 16 mm type Bench Drill HY5216A-II
front switch simple mini bench drill press machine for sale increases the products range of HYstrong Machinery. This type hobby drill
press is a compact and robust bench drill, extremely easy to operate and seldom goes wrong.
Superbly well robust construction enables it to handle all common metal-working duties drilling
classroom or workshop process. Clear components are also convenient to install or transport.
-
Exceptional HYstrong Quality
-
Individual Accuracy Test with Each Machine
- High Rigid Construction
- Easy Operation and Extended Durability
- Different Sizes and Replaceable Worktables
- Considerable Safety Design
| Model | HY5216A-II |
| Drilling Capacity | 16 mm (5/8 '') |
| Swing | 260 mm |
| Spindle Taper | B16 |
| Spindle Travel | 60 mm |
| Spindle Speeds Steps | 5 Steps |
| Spindle Speed | 620 - 2,620 / 740 - 3,140 rpm |
| Maximumn Distance from Spindle Axis to Surface of Column | 130 mm |
| Maximumn Distance fron Spindle End to Surface of Worktable | 400 mm |
| Maximumn Distance from Spindle End to Surface of Base | 515 mm |
| Column Diameter | 58 mm |
| Height | 900 mm |
| Worktable Size | 260 x 260 mm |
| Worktable Rotate Angle (Left / Right) | +/- 45° |
| Base Size | 420 x 250 mm |
| Motor Power | 350 / 550 w |
| Net / Gross Wieght | 40/42kg |
| Packing Size | 780 x 450 x 280 mm |
Optional Accessorsies :
| Package |
1 set/polywood case
(aluminum strips strengthen)
|
| Minimum Order Quantity (MOQ) | 1 sets |
| Full Container Loading Quantity (FCL) |
36-60sets/20’GP
(unitary; customerized packing available)
|
| Delivery Time | 25 calendar days after receiving of advance / full payment |
