Quick Details
-
Marketing Type:
-
New Product 2023
-
Rated Power:
-
8.5KW
-
Engraving Speed:
-
8-15m /Min
-
Main Axle Rotational Speed:
-
24000 rpm
-
Feeding Height:
-
300mm
-
Milling Cutter Diameter:
-
3.175mm - 12.7mm
-
Application:
-
600*600mm
-
Dimensions:
-
1900 x 1950 x 2100mm
-
Weight (KG):
-
1800
-
Keyword:
-
CNC mold milling machine
-
Table structure:
-
Movable T-slot cast iron table
-
Spindle power:
-
ATC 5.5KW water cooling spindle
-
Auto tool changer:
-
Circular 12 tools
-
Control system:
-
WEIHONG NK180B
-
Motor and drivers:
-
Japan YASKAWA
-
Inverter:
-
Taiwan Delta
-
Machine type:
-
Enclosed type
-
Body structure:
-
Whole iron cast bed structure
-
Guide rail:
-
Taiwan HIWIN
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FIRMCNC
-
Machine Type:
-
CNC Router
-
Marketing Type:
-
New Product 2023
-
Rated Power:
-
8.5KW
-
Engraving Speed:
-
8-15m /Min
-
Main Axle Rotational Speed:
-
24000 rpm
-
Feeding Height:
-
300mm
-
Milling Cutter Diameter:
-
3.175mm - 12.7mm
-
Application:
-
600*600mm
-
Dimensions:
-
1900 x 1950 x 2100mm
-
Weight (KG):
-
1800
-
Keyword:
-
CNC mold milling machine
-
Table structure:
-
Movable T-slot cast iron table
-
Spindle power:
-
ATC 5.5KW water cooling spindle
-
Auto tool changer:
-
Circular 12 tools
-
Control system:
-
WEIHONG NK180B
-
Motor and drivers:
-
Japan YASKAWA
-
Inverter:
-
Taiwan Delta
-
Machine type:
-
Enclosed type
-
Body structure:
-
Whole iron cast bed structure
-
Guide rail:
-
Taiwan HIWIN
Product Description

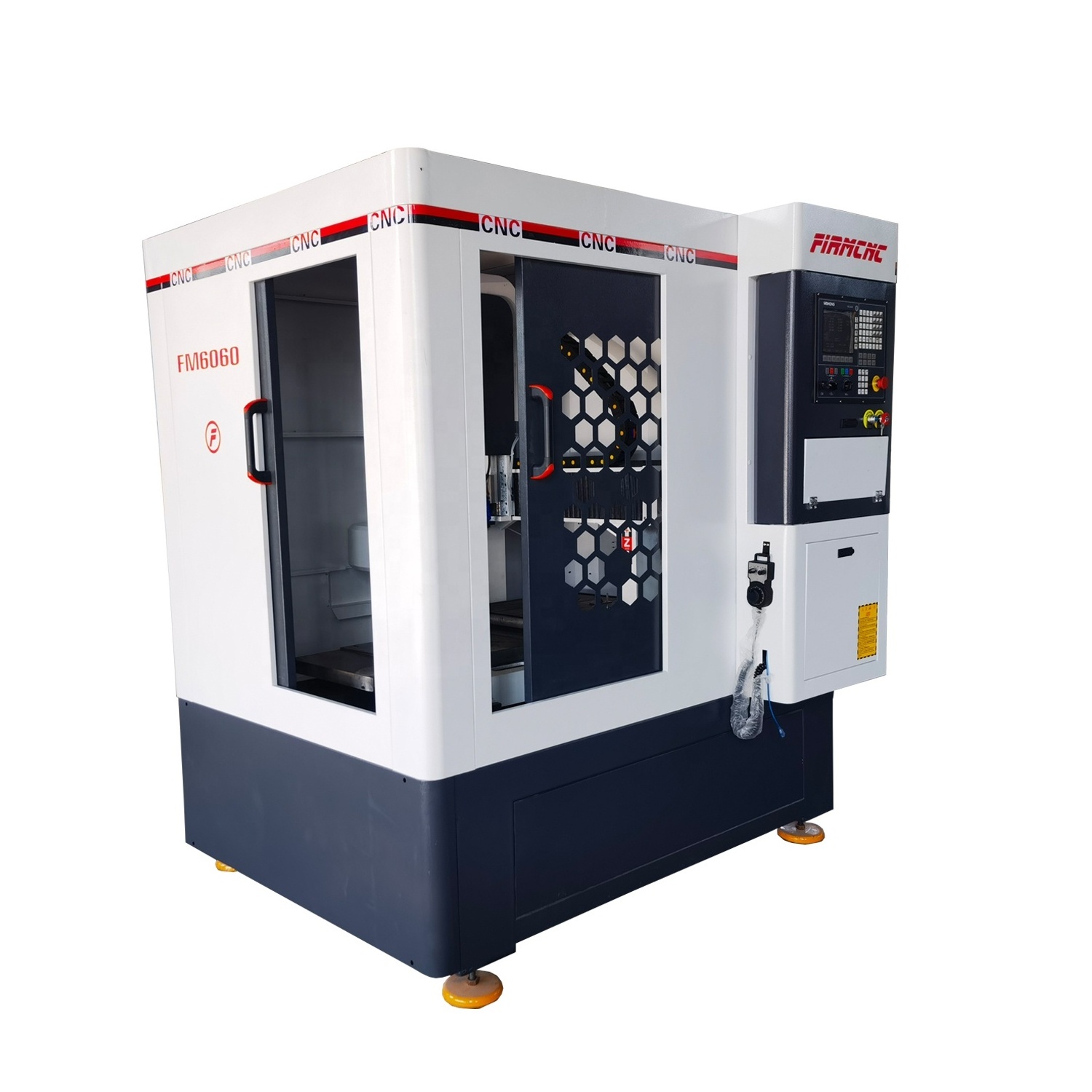

Main configuration of cnc mould milling machine
# Enclosed type
# Working area 600*600*300mm
# Whole iron cast bed structure
# Movable T-slot cast iron table
# WEIHONG NK280B controller system
# 5.5kw ATC water cooling spindle
# Circular auto tool changer 12 tools
# Japan YASKAWA servo motor and drivers
# Taiwan Delta inverter
CNC Mold Milling Machine Features:
CNC Mold Milling Machine Features:
stainless steel, carbon steel, fiber glass etc.
Applicable Industries:
Mainly used for large scale copper mold processing, it is applicable for sculpture mold industry,plastic mold industry, shoe making industry,watch making industry, glass-making industry, Ferreteria, Trademark industry,Medical instrument, Advertising industry, Musical instrument,etc toy industry, Handicraft industry processing etc.
Applicable materials:
1. Suitable for high-volume processing of non-ferrous metal sheet, Such as aluminum veneer, aluminum composite panel, copper, PVC
board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling,
etc.
2. double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting
of acrylic and the engraving of many jade article.
3. Electronic: Electro circuit, insulation materials, LED screen, family appliance shell and model carving.
board, acrylic, insulation materials, wood and composite panels such as sheet processing, cutting, slotting, engraving, milling,
etc.
2. double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting
of acrylic and the engraving of many jade article.
3. Electronic: Electro circuit, insulation materials, LED screen, family appliance shell and model carving.
Specification
|
Model
|
FM4040
|
FM6060
|
FM6080
|
FM6090
|
||||
|
Working area
|
40*400mm
|
600*600mm
|
600*800mm
|
600*900mm
|
||||
|
Z axis height
|
300mm （200mm, 400mm for choose)
|
|
|
|
||||
|
Control system
|
WEIHONG NK280B
|
|
|
|
||||
|
Spindle power
|
5.5KW ATC water cooled
|
|
|
|
||||
|
Auto tool changer
|
Circular 12 tools ( 6 tools, 8 tools, 10 tools, 16 tools for choose)
|
|
|
|
||||
|
Motor and drivers
|
Japan Yaskawa brand
|
|
|
|
||||
|
Inverter
|
Taiwan Delta / Fuling
|
|
|
|
||||
|
Technical Parameter
|
|
|
|
|
||||
|
Working Accuracy (mm)
|
≤0.01mm
|
|
|
|
||||
|
X,Y,Z Traveling Positioning Accuracy (mm)
|
≤0.01mm
|
|
|
|
||||
|
Max. Idling Speed
|
60m/min
|
|
|
|
||||
|
Max. Working speed
|
40m/min
|
|
|
|
||||
|
Commend Code
|
G Code
|
|
|
|
||||
|
Working voltage
|
380V 3P 50HZ (60HZ)
|
|
|
|
||||
Control system
* Easy operation
* NC studio ; DSP A11; Multech TK100 ; WEIHONE NK series ; Taiwan Syntec control system for choose
* NC studio ; DSP A11; Multech TK100 ; WEIHONE NK series ; Taiwan Syntec control system for choose
Table structure
* Whole machine cast by iron, very strong, working very stability, table moving, high precision.
* Movable worktable, which is very suitable for processing metal or wooden molds.
* Movable worktable, which is very suitable for processing metal or wooden molds.
Auto tool changer
* Circular 12 tools
Can choose 6 tools, 8 tools, 10 tools, 16 tools.
* Linear auto tool changer, rotary axis as optional.
The high-speed water cooling spindle
* Low noise
* High torque can be used to process high hardness materials
* Long service life, stable operation
* 3.0KW, 5.5KW for choose
Servo motor and driver
* High precision
* Smooth running, no vibration in low speed, no drop sharply even in high speed
* Strong load capability, much reliable control performance.
* Chinese Leadshine servo motor / Japan Panasonic servo motor /Yaskawa servo motor for you to choose
* Smooth running, no vibration in low speed, no drop sharply even in high speed
* Strong load capability, much reliable control performance.
* Chinese Leadshine servo motor / Japan Panasonic servo motor /Yaskawa servo motor for you to choose
Packing & Delivery
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
