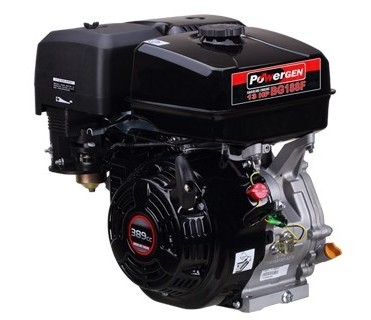

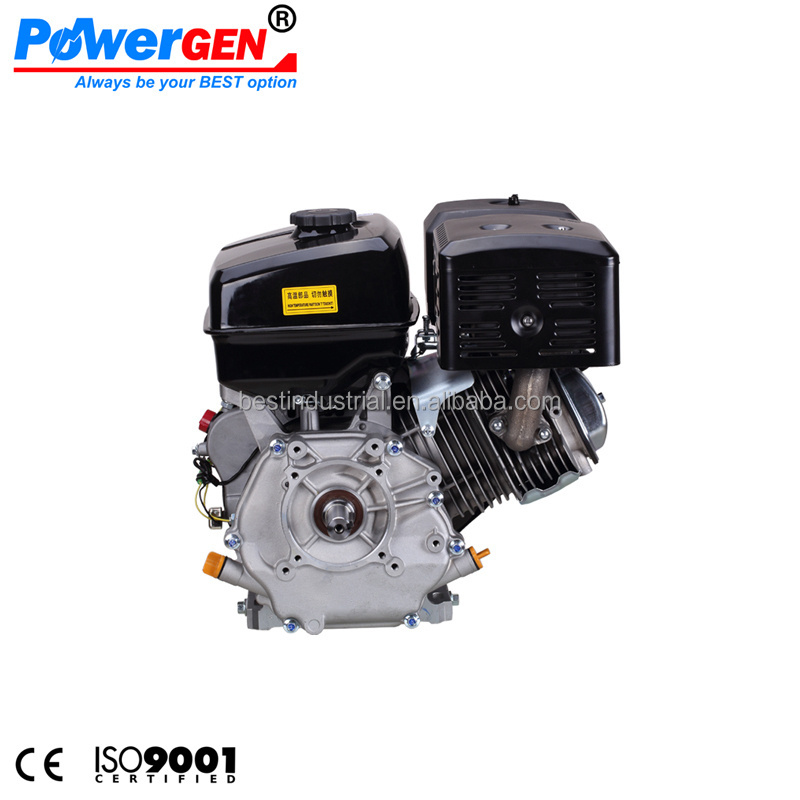

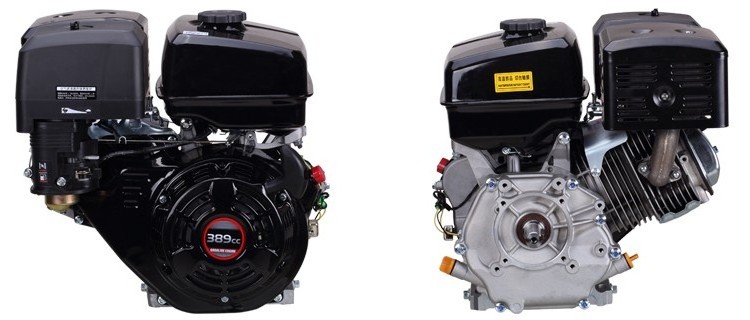

Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine
Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine

Top Seller!!! POWERGEN 389CC Air-cooled Single Cylinder 4 stroke 13HP Gasoline engine

FOB Reference Price: Get Latest Price
≥1 Sets
US $150
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
450x405x443
Weight:
31/34kgs
Warranty:
1 year
Certification:
CE,EP
Advantage:
Lower Fuel Consumption

Quick Details

Place of Origin:
Fujian, China
Brand Name:
POWERGEN
Model Number:
BG188F
Dimension(L*W*H):
450x405x443
Weight:
31/34kgs
Warranty:
1 year
Certification:
CE,EP
Advantage:
Lower Fuel Consumption
Product Description
Specifications of Gasoline Engine 13HP
Model No.
BG188F
Engine Type
Single cylinder,4stroke, forced cooling ,OHV25°inclined
Bore x Stroke (mm)
88x64
Displacement (cc)
389
Compression Ratio
8.1:1
Peak Power (HP/RPM)
13/3600
PTO shaft rotation
Anti-clockwise(from PTO side)
Net torque
25.1N.m/2500rpm
Idle speed
1400±150r/min
Ignition system
Transistorized magneto ignition
Starting System
Recoil start/Electic-start
Lubrication system
Splash
Governor system
Centrifugal mass type
Air cleaner
Semi-dry, dual element
Carburetor
Butterfly
Oil capacity (L)
1.1
Fuel tank capcity
6.5
Dimensions (LxWxH)mm
405 x 450 x 443
Net weight (Kgs)
Recoil Start only: 31;  with Electric Starter: 34
Features


* Low vibration : the professional balanced design with low center of gravity allows the engine running smoothly.

* Perfect compatibility : light weight and exquisite product as a result of improved design of silencer, starter, air filter and fuel tank, which is more convenient for users to carry power equipment.

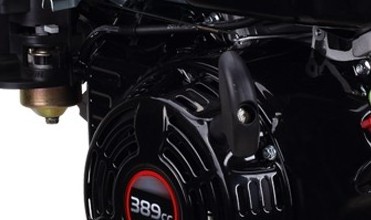

EASY START

Recoil starter is employed, which has proper resistance and enables an easy start for female.



LOW OIL LEVEL SHUT DOWN

Prevent the engine from running under low oil level and can give more protection to the engine.


EXCELLENT DESIGN

Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it saves more oil.

PTO Shaft & Curve
Packing
Packaging
Size (mm)
500 (L) * 450 (W) * 480 (H)
Gross Weight
34Kg (Recoil Start)



Packaging
Details


1) Inner Packaging: Polybag & Foam
2) Outer Packaging: Carton
3) Wrapping tape
Assembly Line
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
