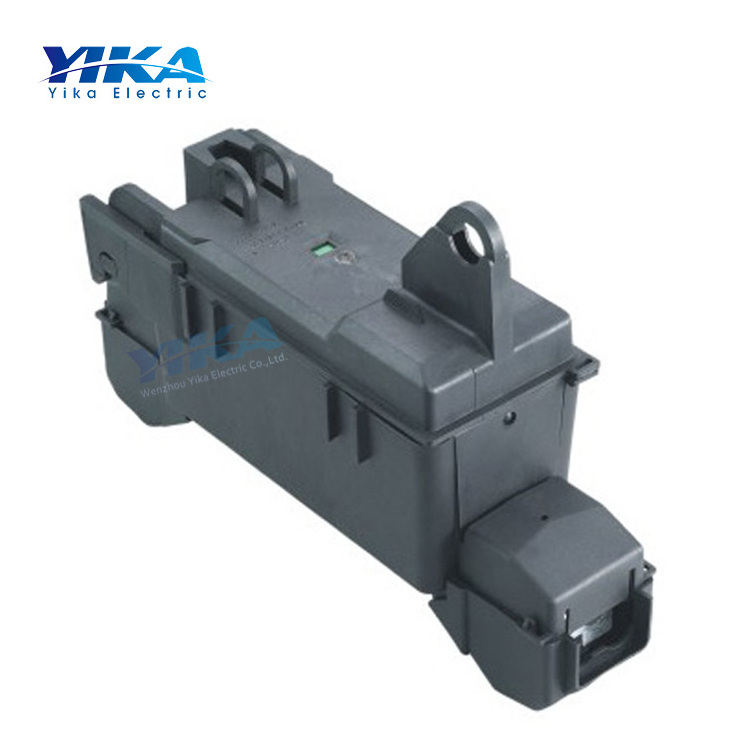

YIKA APDM 630A Pole Mounted Fuse switch Disconnector For NH 1-2 OR 3 Size Fuses

YIKA APDM 630A Pole Mounted Fuse switch Disconnector For NH 1-2 OR 3 Size Fuses

The APDM630 fuse switch it is used either as an operation or protection device for LV line.It is designed to be used with NH 1-2 or 3 size fused offering a maximum of 630 Amps of line protection without blades.

In case blades are used ,the maximum switching load would be 800A. It is manu-factured in reinfored fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.

In the APED 630C model the connection is made with connectors suitable for aluminum and copper conductors with a section range between 16 and 95 mm2 (5-4/0 AWG).

The closure of the cap allows the switch to be closed with or without a fuse,prev-enting the risk of leaving tension parts exposed.It may also be provided with a light emission diode(LED).

Feature:

The switch fuse 630 APDM has the following features included:

1 , Indicator light fuse operation

2 , Installed fuse indicator

3 , Sealable safety

4 , Inserts for mounting bipolar,tripolar,tetrapolar etc.

5 , Eyelets suitable for proper and safe opening and closing operation,

6 , Assembly and disassembly of the fuse cover

Optionals:

APDM- 1 , 2 -630- 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10

1 , 2-bipolar mounting        3-tripolar mounting          4-tetrapolar mounting

2 , 2-bipolar operation        3-tripolar operation         4-tetrapolar operation

3 , C-connectors

4 , Y-simple-double        D-double-double

5 , R-pole voul screw maneuver          L-extreme cold maneuver

6 , H-connection seal

7 , P-protector cover

8 , K-arc chamber

9 , X-stainless steel bolts
