Quick Details
-
Weight (T):
-
0.5
-
Weight (KG):
-
500
-
Marketing Type:
-
Ordinary Product
-
Final product:
-
1-10 cm
-
Application:
-
Recycle Waste Plastic
-
Crushing material:
-
Types Waste Plastic
-
Other name:
-

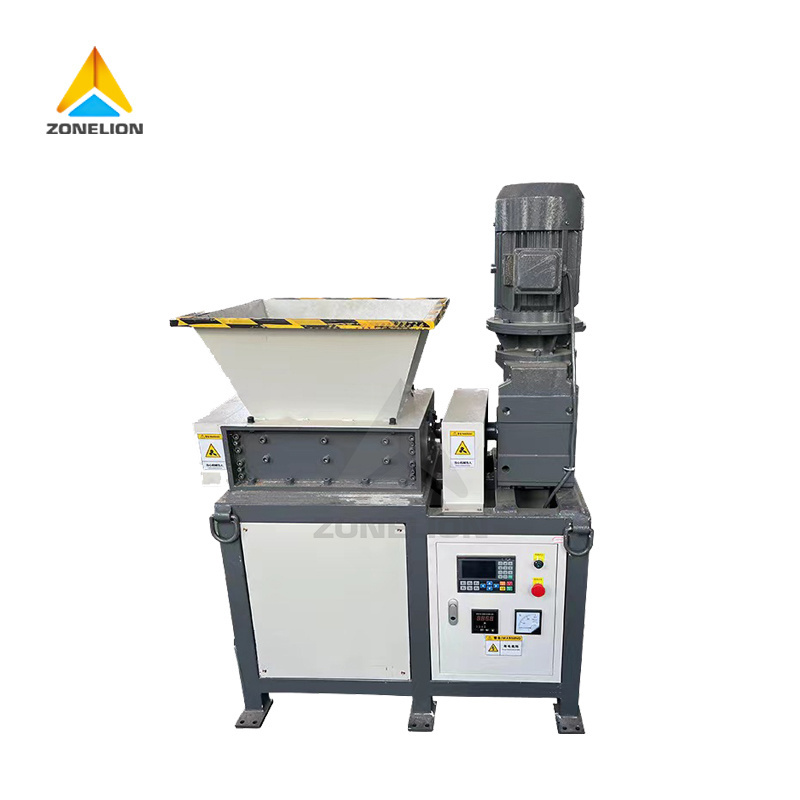

Double Shaft Plastic shredder
Quick Details
-
Max.Production Capacity (kg/h):
-
350
-
Place of Origin:
-
China
-
Production Capacity (kg/h):
-
100 - 350 kg/h
-
Weight (T):
-
0.5
-
Weight (KG):
-
500
-
Marketing Type:
-
Ordinary Product
-
Final product:
-
1-10 cm
-
Application:
-
Recycle Waste Plastic
-
Crushing material:
-
Types Waste Plastic
-
Other name:
-
Double Shaft Plastic shredder
1.Low noise, less dust with high capacity.
2.Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.
4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
2.Special thick plate precision machining combination frame, large angle hexagonal column of the strong rotation axis, large diameter solid into the hopper, so you can safely put into large raw materials.
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, shear strong,sharp blade, can be highly efficient broken.
4. Unique multiple combination sealing structure effectively blocks the contact of broken material and grease.
5. The moving blade material is made of special alloy tool steel forging blanks, precision machining, multiple heat treatments and low temperature freezing heat treatment technology.
|
Model
|
PH-EB300
|
|
Voltage
|
380v,50Hz
|
|
Power
|
3kw
|
|
Input speed
|
16r/min
|
|
Input torque
|
1628Nm
|
|
Input shaft diameter
|
50
|
|
Blade number
|
24 pieces
|
|
Size of loading opening
|
500*500*300mm
|
|
Width of downcomer opening
|
450mm
|
|
Dimension
|
1080*570*1330mm
|
|
Weight
|
400kg
|
