Carmix Car Mobile Concrete Mixer 6 7 Cubic Feet Meters 12 M3 Concrete Mixer 12 Cubic Feet Machine Large Capacity 10Cbm Roller

Carmix Car Mobile Concrete Mixer 6 7 Cubic Feet Meters 12 M3 Concrete Mixer 12 Cubic Feet Machine Large Capacity 10Cbm Roller

FOB Reference Price: Get Latest Price

≥1 Sets

US $7000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Zhenheng

Charging Capacity:: 11.8m3

Reclaiming capacity:: 8m3

Speed of Mixing Drum:: 15-20r/min

Water Supply Mode:: Automatic water pump

Working Cycle Period:: 1min

Discharge Way:: Reverse Discharge

Outline Dimension:: 5296*2200*2532mm

Marketing Type:: New Product 2022

Weight (KG):: 3400 kg

The axis inclination angle:: 15°

The charging speed:: >=3m³/min

The discharging speed:: >=2m³/min

The discharging residual rate:: ≤0.5%

Drum material:: Q345B

Drum thickness:: 5mm

Drum diameter:: 2200mm

Reducer:: Keyi / PMP

Hydraulic motor:: BMT / Sunny

Water tank:: 400L

Quick Details

Mixing Power:: Other

Productivity:: 25-180 cubic meter/h

Place of Origin:: HEN

Brand Name:: Zhenheng

Charging Capacity:: 11.8m3

Reclaiming capacity:: 8m3

Speed of Mixing Drum:: 15-20r/min

Water Supply Mode:: Automatic water pump

Working Cycle Period:: 1min

Discharge Way:: Reverse Discharge

Outline Dimension:: 5296*2200*2532mm

Marketing Type:: New Product 2022

Weight (KG):: 3400 kg

The axis inclination angle:: 15°

The charging speed:: >=3m³/min

The discharging speed:: >=2m³/min

The discharging residual rate:: ≤0.5%

Drum material:: Q345B

Drum thickness:: 5mm

Drum diameter:: 2200mm

Reducer:: Keyi / PMP

Hydraulic motor:: BMT / Sunny

Water tank:: 400L

Products Description

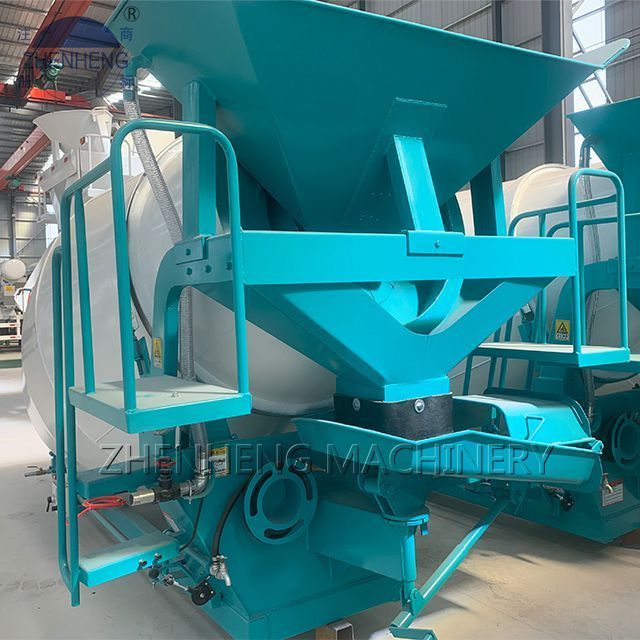

Concrete Mixer Drum

The mixer drum is either driven by the truck engine or by a separate power take off device.

It mixes material by itself or be mounted on truck to use as a concrete mixer truck.When the concrete drum rotates clockwise, the concrete is stirred, and when it is rotated counterclockwise, the concrete is discharged.

The whole mixing system of Concrete mixer drum includes mixing tank and bearings, out of the hopper, hydraulic system and reducer, water tanks and pipelines, operating linkage agencies.

Hydraulic system: famous brand Sunny, the structure is simple and reliable.

Water supply system: It supplies water by pressure, which saves the labor intensity and reduces the car weight.

Mixng drum: It is pear shaped and has dual helical blades, which improves the concrete quality; The installing angle of the drum is small, which reduces the vehicle center of gravity and is conducive to the clean discharge of the concrete.

Control device: It can be divided into soft shaft manipulator and link manipulator, which can achieve the multiple points charging and discharging control; the charging hopper and discharging chute can rotate 180 degree in the horizontal direction to adapt to different position.

Special performance:

1. The use of iron and steel production of special wear-resistant plate mixing drum and blade.
2.Mixing drum blade production process using special mold stamping.
3. Drum and blade welding adopts large rotary tooling, high precision.

4. The hydraulic system adopts imported components, compact structure and excellent performance.

5. The whole mixing.drum styling chic, beautiful, compact and reasonable structure.

6. The operating system is flexible and convenient, the realization of the left and right, feed operation three in one.
7.The pot body after welding adopts blast pretreatment process, to achieve derusting and rust.

Specification

Pls provide us the dimension of truck chassis and our engineers will design the drum mixer so that it fits your truck.

Model	4m3	5m³	6m3	8m3	10m3	12m3
Mixing Capacity	4m3	4m3	6m3	8m3	10m3	12m3
Axis Inclination Angle	15°	15°	15°	15°	14°	11°
Charging Speed	≧3m³/min	≧3m³/min	≧3m³/min	≧3m³/min	≧3m³/min	≧3m³/min
Discharging Speed	≧2m³/min	≧2m³/min	≧2m³/min	≧2m³/min	≧2m³/min	≧2m³/min
Discharging Residual Rate	≤0.5％	≤0.5％	≤0.5％	≤0.5％	≤0.5％	≤0.5％
Drum Material	Q345B	Q345B	Q345B	Q345B	Q345B	Q345B
Drum Thickness	4mm	5mm	5mm	5mm	5mm	5mm
Drum Diameter	1750mm	2050mm	2050mm	2200mm	2200mm	2400mm
Weight	1445kg	2060kg	2260kg	3400kg	3800kg	4100kg
Reducer	Keyi	Keyi	Keyi	PMP	PMP	PMP
Hydraulic Motor	BMS	BMT	BMT	Sunny	Sunny	Sunny
Water Tank	200L	200L	350L	400L	350L	400L
