Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Single Pulse Energy:
-
1~100%(0.1-10)
-
Pulse Width:
-
1080NM
-
Wavelength:
-
1070-1080nm
-
Focal Spot Diameter:
-
<2.0
-
Dimensions:
-
870 mm* 500 mm* 1020 mm
-
Weight (KG):
-
180 KG
-
Laser type:
-
Fiber laser generator
-
Laser power:
-
1000W/1500w/2000w/3000w
-
Laser wave length:
-
1070-1080nm
-
Fiber laser power source:
-
Everfoton/Max
-
Electro-optical conversion efficiency:
-
25-30%
-
Power adjustment range:
-
1~100%(0.1-10)
-
Center wavelength:
-
1080NM
-
Beam quality:
-
2.0
-
Cooling system:
-
Water chiller
-
Fiber cable length:
-
10 meters or more
Quick Details
-
Max. Output Power:
-
1000W/1500W/2000w/3000w
-
Usage:
-
for metal welding
-
Laser Source Brand:
-
China
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledio
-
Single Pulse Energy:
-
1~100%(0.1-10)
-
Pulse Width:
-
1080NM
-
Wavelength:
-
1070-1080nm
-
Focal Spot Diameter:
-
<2.0
-
Dimensions:
-
870 mm* 500 mm* 1020 mm
-
Weight (KG):
-
180 KG
-
Laser type:
-
Fiber laser generator
-
Laser power:
-
1000W/1500w/2000w/3000w
-
Laser wave length:
-
1070-1080nm
-
Fiber laser power source:
-
Everfoton/Max
-
Electro-optical conversion efficiency:
-
25-30%
-
Power adjustment range:
-
1~100%(0.1-10)
-
Center wavelength:
-
1080NM
-
Beam quality:
-
2.0
-
Cooling system:
-
Water chiller
-
Fiber cable length:
-
10 meters or more

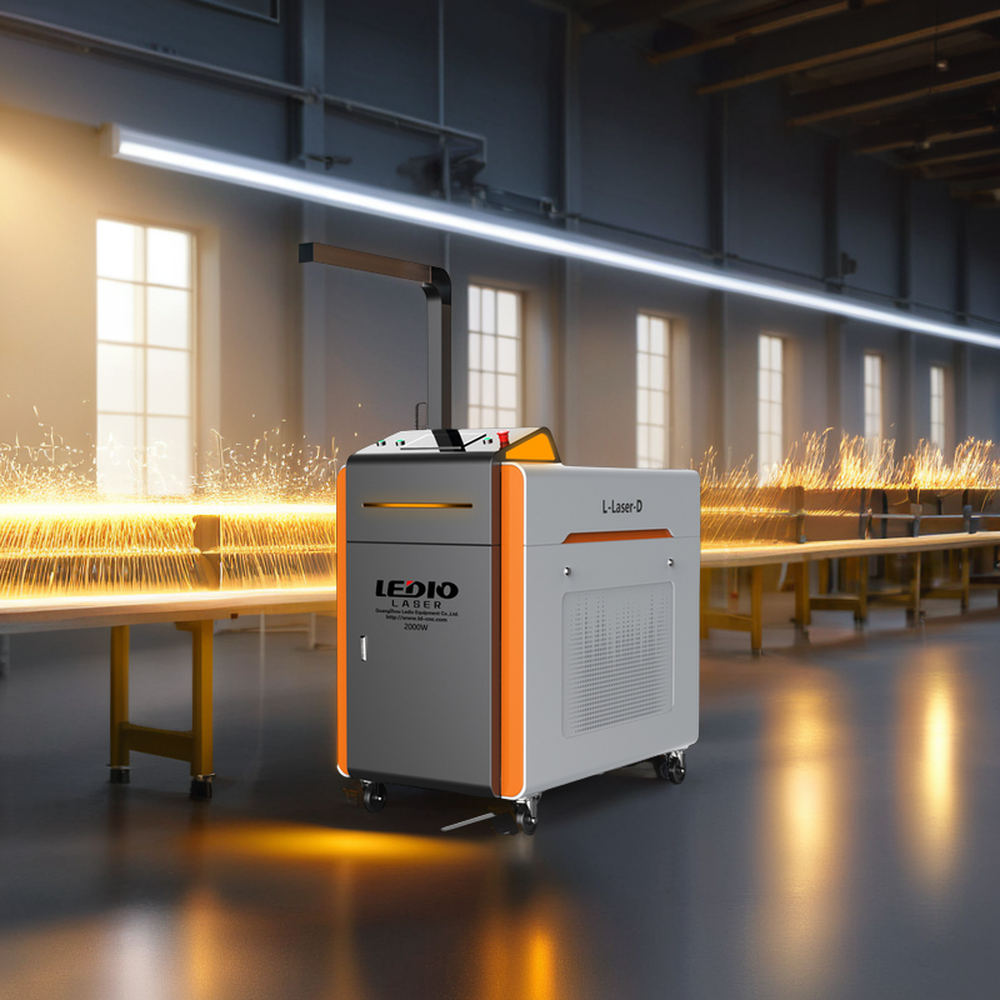

Handheld laser welding machine fiber stainless steel metal desk chair laser welding machine 3 in 1
We have machine in stock in Guangzhou in stock ,welcome to visit .
Machine have 1000W/1500W/2000W/3000w fiber power ,power different
then the price different .
Application Industry
Metal processing medical equipment, metal processing kitchenware, stoves, lighting fixtures, aerospace textile machinery
Stainless steel
Stainless steel
Stainless steel
Carbon steel
Carbon steel
Carbon steel
PRODUCT PARAMETER
|
Name
|
Handheld fiber laser welding machine
|
|
Fiber laser power
|
1000W/1500W/2000W/3000W
|
|
wavelength
|
1070 NM
|
|
Fiber Length
|
Standard 10M
|
|
Way of working
|
Continuous/Modulation
|
|
Welding machine speed range
|
0~120 mm/s
|
|
Recommended welding thickness
|
0.8-4mm
|
|
Working voltage
|
AC220V 50-60Hz
|
|
Automatic wire feeding speed range
|
0~9mm
|
|
Wire feeding type
|
Stainless steel wire, iron wire, aluminum wire
|
|
Wire feeding size range
|
0.8~1.6mm
|
|
Wire feeding delay
|
0ms
|
|
Withdrawal time
|
0-3ms
|
What kind of function for this machine ?
The machine have function for welding /cutting /rust removal ,three in one .Now also have
upgrade one with four in one function(welding/cutting/rust removal /welding gap rust removal
What kind of gas need to use for the machine ?
Welding speed reference parameter
|
Laser power
|
Welding thickness (penetration)
|
Weld bead width
|
Speed
|
power range
|
|
1000W
|
0.8mm—3mm
|
0-5mm adjustable
|
0.8m-9m/min
|
300-1000W adjustable
|
|
1500W
|
0.8mm—4mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-1500W adjustable
|
|
2000W
|
0.8mm—6mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-2000W adjustable
|
|
3000W
|
0.8mm—8mm
|
0-5mm adjustable
|
0.8m-10m/min
|
300-3000W adjustable
|
