ATX-Q570-CRS 14USB 2GbE 6COM 2 Gigabit Ethernet Port 4SATA Dual GPU Cards LGA1200 ATX Industrial Motherboard

ATX-Q570-CRS 14USB 2GbE 6COM 2 Gigabit Ethernet Port 4SATA Dual GPU Cards LGA1200 ATX Industrial Motherboard

FOB Reference Price: Get Latest Price

≥100 Pieces

US $489.99

≥2000 Pieces

US $428.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Memory Type:: DDR4

Graphics Card Type:: Integrated

Chipset:: Intel Q570 ,Optional W580, Intel Q570

Brand Name:: JWIPC

Place of Origin:: Guangdong, China

Type:: Standard ATX Industrial Motherboard

processor:: i9/i7/i5/i3/G serial CPU TDP up to 125W

Display:: DP+DP+HDMI+DVI-D

Network:: 2 * Intel high speed ethernet port

OS:: Win10 x64,Win11 x64,Linux Ubuntu 18.04,CentOS 8

Port:: 6 Serial Port

Working Environment:: -10℃~60℃

USB:: 4SATA/2GbE/14USB/6COM/1PCI/6PCIe

Quick Details

Maximum Ram Capacity:: 128 GB

Application:: Server/Workstation/Watchdog timer

Form Factor:: ATX

Memory Type:: DDR4

Graphics Card Type:: Integrated

Chipset:: Intel Q570 ,Optional W580, Intel Q570

Brand Name:: JWIPC

Place of Origin:: Guangdong, China

Type:: Standard ATX Industrial Motherboard

processor:: i9/i7/i5/i3/G serial CPU TDP up to 125W

Display:: DP+DP+HDMI+DVI-D

Network:: 2 * Intel high speed ethernet port

OS:: Win10 x64,Win11 x64,Linux Ubuntu 18.04,CentOS 8

Port:: 6 Serial Port

Working Environment:: -10℃~60℃

USB:: 4SATA/2GbE/14USB/6COM/1PCI/6PCIe

Products Description

We can support OEM/ODM service, the process of customization is following: 1: Provide your specific requirement. 2: Our design engineers draw the design draft. 3: You confirm the design draft. 4: We start produce it. Assisting customers in their journey towards customized solutions: ☑ Logo(Packing , Computer Logo) ☑ Computer Colors ☑ Security ☑ Interfaces Customization ☑ Virtualisation ☑ And so on... ☑ Data Protection

We also have ATX industrial Motherboard, Micro-ATX industrial Motherboard , ATX industrial Motherboard, 3.5" embedded single board motherboard, 4" embedded motherboard, and embedded core control motherboard, Display motherboard, Arm Motherboard, Retail Motherboard. If you have inquiry of different motherboard, freely click here or below picture to contact us.

Features of 3.5" Embedded Single Board Motherboard :

◆Support Intel LGA1200 package 10th and 11th generation CPU,TDP 125W
◆Four DDR4 u-dimm slots support a maximum of 128GB
◆ 6 PCIe slots provide up to 22 GIGABit network ports
◆10 USB3.2 high-speed ports for hd video equipment
◆4 port 3 display /4SATA/2GbE/14USB/6COM/1PCI/6PCIe
◆High Tg wide temperature PCB material to ensure the stability of wide temperature
◆Industrial port protection blocking static electricity and surge, effectively protect system core stability and reliability
◆Industrial interface chips and Intel network chips are used to ensure high speed and stability of data transmission
◆Optimize the layout of interfaces and expansion slots to effectively avoid interference between server cards and facilitate
users' expansion requirements in different industries
◆Support dual GPU card ai and machine vision applications

◆ Additional VRM cooling
◆ Chipset modifications for better LINUX OS user experience
◆ LINUX drivers support, including WDT
◆ SMART PWM fans function
◆ BIOS updates

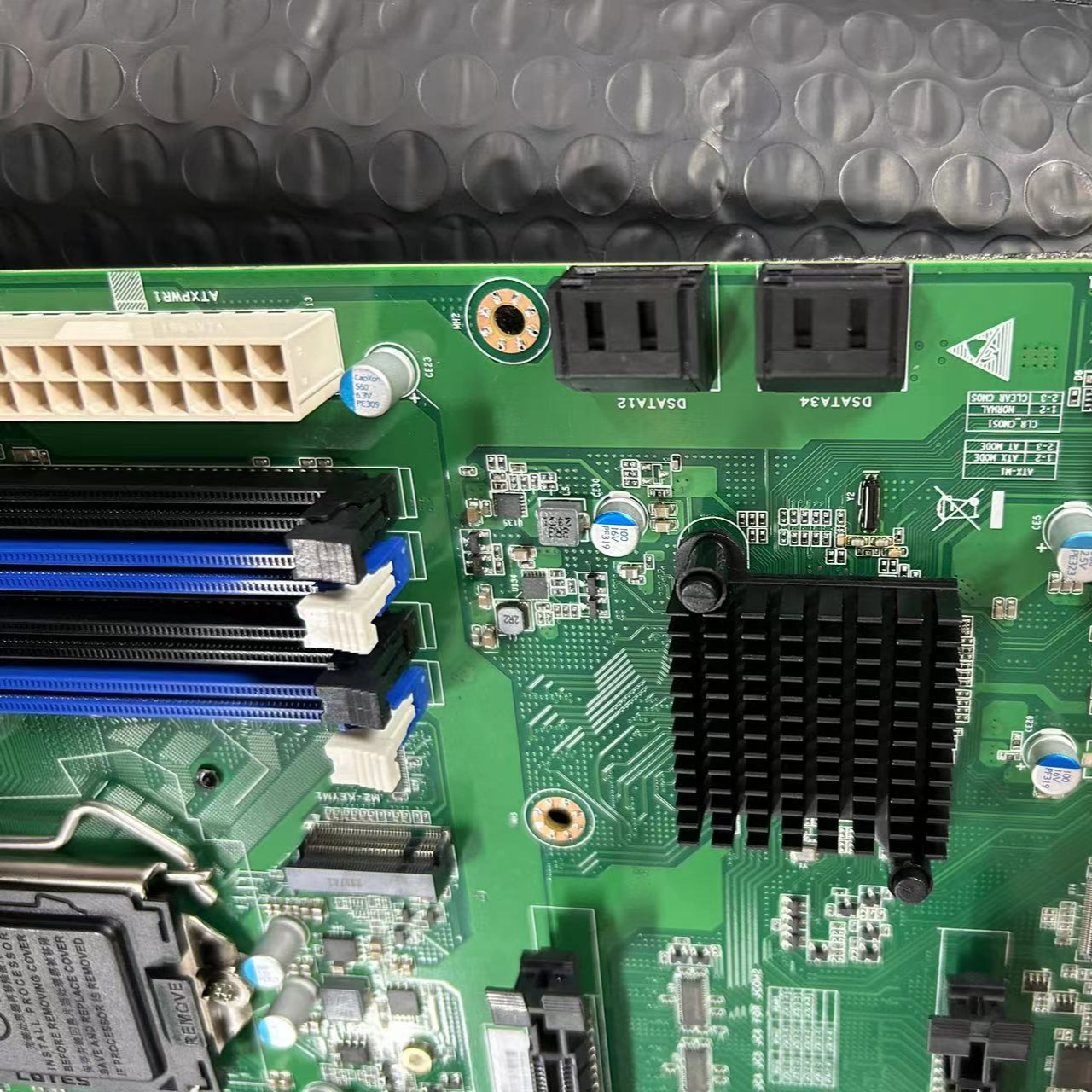

Model	ATX-Q570-CRS
Type	Standard ATX Industrial Motherboard
CPU	Support Intel LGA1200 Gen10&11 i9/i7/i5/i3/G serial CPU TDP up to 125W
Chipset	Intel® Q570
DDR	4× 288PIN DDR4 UDIMM , 32GB Max support128GB According CPU to support DDR4-2133/2400/2666/2933/3200
Display Controller	Intel CPU Integrated Display Controller (Depends on CPU)
Display Port	For Display output DP+DP+HDMI+DVI-D, support 3*Display
Memory	4个SATA3.0 support SATA RAID 0/1/5（If M.2 insert SATA SSD, SATA1 have no signal） 1个M.2 2242/2280 Key-M SSD support SATA bus or Nvme x4 (Only Gen11 support)
Audio	Rear IO support MIC-In, Speaker-Out, Line-In 3 audio
Network	2 *Intel high speed ethernet port: LAN1: i225 2.5Gb; LAN2: i219V
USB	10USB3.2 Type A ,IO directly lead (2Gen2 , 8Gen1) 2USB2.0 vertical plug, USB Dongle Preinstall ； 2个USB2.0 Pin
LPT Print Port	1* LPT Print port
Port	6 Serial Port (COM1&2 support RS232/422/485,COM3-6 support RS232)
Mouse/Keyboard Port	1个PS/2 2 in 1 port and 2*USB with 3 in 1connector
Digital I/O	1*16 isolate digital I/O，supply Power GND，+5V level
eSPI Bus Interface	Provide 1*eSPI bus Port（2x6Pin wafer can extended 4 ports RS232/422/485）
TPM/TCM Interface	Integrated Clipper Chip,SLB967 support TPM2.0 / BOM optional TCM芯片
Power	ATX Power，Support ATX/AT Power on/ off model
Extended Bus	2个x16 Slot , 4 PCIe x4 expansion Slot (3 x4, 1*x1)，1个 PCI (32bit)
Working Environment	Temperature -10℃～60℃，Humidity 10%～85%，Atmosphere 85~105kPa
Storage Environment	Temperature -40℃～85℃；Humidity 5%～95%(40℃)，Atmosphere 85~105kPa
Watch Dog	255 level programming ,support Timeout interruption or system reset
BIOS	AMI UEFI BIOS
OS	Win10 x64，Win11 x64，Linux Ubuntu 18.04，CentOS 8
PCB color	Green oil color
PCB尺寸（LxWxH）	305mm X 244mm
