Quick Details
-
Dimension:
-
2960X1200X1220mm
-
Rubber Wheel size:
-
7.50-16
-
Cage wheel diameter:
-
800mm
-
Towing pin diameter:
-
26mm
-
Brake system:
-
small-scale braking
-
Clutch type:
-
Dry Multiple Disc Clutch
-
Lubricating Oil:
-
SAE90
-
Lubricating oil capacity:
-
5.5-6L
-
Tractor Max.Speed:
-
23.5km/h
-
Diesel Walking Tractor:
-

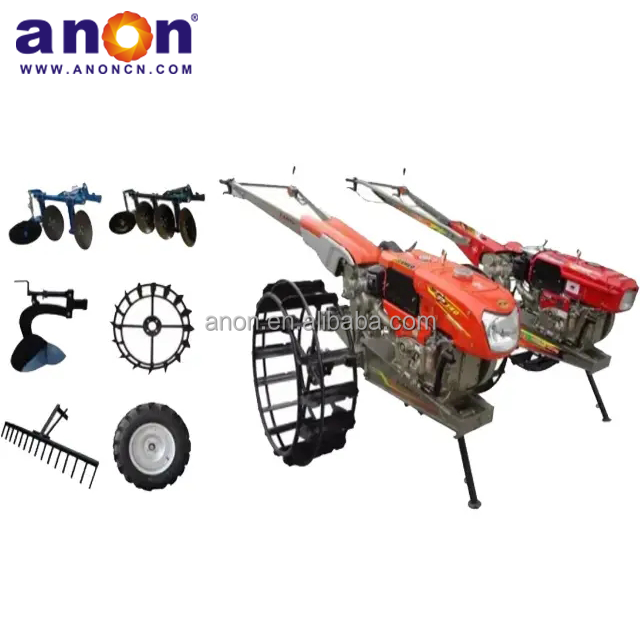

ANON Cp131 7HP-14HP Hand Farm Agriculture Diesel Walking Tractor
Quick Details
-
Brand Name:
-
ANON
-
Place of Origin:
-
Hubei, China
-
Weight:
-
60 KG
-
Dimension:
-
2960X1200X1220mm
-
Rubber Wheel size:
-
7.50-16
-
Cage wheel diameter:
-
800mm
-
Towing pin diameter:
-
26mm
-
Brake system:
-
small-scale braking
-
Clutch type:
-
Dry Multiple Disc Clutch
-
Lubricating Oil:
-
SAE90
-
Lubricating oil capacity:
-
5.5-6L
-
Tractor Max.Speed:
-
23.5km/h
-
Diesel Walking Tractor:
-
ANON Cp131 7HP-14HP Hand Farm Agriculture Diesel Walking Tractor
ANON Walk Tractor 2 Wheel Tractor Implements Power 22hp Walking Tractor Single Plough
ANON Walk Tractor 2 Wheel Tractor Implements Power 22hp Walking Tractor Single Plough
• High work efficiency.
• Easy for operation,easy to control.
• Competive price with excellent quality
• Small volume, light weight,compact structure and perfect cultivate performance
• Powered by water-cooling diesels engine. Low fuel consumption for higher power.
• Multifunctional ,it can be matched with kinds of acc essories .
| Model | CP131 |
| Type | long hand bar type |
| Dimension | 2960X1200X1220mm |
| Engine pulley diameter(standard) | 140mm(5.5'') |
| Transmission pulley diameter(standard) | 180mm(7'') |
| Rubber wheel size | 7.50-16 |
| Cage wheel diameter | 800mm |
| Towing pin diameter | 26mm |
| V-belt | Length:1880mm(74'') Qty:2pcs |
| Brake system | small-scale braking |
| Clutch type | dry multiple disc clutch |
| Lubricating oil | SAE90 |
| Lubricating oil capacity | 5.5-6L |
| Tractor Max.Speed | 23.5km/h |
| Transmission Ratio |
Low speed 1st Gear:44:1 Mid speed 2nd Gear:23:1 High speed 3rd Gear:8:1 |
| Weight(without engine) | 210kgs |
| Diesel Engine Max.Output | 14HP |
