Quick Details
-
Warranty:
-
1 Year, ONE YEAR
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
2BW closed cycle water ring vacuum pump unit
-
Place of Origin:
-
Shandong China (mainland)
-
Horsepower:
-
7 hp-1600 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
According to customer requirements
-
Power:
-
5.5 kw-1200 kw
-
Product name:
-
Cheap circulating liquid ring vacuum pump for extrusion and mold
-
Material:
-
Cast Iron/Stainless Steel
-
Type:
-
2BW closed cycle water ring vacuum pump unit
-
Motor:
-
100% Copper Wire
-
Name:
-
Cheap circulating liquid ring vacuum pump for extrusion and mold
-
Engine:
-
Electric
-
Certification:
-
ce
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, Other
-
Pressure:
-
High Pressure or Low Pressure
-
Voltage:
-
380V/415V/660V/1140V, 380V/415V/660V/1140V
-
Warranty:
-
1 Year, ONE YEAR
-
Brand Name:
-
SHUIWANG
-
Model Number:
-
2BW closed cycle water ring vacuum pump unit
-
Place of Origin:
-
Shandong China (mainland)
-
Horsepower:
-
7 hp-1600 hp
-
Cable Length:
-
According to customer requirements
-
Outlet Size:
-
According to customer requirements
-
Power:
-
5.5 kw-1200 kw
-
Product name:
-
Cheap circulating liquid ring vacuum pump for extrusion and mold
-
Material:
-
Cast Iron/Stainless Steel
-
Type:
-
2BW closed cycle water ring vacuum pump unit
-
Motor:
-
100% Copper Wire
-
Name:
-
Cheap circulating liquid ring vacuum pump for extrusion and mold
-
Engine:
-
Electric
-
Certification:
-
ce
|
|
Specification
|
|
|
|
U
ltimate pressure
|
33hPa
|
|
|
|
Max.pumping capacity
|
1.6-1033m
3
/min
|
|
|
|
Power P
|
5.5-1200KW
|
|
|
|
Motor
|
Brand optional,100% Copper Wire
|
|
|
|
Voltage
|
380V/415V/660V/1140V
|
|
|
|
Material
|
Cast Iron/SS316/SS304/Copper,Can be customized
|
|
|
|
Scope of supply
|
Pump,Motor,Coupling,Base,
Gas-water separator
,Flange,Wearing parts,Other Accessories
|
|
|
|
Certification
|
ISO 9001
|
|
|
|
Warranty
|
One Year/According to customer requirements
|
|
|

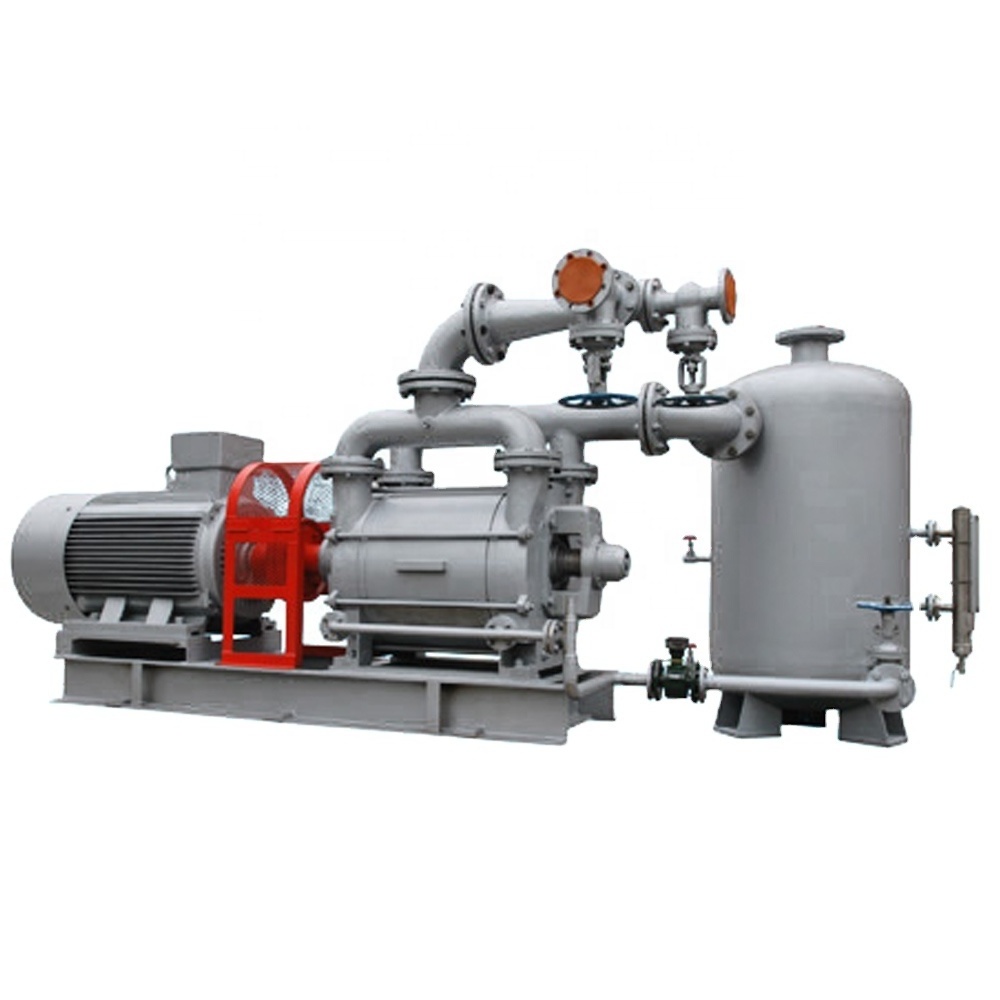

2BW water ring vacuum pump closed-loop unit is composed of vapor-liquid separator, heat exchanger, valve, instrument, pipeline and other auxiliary parts on the basis of water ring pump.The working fluid of the water ring vacuum pump can be recycled in the gas-liquid separator and pump cavity all the time to reduce the sewage discharge. The gas can be condensed and recycled through the exhaust port or directly treated with tail gas,and the extracted solvent can be used as working fluid for recycling, which is conducive to environmental protection and emission reduction.
The
2BW
closed cycle
water ring vacuum pumps
are suitable for
Chemical industry,
Coal industry,Pharmaceutical Industry,Paper industry,
Tobacco industry,
Power Industry,
Environmental protection industry
The gas is compressed by the water ring vacuum pump to carry part of the working fluid,The working liquid is discharged to the vapor-liquid separator through the exhaust pipe, and the vapor-liquid separation is carried out in the separator.After the gas is compressed to the exhaust pressure, it is discharged from the system through the exhaust port. The separator is equipped with a liquid level gauge to indicate the liquid level in the separator. The normal liquid level is limited between the maximum and minimum liquid level,If the liquid level is too low, replenish the working liquid through the liquid replenishing port; if the liquid level is too high, discharge the liquid through the overflow port to ensure the liquid level in the separator.The drain outlet is used to completely drain the liquid in the separator.The working fluid enters the heat exchanger from the separator through the liquid supply pipeline, and then returns to the vacuum pump after being cooled by the heat exchanger. Such repeated operation makes the working fluid circulate in the separator and pump cavity all the time, forming a set of closed circulation unit.
If you have any questions, please send me an inquiry, we will choose the model and quotation for you.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?W ater vapor? Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
