Quick Details
-
Weight:
-
10000 kg
-
Pipe:
-
Concrete,segamental,steel,HDPE,pipe jacking
-
Usage:
-
Sewage, tunnel, coal mine etc
-
Soil:
-
clay, soil, silt, coal mine all ok
-
Trenchless:
-
Trenchless Pipe Jacking
-
Type:
-
Slurry balance pipe jacking machine
-
Torque:
-
553KNM
-
Curve jacking:
-
Yes, experienced
-
Color:
-
According to customer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Job experiences:
-
More than 20 units applied in Singapore
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
REALTOP
-
Dimension(L*W*H):
-
4170*4750mm
-
Weight:
-
10000 kg
-
Pipe:
-
Concrete,segamental,steel,HDPE,pipe jacking
-
Usage:
-
Sewage, tunnel, coal mine etc
-
Soil:
-
clay, soil, silt, coal mine all ok
-
Trenchless:
-
Trenchless Pipe Jacking
-
Type:
-
Slurry balance pipe jacking machine
-
Torque:
-
553KNM
-
Curve jacking:
-
Yes, experienced
-
Color:
-
According to customer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Job experiences:
-
More than 20 units applied in Singapore
Product Application
1. Introduction:

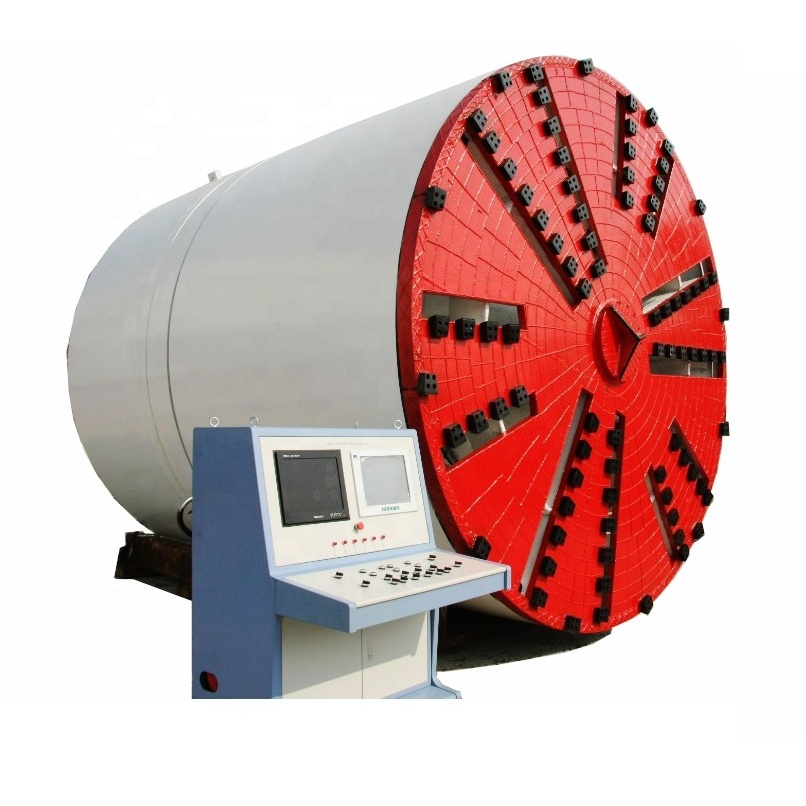

Trenchless euiqpment, remote-controlled Slurry Balance Pipe-Jacking Tunneling Machine is a new advanced non-digging-equipment with high technology.
It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
The trenchless equipment, besides the high efficiency, it also has no effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.
2. Application scope:
For trenchless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....
3. Specifications:
-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 Breakage ability strong, breakage particle size and number more.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular;fit for big N value hard soil.
-3.4 Jacking speed is very fast, theory max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.
-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!
-3.8 Structure firm, use and maintain easy, convenient for dismantling in work tunnel receiving tunnel.
|
Models& Parameters
|
|
DG3500-QNP
|
|
Dimention
|
Inner diameter (mm)
|
3500
|
|
|
Outer diameter (mm)
|
4170
|
|
|
Total Length (mm)
|
4500
|
|
Main drive
|
Rated Power (kW)
|
45*6
|
|
|
Max. torque (kN·m)
|
1500
|
|
|
Revolution (r/min)
|
1.72
|
|
Steering
|
Steering cylinders
|
8
|
|
|
Force per cyl. / oil pressure (kN)
|
1500
|
|
|
Stroke per cyl. (mm)
|
120
|
|
|
Steering angle (°)
|
±2
|
|
Indside hydraulic system
|
Rated power (kW)
|
5.5
|
|
|
working pressure (MPa)
|
25
|
|
Slurry system
|
Rated Power of Water Supply Pump (kW)
|
45
|
|
|
Rated Power of slurry-out Pump (kW)
|
55
|
|
|
Side-Slurry line diam.
|
150
|
|
Main Jacking system
|
Rated Jacking Speed mm/min
|
0--80
|
|
|
Work Pressure (MPa)
|
31.5
|
|
|
Rated Jacking ForcekNm
|
2500*12
|
|
|
speed-regulation mode
|
frequency control
|
Main Features
Our Products Advantages:
Pipe-Jacking Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe!
Diameter from 600-5000mm.
Main operation station.
Pipe jacking monitoring system.
Main jacking pump.
Main cylinder.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)
* Longer distance service is available in charge.
Information needed for quotation accordingly:
1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3. Projects information: for water supply, sewage project?
4. Underground water level.
5. Soil type? sol report is needed.
|
Packaging
|
|
|
|
Size
|
4170* 4750 mm + parts
|
|
|
Weight
|
9T ~ 19T
|
|
|
Packaging Details
|
Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers.
|
|
