Quick Details
-
Filling Accuracy:
-
≤±0.5%
-
Voltage:
-
AC220V/380V 50-60HZ(Special customizable), AC220V/380V 50-60HZ(Special customizable)
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Grepack
-
Dimension(L*W*H):
-
2000*1200*2400mm
-
Weight:
-
800 KG, 800kg
-
Certification:
-
CE &ISO
-
name:
-
Automatic Mineral Water Filling Machine
-
OEM:
-
Yes
-
MOQ:
-
1 set
Quick Details
-
Machinery Capacity:
-
1200-3600BPH(Based on 1000ml)
-
Packaging Material:
-
Plastic, Wood, Other
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice, Powder
-
Filling Accuracy:
-
≤±0.5%
-
Voltage:
-
AC220V/380V 50-60HZ(Special customizable), AC220V/380V 50-60HZ(Special customizable)
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Grepack
-
Dimension(L*W*H):
-
2000*1200*2400mm
-
Weight:
-
800 KG, 800kg
-
Certification:
-
CE &ISO
-
name:
-
Automatic Mineral Water Filling Machine
-
OEM:
-
Yes
-
MOQ:
-
1 set

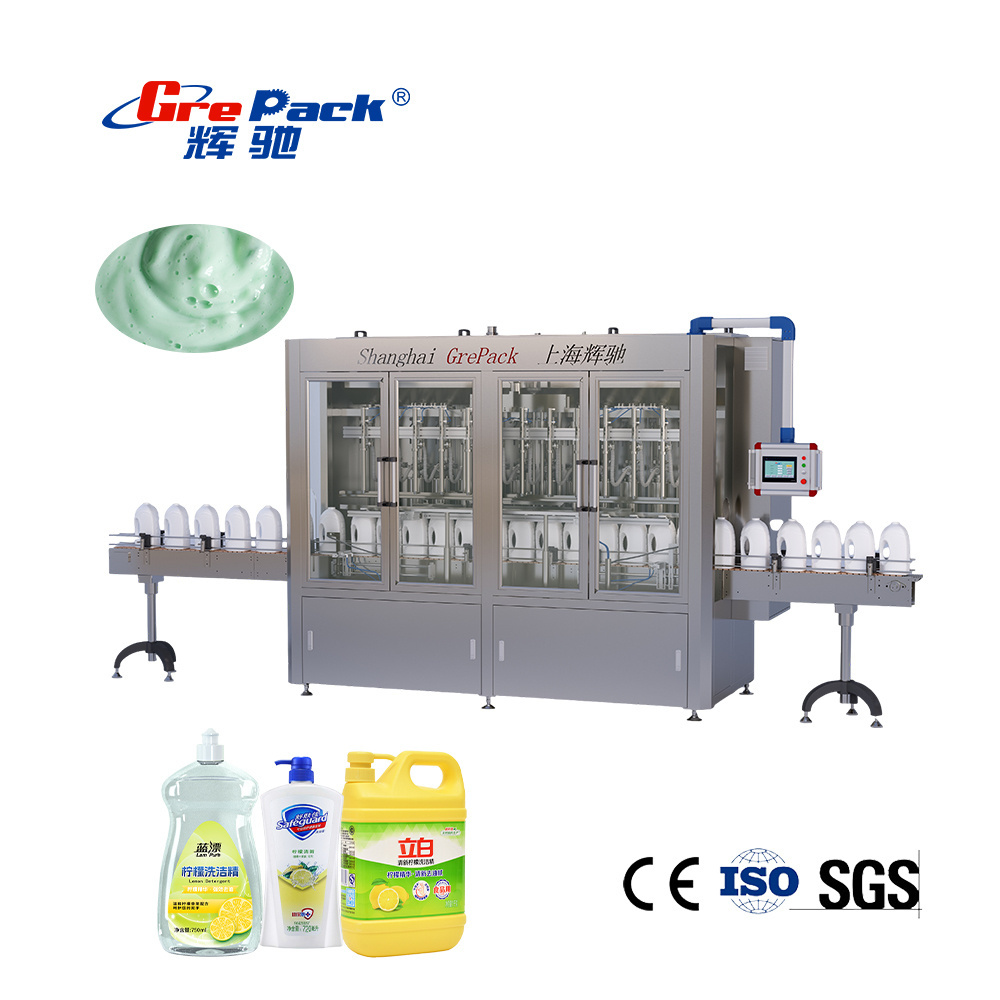

Automatic Anti Foaming Viscosity Liquid Filling Machine .
Automatic filling machine is designed with piston volume filling which controls by servo motor.
Servo motor driven screw rod to make piston move up and down stably, ensuring high filling accuracy and stable capacity.It is widely applied to daily chemical product industry, such as cream , detergent liquid, shampoo, hand soap, dish washing liquid,shower gel and hand sanitizer, soap liquid, disinfectant liquid products and etc.
Servo motor driven screw rod to make piston move up and down stably, ensuring high filling accuracy and stable capacity.It is widely applied to daily chemical product industry, such as cream , detergent liquid, shampoo, hand soap, dish washing liquid,shower gel and hand sanitizer, soap liquid, disinfectant liquid products and etc.
Machine Feature .
1. The machine is made of high-quality stainless steel, which meets the requirements of GMP
2. The reciprocating motion of the piston cylinder is driven by the servo to perform metering and filling;
3. The adjustment of the filling volume can be completed directly by setting it on the touch screen
4. PLC control, touch screen operation setting, has the characteristics of stable and reliable performance, high filling
accuracy,strong adaptability, simple operation and convenient maintenance;
5, The seal of nozzle & piston is specially selected based on filled material for wearing resistance , long life time use and high accuracy
2. The reciprocating motion of the piston cylinder is driven by the servo to perform metering and filling;
3. The adjustment of the filling volume can be completed directly by setting it on the touch screen
4. PLC control, touch screen operation setting, has the characteristics of stable and reliable performance, high filling
accuracy,strong adaptability, simple operation and convenient maintenance;
5, The seal of nozzle & piston is specially selected based on filled material for wearing resistance , long life time use and high accuracy
|
Model
|
GP-4
|
GP-6
|
GP-8
|
GP-10
|
GP-12
|
||||
|
Filling Range
|
30-125ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
|
|
|
|
|
||||
|
Filling Nozzle
|
4
|
6
|
8
|
10
|
12
|
||||
|
Filling Capacity
(Based on 1000ml) |
≤ 1200 BPH
|
≤ 1800 BPH
|
≤2400 BPH
|
≤3000 BPH
|
≤3600 BPH
|
||||
|
Filling Accuracy
|
≤±0.5%
|
|
|
|
|
||||
|
Voltage
|
AC220V/380V 50-60HZ (Special customizable)
|
|
|
|
|
||||
|
Power
|
2.0-3.5KW
|
2.0-4.0KW
|
2.5-4.5KW
|
3.0-5.5KW
|
3.0-6.5KW
|
||||
|
Air Pressure
|
0.5-0.8Mpa
|
|
|
|
|
||||
