Laigong's special forklift cylinder, with thickened chrome plating and special seals, not only ensures the tightness, but also extends the service life of the cylinder.
- Product Details
- {{item.text}}
Quick Details
-
Fork Length:
-
1220mm
-
Fork Width:
-
350mm
-
Overall Dimensions:
-
4200*1800*2380
-
Weight (KG):
-
5500 kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lgcm
-
Fork Length:
-
1220mm
-
Fork Width:
-
350mm
-
Overall Dimensions:
-
4200*1800*2380
-
Weight (KG):
-
5500 kg

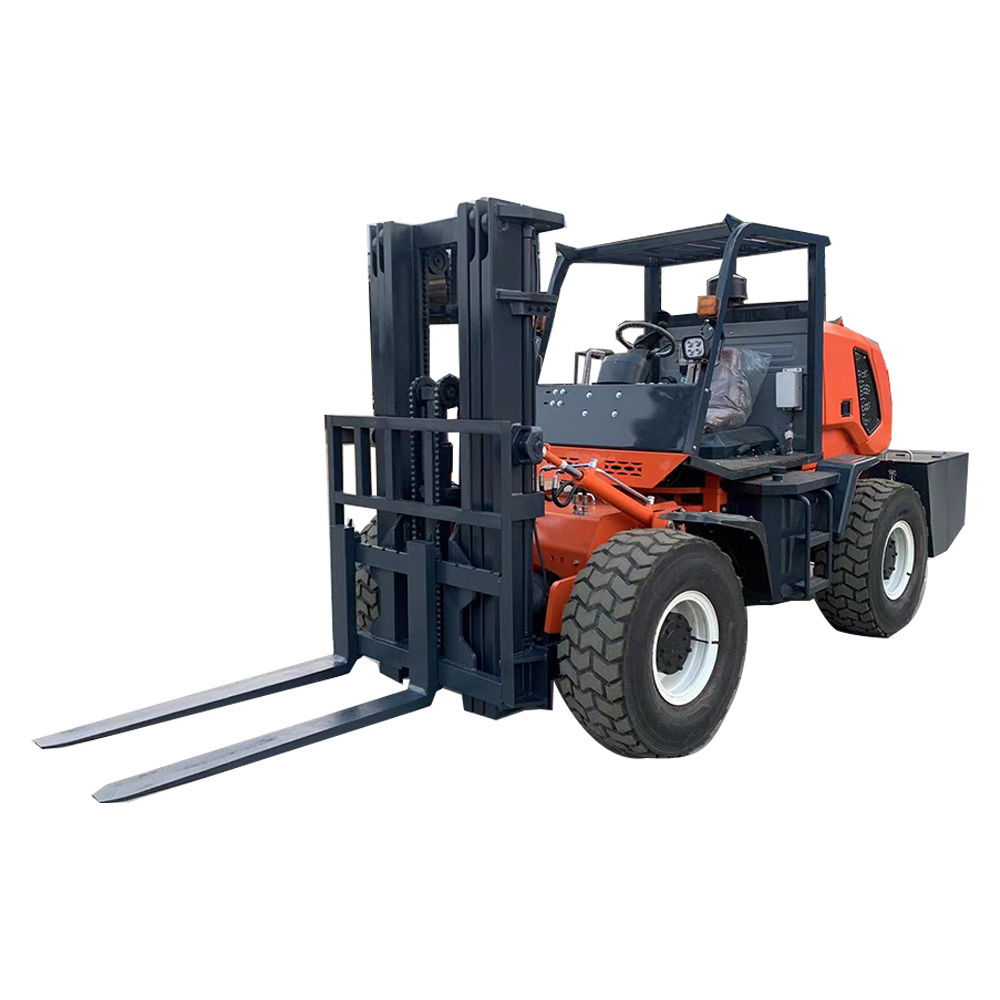

The LAIGONG all-terrain forklift is upgraded and developed on the basis of the internal combustion diesel forklift. It adopts a number of new technology designs, and through technological innovation, comprehensively improves the reliability, safety, appearance, comfort, easy maintenance and other performance of the vehicle.
Product Description
|
Model
|
|
LG15F
|
LG30F
|
LG35F
|
|||
|
Fuel type
|
|
Diesel
|
Diesel
|
Diesel
|
|||
|
Load capacity
|
|
1500
|
3000
|
3500
|
|||
|
Engine
|
|
130 bridge weighted steel bridge
|
small wheel side weighted cast steel
bridge
|
small wheel side
weighted cast steel
bridge
|
|||
|
Lift height
|
|
3000
|
3000
|
3000
|
|||
|
Tyres
|
|
Semi-solid 10.00-16
|
Steer wire tire 20.5/70-16
|
Steer wire tire
20.5/70-16
|
|||
|
Fork dimension
|
1220
|
1220
|
1220
|
|
|||
|
Mast width
|
|
148
|
160
|
160
|
|||
|
Min.turning radius
|
|
4600
|
4700
|
4700
|
|||
|
Min. ground clearance
|
|
250
|
250
|
250
|
|||
|
Frame articulation
|
|
front 200mm,rear 150mm
|
front 300mm, rear 250mm
|
front 300mm rear
250mm
|
|||
|
Front tilt angle
|
|
14°
|
14°
|
14°
|
|||
|
Max lift speed
|
|
380
|
380
|
350
|
|||
|
Gearbox
|
|
265 gearbox
|
265 double high low speed gearbox
|
265 double high
low
s
peed gear box
|
|||
|
Max. gradeability
|
|
35
|
35
|
35
|
|||
|
Mast height
|
|
2220
|
2240
|
2240
|
|||
|
Total length
|
|
3100
|
1300
|
2300
|
|||
|
Total width
|
|
1300
|
1850
|
1800
|
|||
|
Total height
|
|
2300
|
2500
|
2380
|
|||
Hydraulic cylinder
Frame
Reinforced one-piece body Cast iron rear counterweight, hydraulic fuel tank, diesel tank built-in for heat dissipation and protection
Cooling system
High efficient cooling system for smooth operation under high temperature status
Forklift Accessories
Side shift
Fork tooth adjuster
Engineering bucket
Tilting fork
Upping fork
rotating fork
Carton clamps
Tyre clamp
Paper roll clamp
Related Products
LG15F
Engine:Yunnei 490/42KW
Load Capacity:1500KGS
Overall Dimension:3100*1300*2300mm
Overall Dimension:3100*1300*2300mm
LG30F
Engine:Yunnei 490/42KW
Load Capacity:3000KGS
Overall Dimension:4160*1850*2500mm
Overall Dimension:4160*1850*2500mm
LG30 wide view
Engine:Yunnei 490/543W
Load Capacity:3000KGS
Overall Dimension:4030 *1800*2300mm
Overall Dimension:4030 *1800*2300mm
LG35F
Engine:Yunnei 490T/58KW
Load Capacity:3500KGS
Overall Dimension:4200*1800*2380mm
Overall Dimension:4200*1800*2380mm
LG40F
Engine:Yunnei 4100/65KW
Load Capacity:4000KGS
Overall Dimension:4150*1945*2450mm
Overall Dimension:4150*1945*2450mm
LG100F
Engine:Xichai 6110/132KW
Load Capacity:10000KGS
Overall Dimension:5400*2600*3500mm
Main Categories
LAIGONG all-terrain forklift is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
