Quick Details
-
Material:
-
ABS
-
Weight:
-
3kgs
-
Size:
-
240*195*80cm
-
Power:
-
15W
-
Productivity:
-
4.4-92.5mg/L adjustable with oxygen
-
Weight (KG):
-
3 kg
-
Oxygen Flow:
-
1/16L/min ----1L/min recommended
-
Generating method:
-
German corona discharge
-
Continuous operation:
-
24 h/day with inside cooling system
-
Cooling system:
-
air cooling
-
Input voltage:
-
100-240V AC
-
Power input:
-
15W
-
Size (L x W x H):
-
240 x 195 x 80 mm
-
Application:
-
Medical ozone treatment
-
After Warranty Service:
-
Video technical support
Quick Details
-
Core Components:
-
ozone module
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AQUAPURE Germany
-
Material:
-
ABS
-
Weight:
-
3kgs
-
Size:
-
240*195*80cm
-
Power:
-
15W
-
Productivity:
-
4.4-92.5mg/L adjustable with oxygen
-
Weight (KG):
-
3 kg
-
Oxygen Flow:
-
1/16L/min ----1L/min recommended
-
Generating method:
-
German corona discharge
-
Continuous operation:
-
24 h/day with inside cooling system
-
Cooling system:
-
air cooling
-
Input voltage:
-
100-240V AC
-
Power input:
-
15W
-
Size (L x W x H):
-
240 x 195 x 80 mm
-
Application:
-
Medical ozone treatment
-
After Warranty Service:
-
Video technical support
Product Description

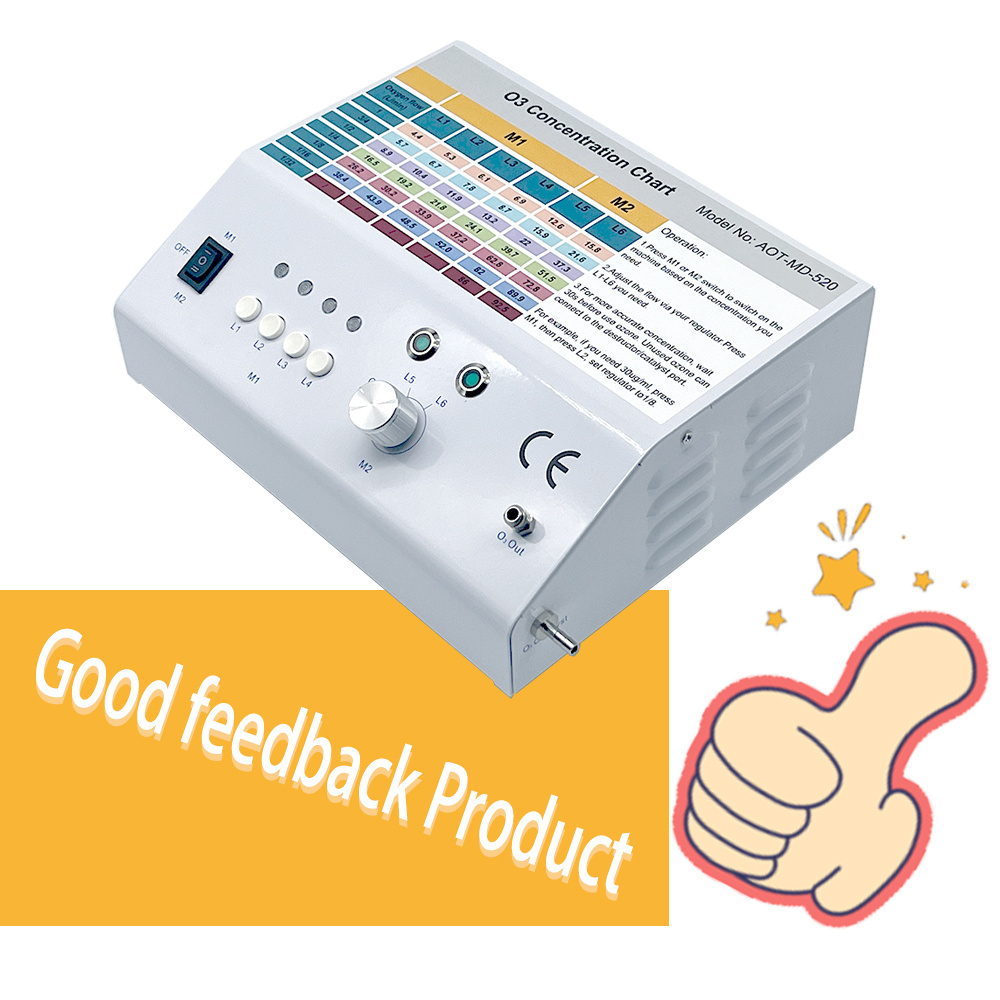

The AQUAPUREOZONE portable ozone therapy machine was using German latest corona discharge technology. To ensure the machine with a high performance, we use accurate quartz tube and Titanium electrode for the generator part, this is a small compact & economic design, easy operating and various concentration from 4-95 μg/ml, user can choose what concentration they would need to have according to our machine's capacity. There are 6 switches are available, and it can deliver pure ozone from low to high concentrations (4-95 ug/mL) for different therapy applications.Specially, it has been built-in both the powerful ozone destructor and ozone fan and makes the machine very convenient to use.
|
AOT-MD-520 Ozone Generator Machine Specification
|
|
|
|
Ozone concentration
|
4-95 μg/ml with oxygen source (adjustable)
|
|
|
Oxygen flow
|
1/32-1L/min
|
|
|
Continuous operation
|
24 h/day with inside cooling system
|
|
|
Cooling system
|
Air cooling,built-in a 15 CFM fan
|
|
|
Ozone generating method
|
German coronadischarge
|
|
|
Input voltage
|
110V-220VAC
|
|
|
Power
|
15W
|
|
|
Operating temperature
|
-10 deg C°+40 deg C°
|
|
|
Storage temperature
|
-20 deg C°+70 deg C°
|
|
|
Size(L×W×H)
|
240×195×80mm
|
|
Application
1. It could be used to treat infections, wounds anddisinfect extra corporeal blood samples of HIV.
2. It could also be used for Dental Hygiene and blood purification.
3. It could be used to treat diseases such as diabetes, lumbar disc herniation and etc.
4. It is widely used in ozone therapy and ozone treatment home and abroad.
