18000 PSI High Pressure Epoxy Grouting Polyurethane Injection Pump

18000 PSI High Pressure Epoxy Grouting Polyurethane Injection Pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $125

≥10 Sets

US $105

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: RUTH

Name:: Epoxy Grout Injection Pump

Usage:: Injection Resin

Application Material:: PU injection resin, Epoxy Resin

Power:: Drill Drive

Working Pressure:: 20 to 40 MPa

Material Of Main Body:: Airplane use Aluminium

Application Method:: High Pressure

Injection Flow:: Adjust by adjusting drill speed

Flow Speed:: above 1 L /Minute

Safe range of high pressure hose:: less than 10000 psi

Quick Details

Weight (KG):: 7

Marketing Type:: Hot Product 2023

Place of Origin:: Shanghai, China

Brand Name:: RUTH

Name:: Epoxy Grout Injection Pump

Usage:: Injection Resin

Application Material:: PU injection resin, Epoxy Resin

Power:: Drill Drive

Working Pressure:: 20 to 40 MPa

Material Of Main Body:: Airplane use Aluminium

Application Method:: High Pressure

Injection Flow:: Adjust by adjusting drill speed

Flow Speed:: above 1 L /Minute

Safe range of high pressure hose:: less than 10000 psi

Product Overview

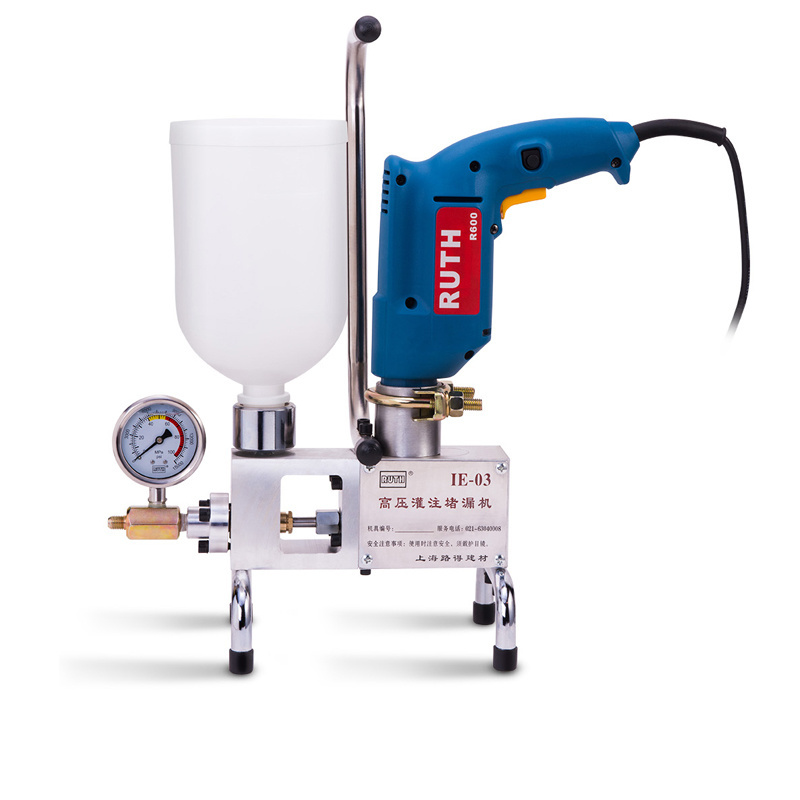

High Pressure Portable Injection Grouting Pump

Basic edition IE-03 is most popular among Customers. Professional machine for hydrophilic polyurethane (WPU), hydrophobic polyurethane (OPU), and epoxy resin injection. The pressure which is created can inject materials into 0.02mm hairline cracks. It is widely used in waterproof, water leakage seal, and concrete crack repair. IEs are well known for their light weight, small size, simple operate and maintain, and long product life. It is the best choice for stanch workers.

FEATURES AT A GLANCE

ONE PIECE ALUMINUM BODY

LIGHT WEIGHT

SIMPLE OPERATION

LONG LIFE USE

EASY MAINTENANCE

Wearable Piston Inside

Anti-Pressure switch valve

Coupler with good hardness 4-jaws

PRODUCT SPECIFICATIONS

No	Item	Data	Note : for high pressure hose, have several types for optional
1	Maximum Output Pressure	70MPa / 10,000 Psi
2	Working Pressure	20 MPa to 40 MPa
3	Pressure of Restarting	Less than 20 MPa / 2,900 Psi
4	Safe range of High-Pressure Hose	Less than 70 MPa / 10,000 Psi
5	Safe Range of Switch Valve	Less than 50 MPa / 7,250 Psi
