Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongnaer/OEM
-
Model Number:
-
K603-4C-5MP
-
Product name:
-

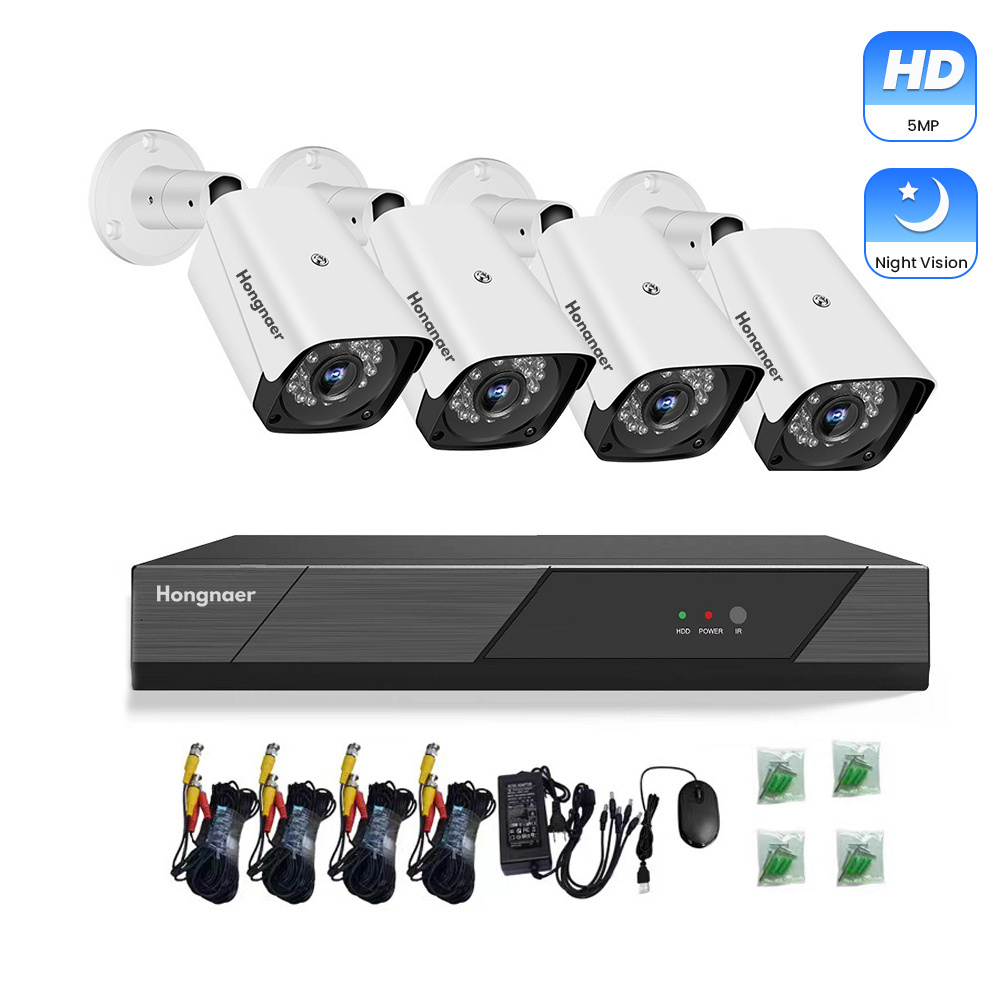

AHD DVR CCTV Camera Set
-
Lens:
-
3.6mm
-
APP:
-
XMeye Pro/Tseye
-
Storage:
-
Max 8TB 3.5inch HDD
-
Day& Night:
-
IR-CUT
-
Feature:
-
AI motion detection
-
Audio:
-
One-Way Voice
-
Intelligent Analysis:
-
Face detection
-
Channel:
-
4 Channel DVR
Quick Details
-
Network:
-
AHD
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Special Features:
-
NIGHT VISION, One-way Audio, Motion Detection, Waterproof / Weatherproof, Vandal-proof, Face detection
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongnaer/OEM
-
Model Number:
-
K603-4C-5MP
-
Product name:
-
AHD DVR CCTV Camera Set
-
Lens:
-
3.6mm
-
APP:
-
XMeye Pro/Tseye
-
Storage:
-
Max 8TB 3.5inch HDD
-
Day& Night:
-
IR-CUT
-
Feature:
-
AI motion detection
-
Audio:
-
One-Way Voice
-
Intelligent Analysis:
-
Face detection
-
Channel:
-
4 Channel DVR
Recommend Products
Product Description
|
AHD Camera Specification
|
|
|
|
|
system structure
|
Embedded RTOS design, dual-core 32-bit DSP
|
|
|
|
sensor
|
5MP 1/2.7" CMOS sensor, color 0.1Lux@F1.2, black and white 0.01Lux@F1.2
|
|
|
|
Video processing
|
H.264encoding, dual stream, AVI format; stream 0.1M~6Mpbs adjustable
|
|
|
|
Image output
|
Main stream: 1920*1080@12fps；auxiliary stream: 640*360@12fps
|
|
|
|
shutter
|
1/50 (1/60) second to 1/10000 second
|
|
|
|
Lens
|
3.6mm
|
|
|
|
Day and night conversion mode
|
Support IR-CUT, IR-CUT coil internal resistance 20 ohms, power-on time is less than 200ma, voltage 3.5V-6V
|
|
|
|
Noise reduction
|
Support 2D/3D noise reduction
|
|
|
|
Wide dynamic
|
Support wide dynamic
|
|
|
|
Auto iris
|
no
|
|
|
|
Audio
|
no
|
|
|
|
reliability
|
Comprehensive lightning protection, in line with national and international standards; 7*24 hours 65℃ high temperature test is
stable and reliable |
|
|
|
ONVIF
|
not support
|
|
|
|
power supply
|
Power supply: DC12V
|
|
|
|
4CH DVR Specification
|
|
|
|
|
operating system
|
Embedded LINUX operating system
|
|
|
|
system resource
|
Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-channel multi-person network operation,
USB backup |
|
|
|
Operation interface
|
16-bit true color graphical menu operation interface, support mouse operation
|
|
|
|
Screen display
|
1/4 screen
|
|
|
|
Video access mode
|
4CH 5MN
|
|
|
|
Image decoding
|
H.265 AHD/CVI/TVI/CVBS
|
|
|
|
Monitor quality
|
960*1080@12fps
|
|
|
|
|
(Support 2MP/1MP/1.3MP Coaxial Camera)
|
|
|
|
Playback quality
|
960*1080
|
|
|
|
Decoding ability
|
4CH 5M/3M/2M/1M
|
|
|
|
VR
|
not support
|
|
|
|
Humanoid face detection
|
Support (rely on front-end camera)
|
|
|
|
Audio compression
|
G.711A
|
|
|
|
Language intercom
|
stand by
|
|
|
|
Video mode
|
Manual>Alarm>Motion Detection>Timing
|
|
|
|
Local playback
|
2M/1M
|
|
|
|
Video query
|
Time point search, calendar search, event search, channel search, face search
|
|
|
|
Video save
|
Local hard disk(default not including HDD), network
|
|
|
|
Backup method
|
Network backup, USB mobile hard disk, USB burning, SATA burning
|
|
|
|
Video output
|
1 HDMI high-definition output, 1 VGA output
|
|
|
|
Audio I/O
|
1/1 (3.5MM interface)
|
|
|
|
Alarm I/O
|
0/0
|
|
|
|
Network Interface
|
1 RJ45 10M/100M adaptive Ethernet port, 4/8 channel wifi
|
|
|
|
USB interface
|
2 USB2.0 ports (reserve 1 front port)
|
|
|
|
Hard disk interface
|
1 SATA interface (each supports up to 14T)
|
|
|
|
ESATA
|
no
|
|
|
|
Serial interface
|
no
|
|
|
|
ONVIF
|
Optional support
|
|
|
|
power supply
|
12V/2A
|
|
|
|
Power consumption
|
<10W (without hard disk)
|
|
|
|
working environment
|
Temperature: 0℃-＋55℃, humidity: 10%-90% RH, atmospheric pressure: 86kpa-106kpa
|
|
|
