Quick Details
-
Dimension(L*W*H):
-
73*53*64cm
-
Weight:
-
40
-
Name:
-
paraffin wax melter
-
Material:
-
304 Stainless Steel
-
Usage:
-
wax melting
-
type:
-
automatic
-
heating:
-
electric
-
fuel:
-
conduction oil
-
press type:
-
hydraulic
-
power:
-
9kw
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Newest
-
Production Capacity:
-
50kg, 50kg tp 500kg
-
Dimension(L*W*H):
-
73*53*64cm
-
Weight:
-
40
-
Name:
-
paraffin wax melter
-
Material:
-
304 Stainless Steel
-
Usage:
-
wax melting
-
type:
-
automatic
-
heating:
-
electric
-
fuel:
-
conduction oil
-
press type:
-
hydraulic
-
power:
-
9kw
-
After Warranty Service:
-
Video technical support
Best selling stainless steel wax heater/melting wax machine/candle wax melter
Products Description
Features of wax melter
Using the heat conduction oil heating, electric heating tube to heat conduction oil heat melted paraffin wax, wax melting pot is equipped with temperature control instrument, indicator lights, AC contactor and paraffin wax temperature heat transfer rod device, in order to realize the automatic temperature control.
Structure of wax melter
wax-melting pot is composed of three layers stainless steel plate, heat conduction layer and insulation layer plate (tank),
containing wax oil switch and put the heat conduction oil mouth, can according to user requirements assembly 380 v or 220 v electrical wire.
containing wax oil switch and put the heat conduction oil mouth, can according to user requirements assembly 380 v or 220 v electrical wire.
Wax Melter Specification
|
Model
|
Capacity
|
Volume
|
Power
|
Inner size
|
|
NT-W25
|
25KG
|
33L
|
3KW
|
Φ35*35 cm
|
|
NT-W50
|
50KG
|
70L
|
6KW
|
Φ45*45 cm
|
|
NT-W80
|
80KG
|
100L
|
6KW
|
Φ50*50 cm
|
|
NT-W100
|
100KG
|
130L
|
6KW
|
Φ55*5 cm
|
|
NT-W150
|
150KG
|
170L
|
12KW
|
Φ60*60 cm
|
|
NT-W200
|
200KG
|
270L
|
12KW
|
58*58*80 cm
|
|
NT-W250
|
250KG
|
324L
|
12KW
|
60*60*90 cm
|
|
NT-W300
|
300KG
|
400L
|
12KW
|
64*64*100cm
|
|
NT-W500
|
500KG
|
640L
|
18KW
|
80*80*100cm
|
|
NT-W1000
|
1000KG
|
1400L
|
30KW
|
100*100*140cm
|
Details Images

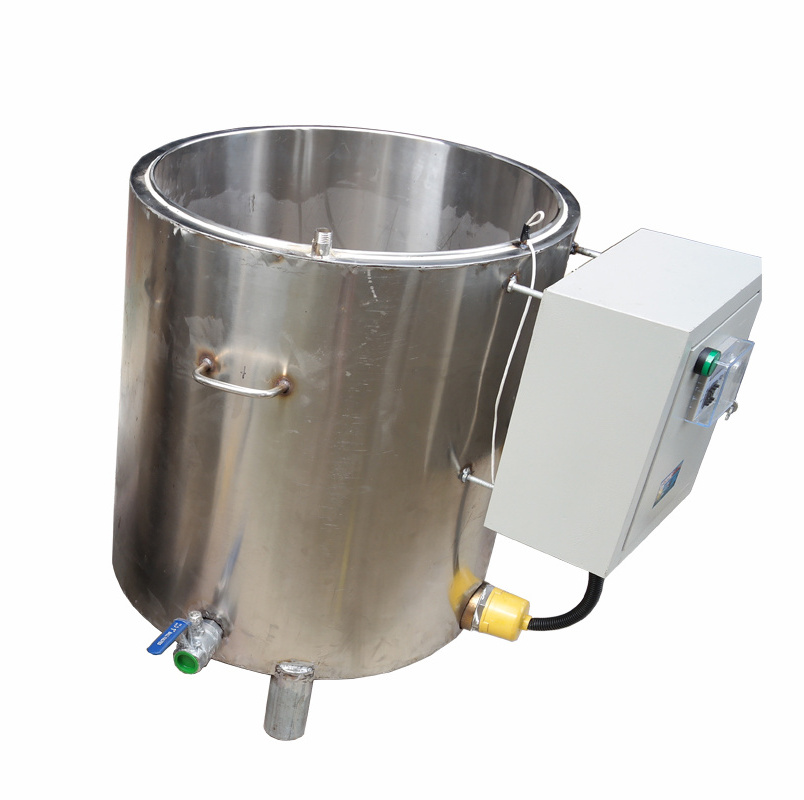

Round tank
Square tank
The melter can equip With stirrer
Detailed Images
Packing&Shipping
Then packed up well with plywooden case
Machine wrap with plastic protect film
